DMTA-20043-01EN [U8778624], Rev. B, May 2013
Overview of the OmniScan SX 27
2.8 Top Panel
• To reduce the risk of electric shock, avoid touching the inner conductor of the
probe connectors. Up to 340 V can be present on the inner conductor of the UT
connectors, and up to 115 V can be present on the PA connector. The warning
symbol near the PA and UT connectors signals this electric shock risk.
• Reinforced insulation must be provided for the probes connected to the
OmniScan SX instrument.
Use only compatible Olympus probes.
There are four connectors located on the top panel of the OmniScan SX (see Figure 2-4
on page 27).

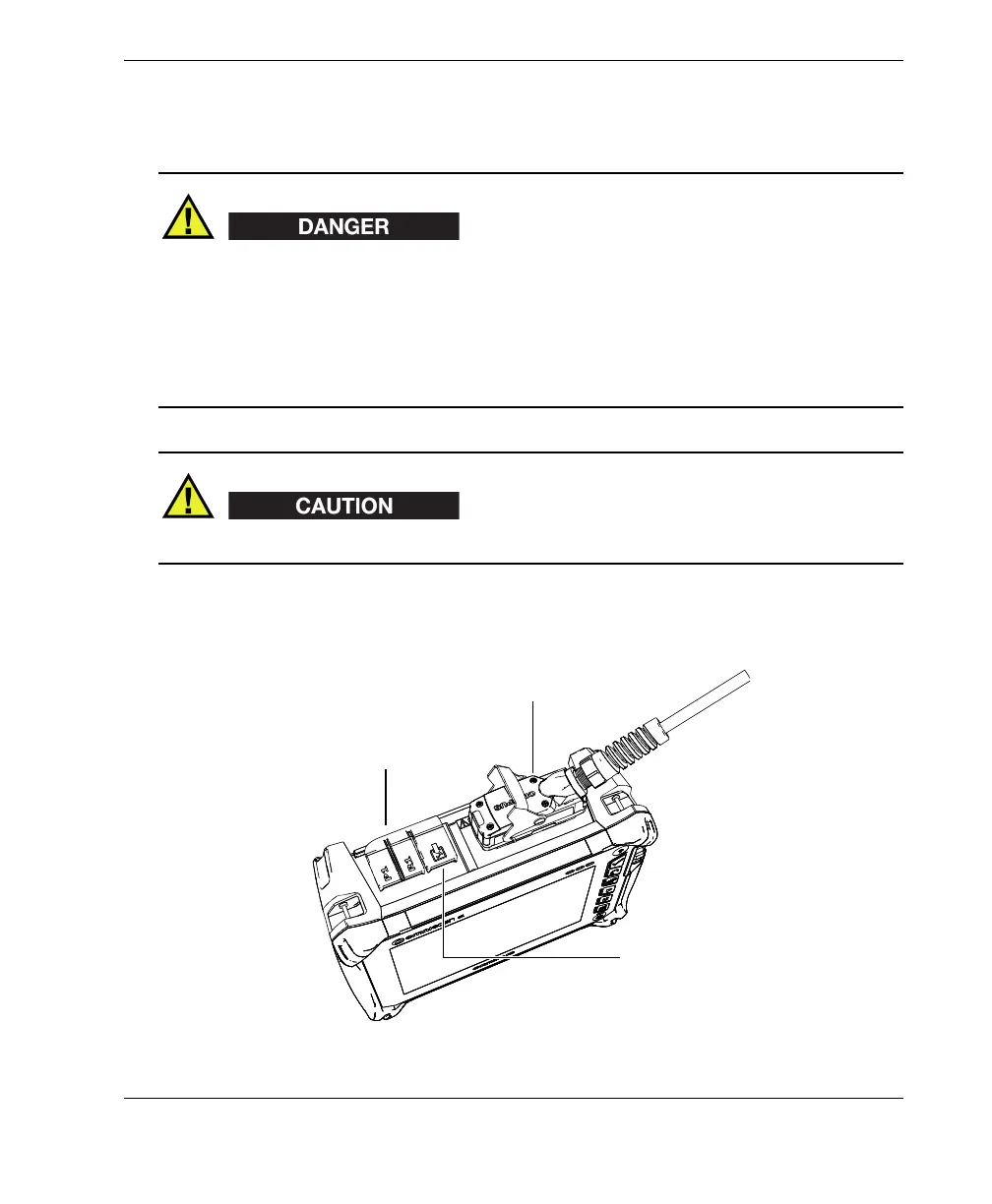

Figure 2-4 Top panel of the OmniScan SX (OmniSX-PA1664PR shown)
Scanner interface
UT connectors
PA connector
