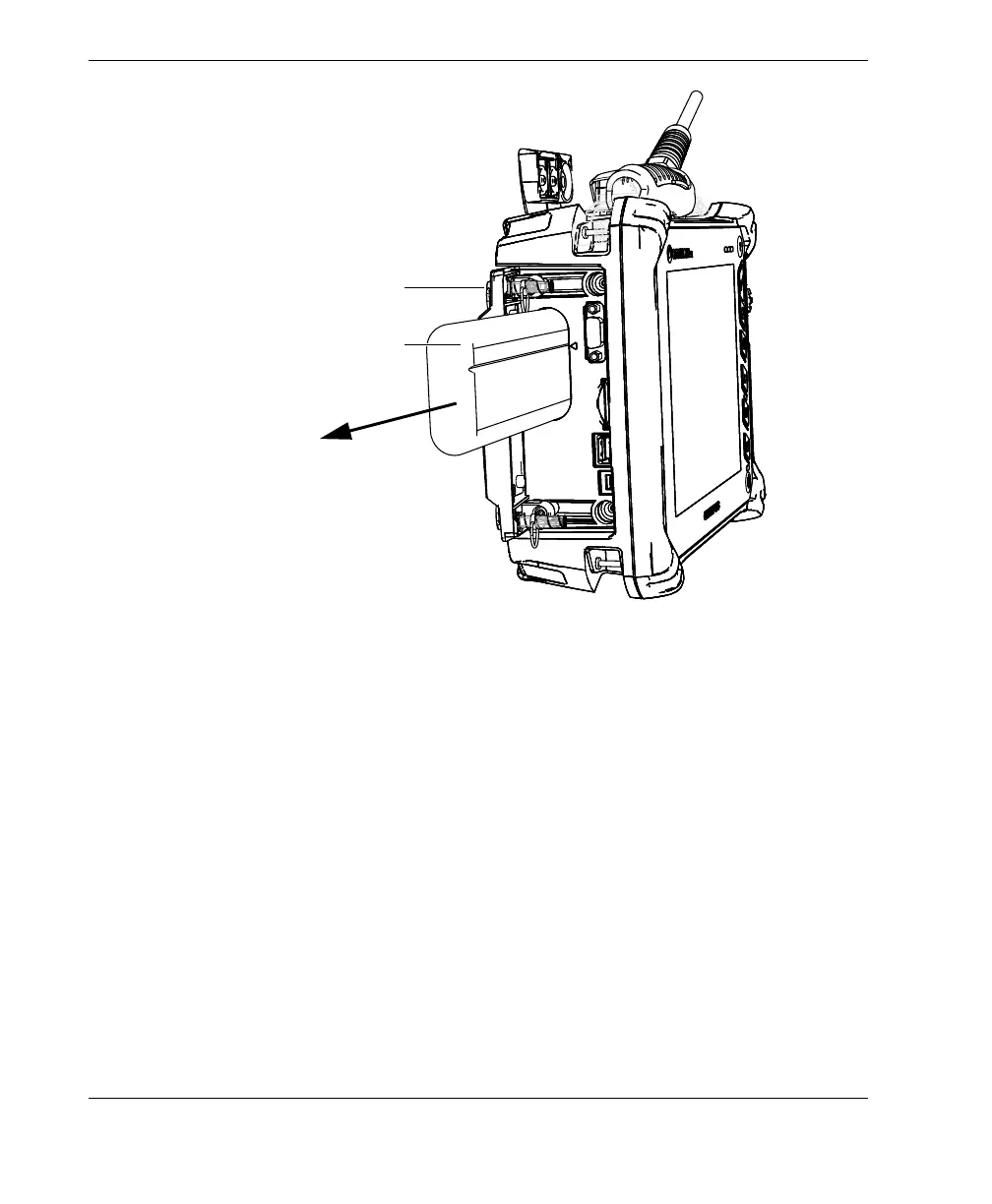

Figure 3-6 Removing a lithium-ion battery
3. Insert a new battery. Make sure that the groove on the battery is aligned with the
small edge inside the battery compartment.
4. Close the battery compartment door.
The battery is recharged inside the OmniScan SX when it is connected to a DC power
adaptor. Connecting an adaptor automatically starts the recharging process. The
battery can also be recharged using an optional external charger.
3.4.2.4 Battery Charging
To charge the OmniScan SX battery
Connect the OmniScan SX to a proper DC power adaptor.
Battery charging is performed as follows:
• When the OmniScan SX is turned off:
Battery compartment door
Lithium-ion battery
