Olympus OmniScan SX - Figure 7-4 the Scanner Interface Adaptor DE-15 Connector (Weld Side); Table 13 Scanner Interface Adaptor Pinout [DE-15 to LEMO]

DMTA-20043-01EN [U8778624], Rev. B, May 2013
Connector References 67
Description
DE-15 connector
Manufacturer, number
Amphenol, 17EHD-015-SAA-000

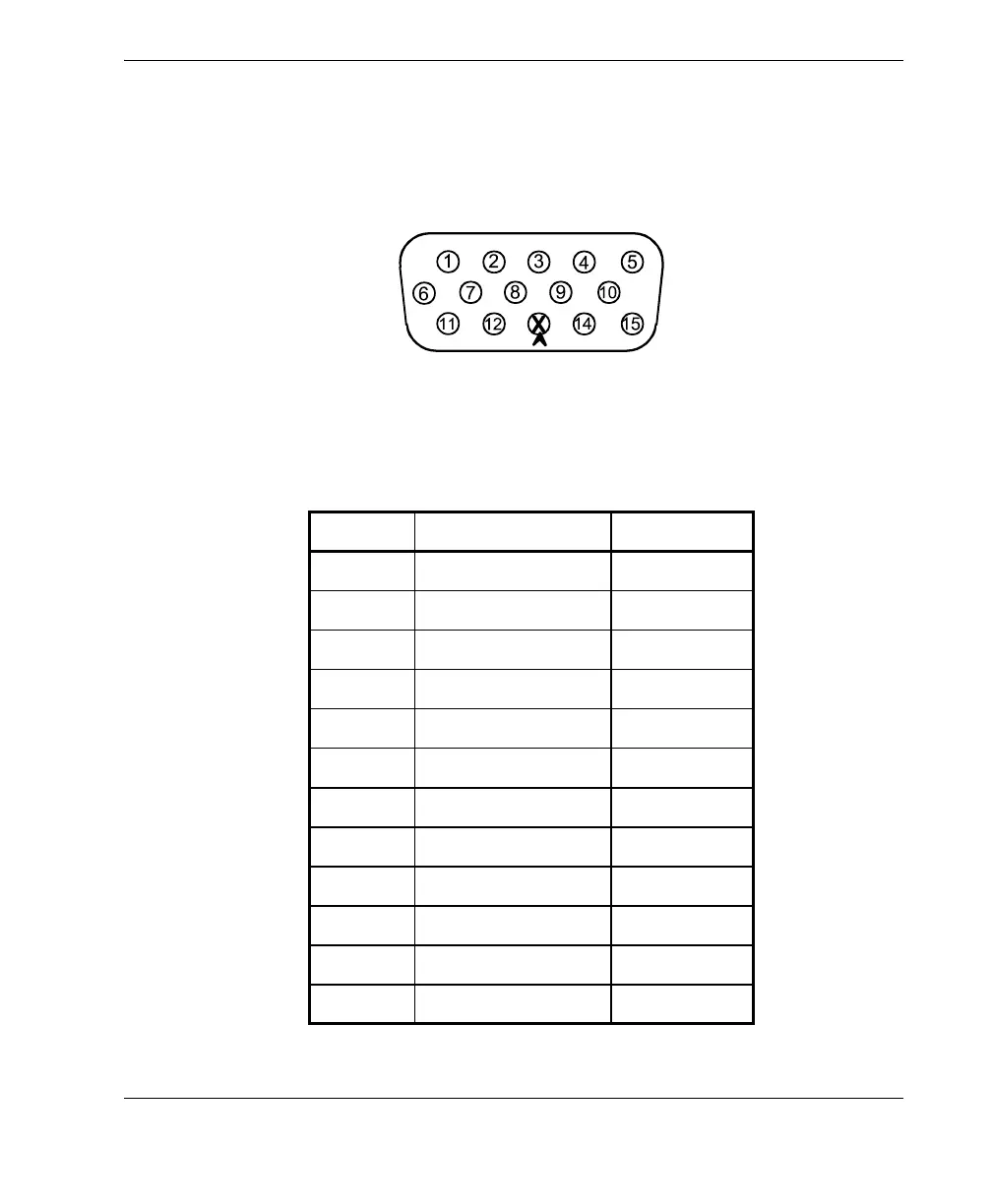

Figure 7-4 The scanner interface adaptor DE-15 connector (weld side)
Table 13 Scanner interface adaptor pinout [DE-15 to LEMO]
LEMO Signal DE-15
1Analog In 4
2+5V 3
3DIN1 1
4DIN2 2
5DIN3 5
6
N.U.
a
7DOUT1 6
8DOUT2 14
9 PHA-1 9
10 PHB-1 10
11 PHB-2 12
12 PHA-2 11
