Overview of the OmniScan SX 25

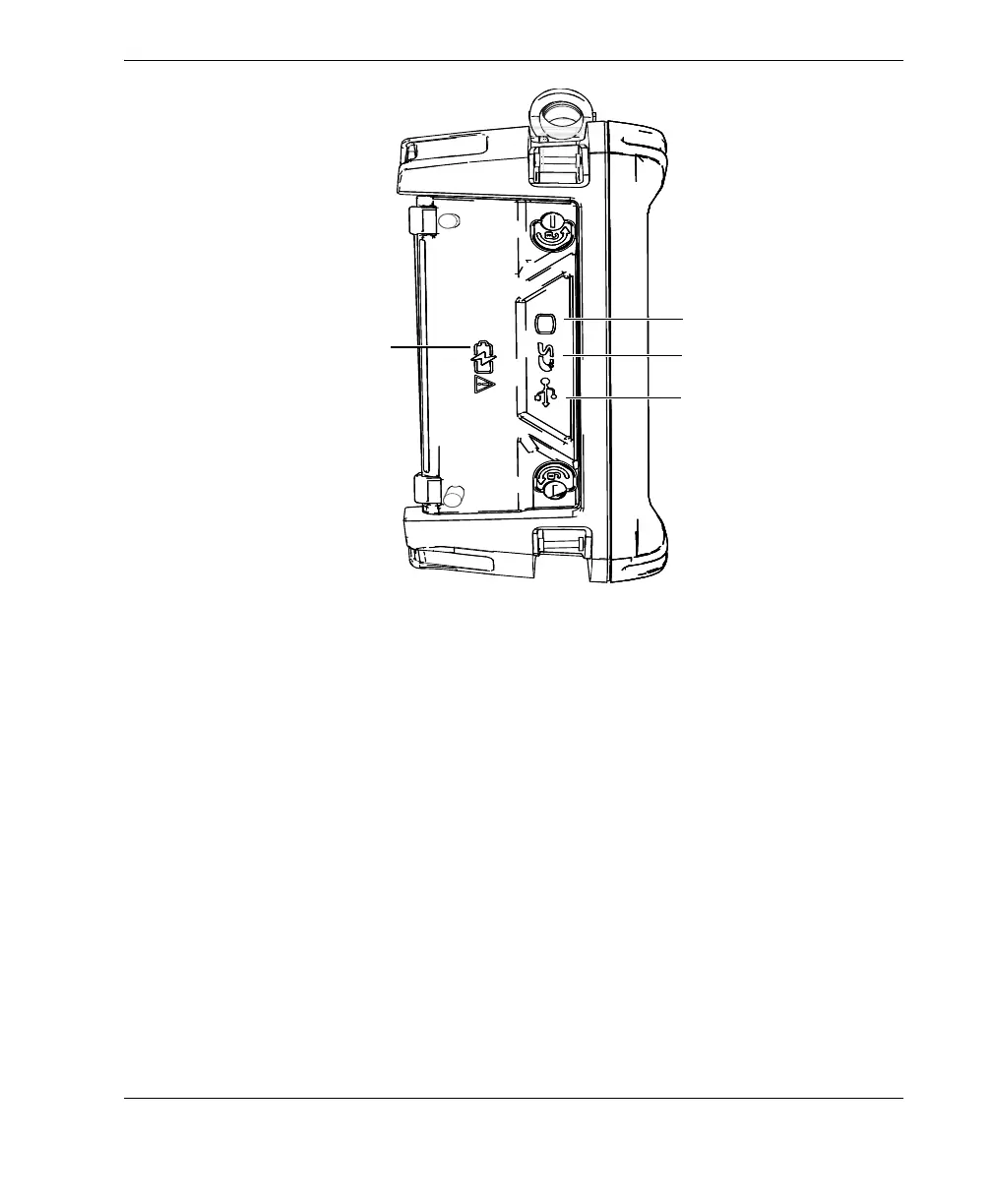

Figure 2-2 Left side panel of the OmniScan SX
Battery compartment door
This door provides access to the battery compartment. Battery replacement is
covered in section 3.4.2.3 on page 39.
SVGA output
An external VGA or SVGA monitor that mirrors the OmniScan SX display may be
connected to this DB-15 port.
Memory card slot
Slot for inserting the Secure Digital High Capacity (SDHC) memory card.
USB ports (2)
The USB ports (see Figure 2-2 on page 25) accommodate USB peripherals such as
external keyboards, mice, storage devices, or printers.
Memory card slot
Battery compartment door
SVGA output connector
USB ports
