Olympus STM7 User Manual

34
5
Switching the light path (MM6-ETR)
6
Erect image monocular observation tube (MM6-EMO)
4

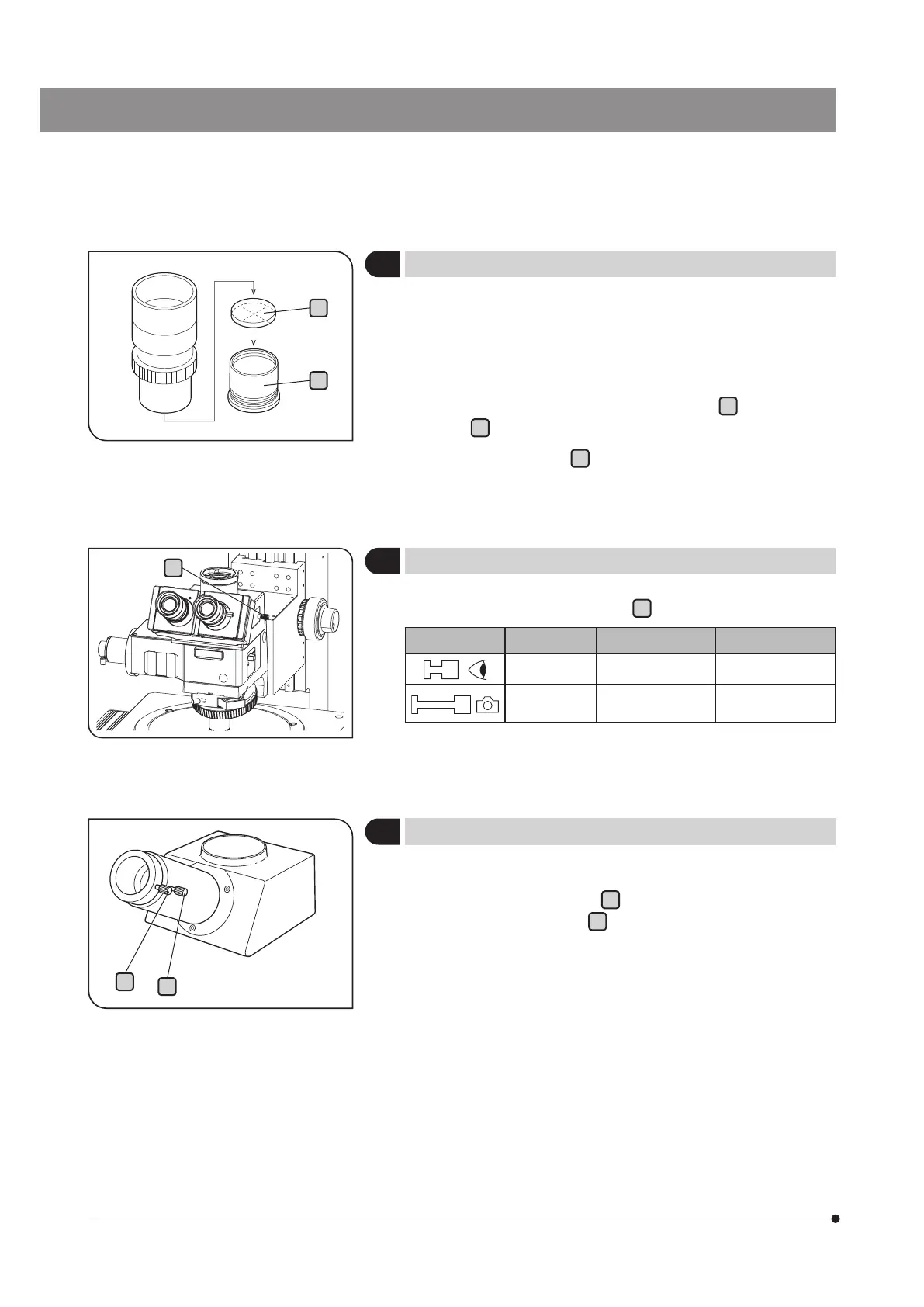

Replacing the eyepiece cross
The cross on each eyepiece sleeve can be replaced except with the
MM6-OCC10X.
The size other than the cross should be diameter of 24 mm and
thickness of 1.5 mm.
To attach a new cross, remove the cross-frame
b
and drop in the
cross
a
so that the side with indications faces downwards.
Attach the cross-frame
b
again before observation.
Slide the light path selector knob
c
to select the desired light path.
Indication Lever Position Light Ratio Purpose
Pushed in 100% observation Observation
Pulled out 100% TV/photo
TV observation,
photomicrography
The MM6-EMO is designed for monocular observation of erect images.
The upper clamping screw
d
is used to clamp the eyepiece and
the lower clamping screw
e
is used to clamp the eyepiece adapter.
b
a
d
e
c
