Olympus STM7 User Manual

83
STM7

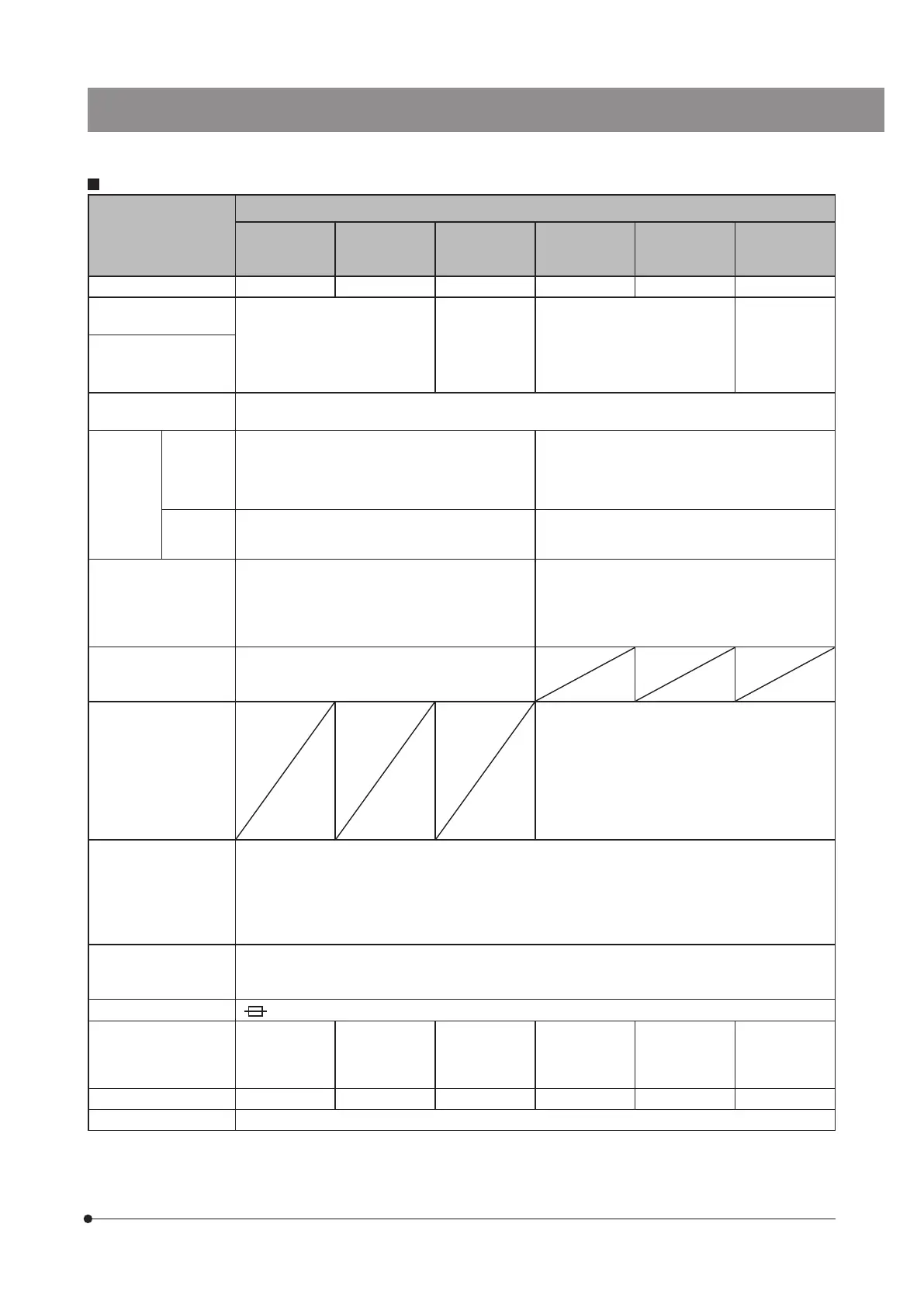

88 Specifications
Frame
Item
Specifications
STM7-SF
(Small manual
frame)
STM7-MF
(Middle manual
frame)
STM7-LF
(Large manual
frame)
STM7-SFA
(Small motorized
frame)
STM7-MFA
(Middle
motorized frame)
STM7-LFA
(Large motorized
frame)
Vertical movement range 175 mm 175 mm 145 mm 175 mm 175 mm 145 mm
Maximum measurable
height
120 mm (with measurement
objective)
*1
, 175 mm (with
metallurgical objective)
*1
90 mm (with
measurement
objective)
*2
,
145 mm (with
metallurgical
objective)
*2
120 mm (with measurement
objective)
*1
, 175 mm (with
metallurgical objective)
*1
90 mm (with
measurement
objective)
*2
,
145 mm (with
metallurgical
objective)
*2
Z-axis measurement
range
Z-axis measurement
resolution
0.1 μm
Z-axis load
weight
Weight of
standard
combination
(Modules
included)
10.6 kg
(Camera, U-TV1XC, STM7-FN, MM6-ETR,
MM6C-RLAS, revolving nosepiece,
5 objectives, filter)
12.8 kg
(Camera, U-TV1XC, STM7-AF, MM6-ETR,
MM6C-RLAS, revolving nosepiece, 5 objectives)
Maximum
loading
weight
11 kg
*3
15 kg
*3
Z-axis drive method Manual coaxial fine/coarse focusing knobs
Reference movement distance per turn of fine
focusing knob: 0.2 mm
Reference movement distance per turn of coarse
focusing knob : 36.7 mm
Motorized
Hand switch The operations are available at hand by using 11
buttons, e.g. LED SEL buttons, counter data reset
buttons, etc.
Focus controller · The operations are available at hand by using
17 buttons, e.g. FOCUS button, AF START/STOP
button, etc and fine/coarse focusing knob.
· Coarse movement speed : 8 mm/sec. (max.)
· Movement distance (guide for per turn) of fine/
coarse focusing knob can be selected from 4
values:
800 μm, 400 μm, 100 μm, 50 μm
Transmitted light
illumination
· Light guide : Green LED for transmitted light illumination
Dominant wavelength: Max:550 nm, Min:520 nm
Dimensions: Ø24x81.7 mm (cable length 1500 mm)
Weight: 80 g
Average life: Approx. 30000 hours (Ambient temperature 20 °C, light
intensity level 50%)
Rating STM7-CB/STM7-CBA: Refer to the instruction manual provided with the control box STM7-CB/STM7-
CBA.
MM6-ILPS-2: Refer to the instruction manual provided with the power supply unit MM6-ILPS-2.
Applicable fuses
T5A(H)250V (LITTELFUSE 0215005.MXP)
Dimensions (between
center positions of
axes of stage)
427(W)x547(D)
x651(H) mm
(When combined
with STM7-CS100)
606(W)x727(D)
x651(H) mm
(When combined
with STM7-CS200)
805(W)x1025(D)
x684(H) mm
(When combined
with STM7-CS300)
427(W)x547(D)
x811(H) mm
(When combined
with STM7-CS100)
606(W)x727(D)
x811(H) mm
(When combined
with STM7-CS200)
805(W)x1025(D)
x844(H) mm
(When combined
with STM7-CS300)
Frame weight 51.8 kg 77.1 kg 150.5 kg 53.8 kg 78.6 kg 152 kg
Control box weight Approx. 4.9 kg (STM7-CB) / Approx. 5.4 kg (STM7-CBA)
*1 When STM7-SF/STM7-SFA is combined with STM7-CS50, subtract 15mm.
*2 The height of the specimen which can be placed at the position more than ±180 mm farther
from the center of measurement (light axis) in the X- or Y-axis direction is 100 mm or less.
*3 If you want to load those other than the standard combinations, contact Olympus.
