66
Fully loosen the tube clamping screw
g
using the Allen screwdriver
provided with the microscope frame.
} When using the autofocus unit STM7-AF, fully loosen the tube
clamping screw of the autofocus unit using the Allen screwdriver
provided with the microscope frame.
Fit the round dovetail at the bottom of the observation tube
h
into
the mount on the reflected light arm.
} When using U-TLU, make the positioning reticle facing the front.
Tighten the tube clamping screw using the Allen screwdriver provided
with the frame.
When using the eyepoint adjuster
} Only for the large frame STM7-LF/STM7-LFA, the eye point adjuster
U-EPA2 can be attached to the microscope up to 2 levels in the
same way as other intermediate tubes.
1
2
3
g
h
11

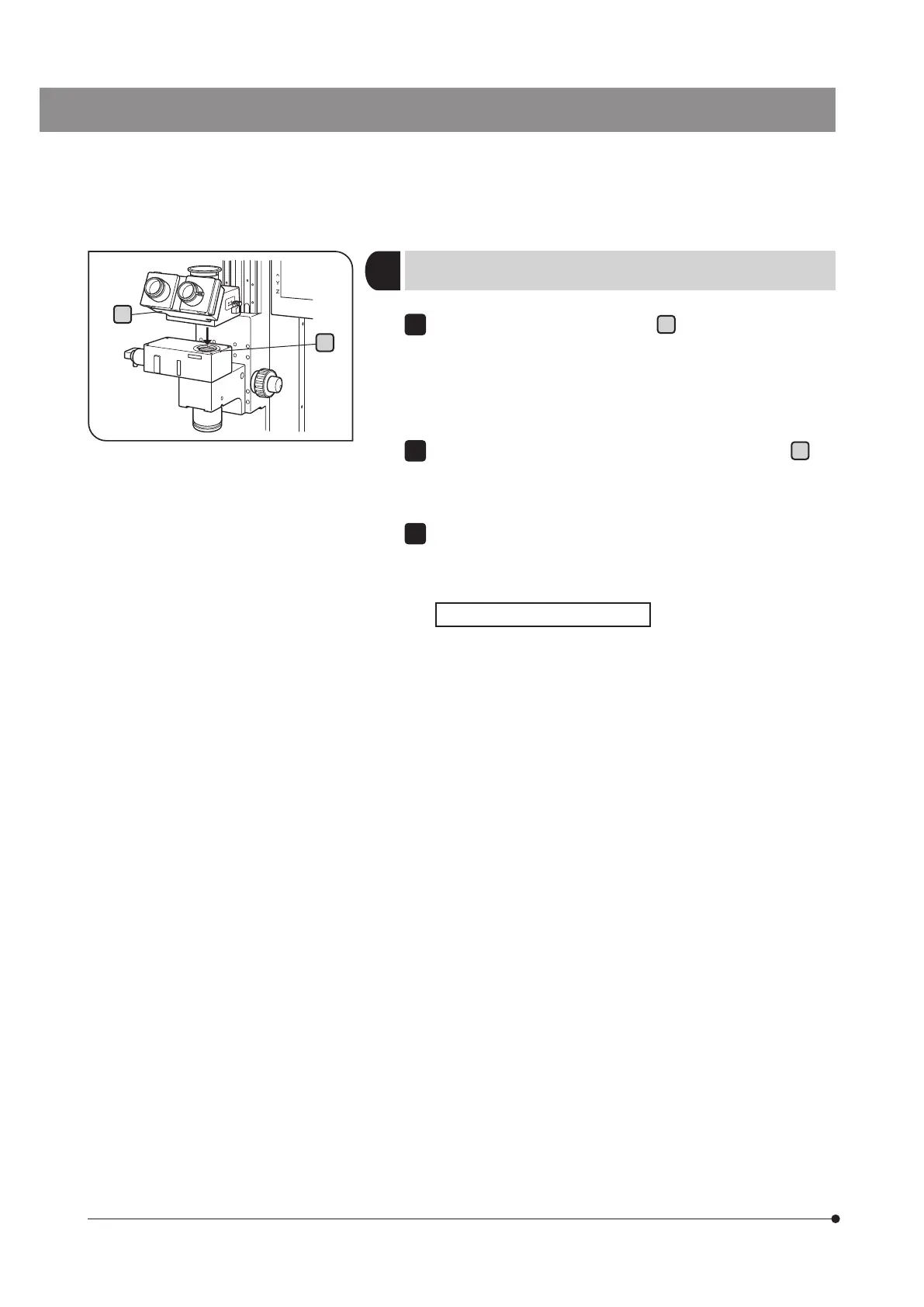

Mounting the Observation Tube (MM6-EMO, MM6-
ETR, U-TLU)
