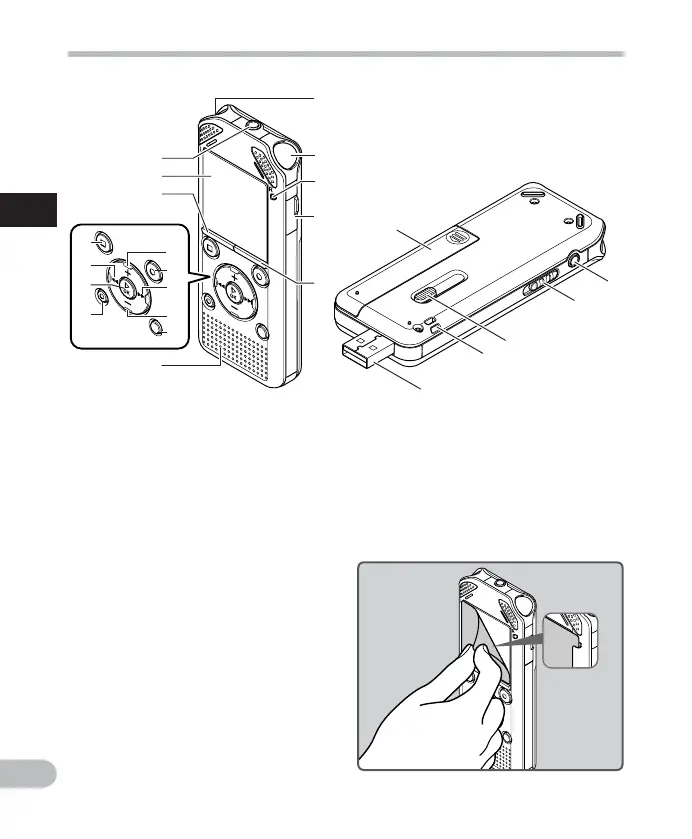

Identification of parts
Identification of parts
1 Built-in stereo microphone (L)
2 Built-in stereo microphone (R)
3 LED indicator light (LED)
4 Card cover
5
LIST button
6
MIC (Microphone) jack
7 Display (LCD panel)
8
MENU button
9
+ button
0
REC ( s ) (Record) button
! 9 button
@
– button
#
SCENE / INDEX button
$ STOP ( 4 ) button
% 0 button
^ `
OK button
& ERASE button
* Built-in speaker
( Battery cover
)
EAR (Earphone) jack
-
POWER / HOLD switch
= USB connector slide lever
q Strap hole
w USB connector
• Remove the screen protector from the
display.
