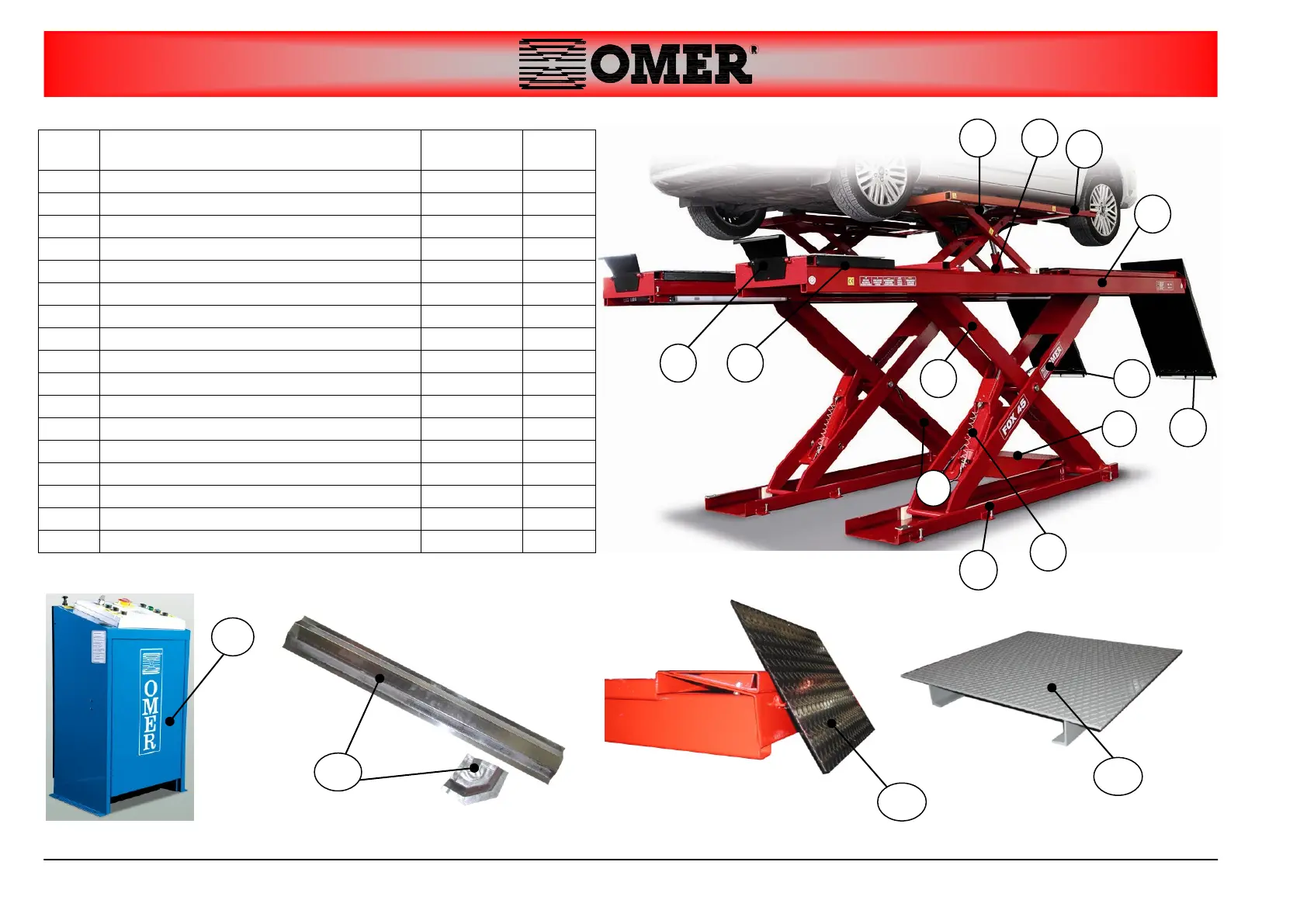

Omer FOX 45 - Page 10

2-2Pagina 2-2 di 57
MFOX04500910 FOX 45
2-2
N°
DESCRIPTION
ABOVE
GROUND
FLUSH
MOUNT
1
LT- auxiliary lift
X
X
2
Extension lead
X
X
3
External scissors
X
X
4
Internal scissors
X
X
5
Base
X
X
6
Hydraulic cylinder (main lift)
X
X
7
Hydraulic cylinder (auxiliary lift)
X
X
8
Recess
X
X
9
Oscillating plates
X
X
10
Wheel stop
X
X
11
Access ramps
X
12
Torsion bar
X
X
13
Bar cover
X
X
14
Command control unit
X
X
15
Protective pipe ducts
X
16
Union platform
X
17
Pit cover
X
14
16
15
17
11
9
2
7
3
4
5
12
6
13
1
8
10
