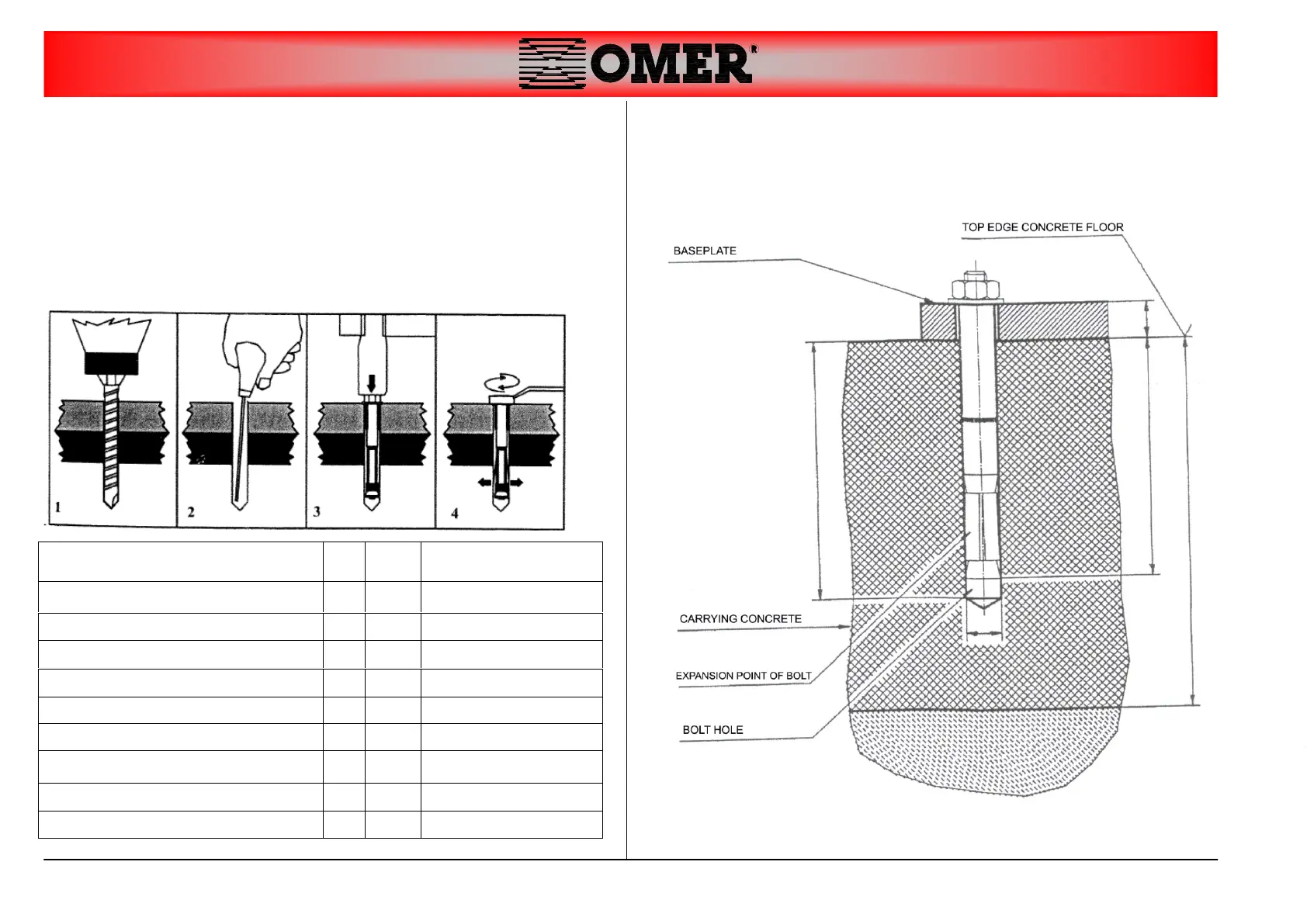

4.7 Anchorage capsule installation
1. Drill hole;
2. Clean the inside of the hole;
3. Insert anchorage capsule into the hole and hammer until it
reaches the end;
4. Tighten the pin with a wrench.
Choosing pin length on untiled floor.
TYPE OF ANCHOR CAPSULE
HAS M12X120/25/45
MIN. BORE DEPTH
A
mm
95
MIN. ANCHOR CAPSULE DEPTH
B
mm
80
MIN. THICKNESS OF CONCRETE
C
mm
140
HOLE DIAMETER
D
mm
14
LIFT BASE SPACER
E
mm
15
NUMBER OF PINS
N°
6
START TWISTING MOMENT
To be agreed with
manufacturer
DRILL BIT DIAMETER
mm
12
TIGHTENING TORQUE
Nm
50
