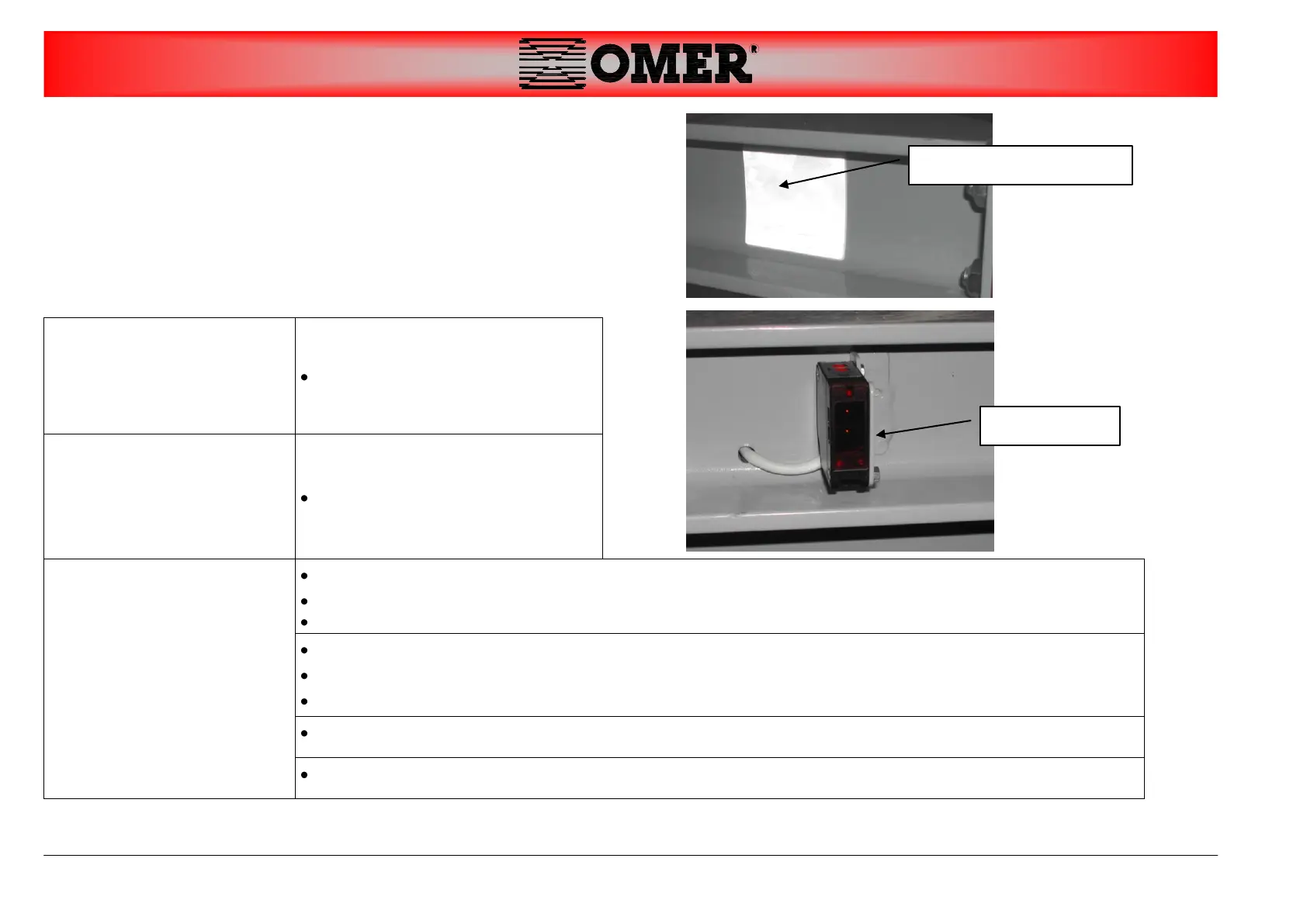

6.4.2 Photocell alignment
NORMAL STATUS
RED LED ON
STOP STATUS
RED LED OFF
POSITIONING CHECK
with a sheet parallel to the catadiopter move downwards
check when the RED LED is switched off.
mark the position
with a sheet parallel to the catadiopter move upwards
check when the RED LED is switched off.
mark the position
the work field is between the two marks
the lift’s permitted operating field must be ±50mm.
LED ROSSO
CATARIFRANGENTE
