4.4.3 Electric connection
The electric supply system must include:
 a main switch with a circuit breaker;
 fuses or thermal magnet protection suited to the machine's
characteristics;
 device against accidental contact, for protection.
The switch must be positioned in the immediate vicinity of the machine
in full compliance with local accident prevention regulations.
Power cables must have a suitable section for absorbing current, without
deviations for other utilities.
Electric systems must be created according to the state of the art by a
qualified electrician who must check the earthing system's efficiency.
The power cable must be locked in the dedicated cable gland and the
electric panel must be carefully closed to assure the envisaged IP 54
protection.
Only connect the machine to type approved sockets with an earth cable
of proven efficiency.
Periodically have qualified personnel check the correct tightening of the
electric cables of the various components.

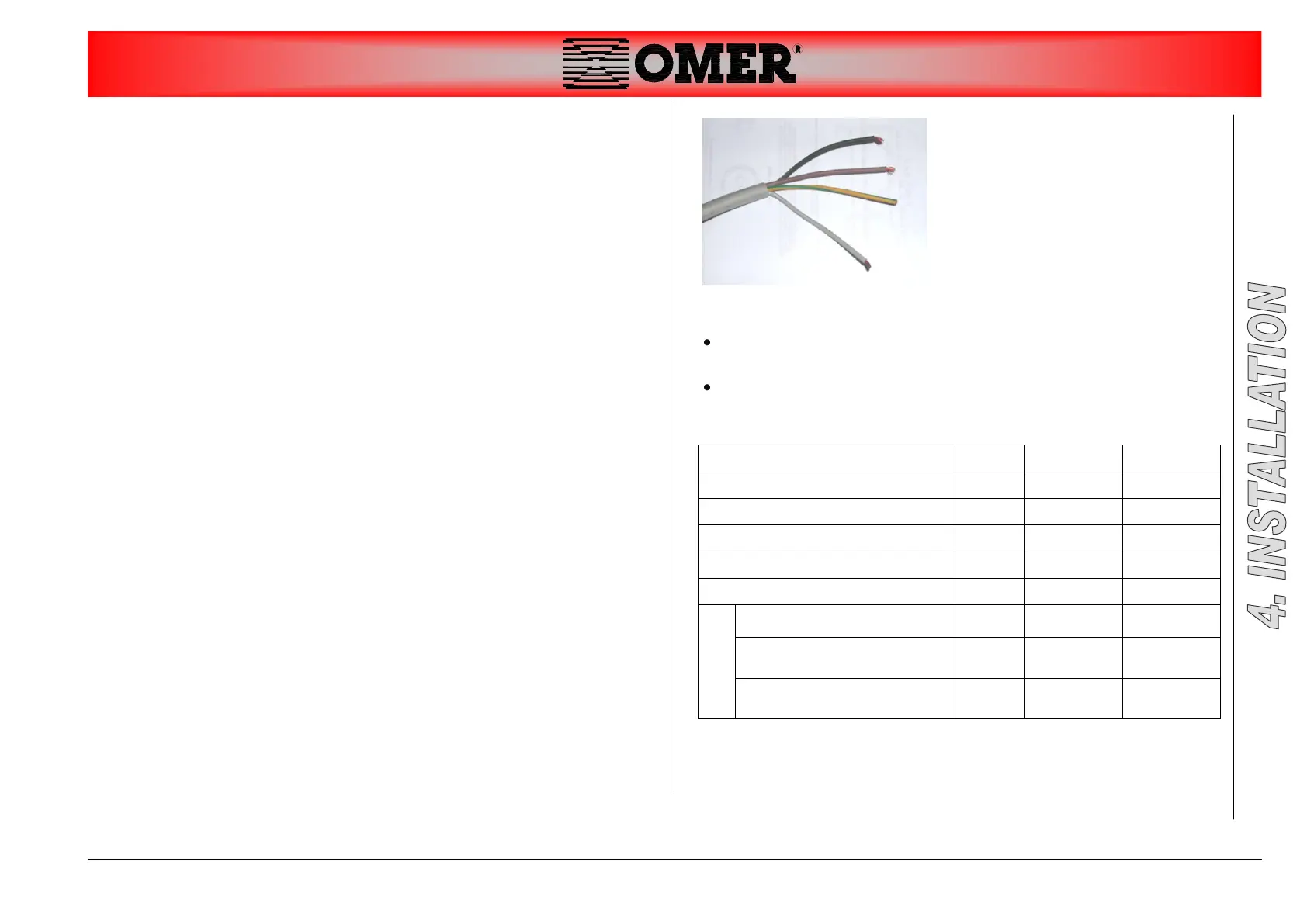

The electric power cable is CEI 20-
22 II compliant and has four 2,5
mm
2
-section wires.
Attention:
power the lift's electrics system using a line fitted with a mains
switch and without any other junctions.
The devices fitted to provide protection against short circuits
must take into account the features of the electrical equipment.
NOMINAL POWER
KW
3,5
3,5
VOLTAGE
V
230
400
No. of phases
3
3
FREQUENCY
Hz
50
50
NOMINAL CURRENT
A
18,5
10,7
PICKUP CURRENT
A
129,5
75
PROTECTION
FUSE (DELAYED)
A
35
20
FUSE (FAST)
A
50
25
THERMOMAGNET
A
32
25
