6.5 Safety manoeuvres
MANUAL DOWNSTROKE MANOEUVRE
WITH HAND PUMP (accessory available on request)
Operations to be performed to lower raised platform
with vehicle on in the case of a blackout:

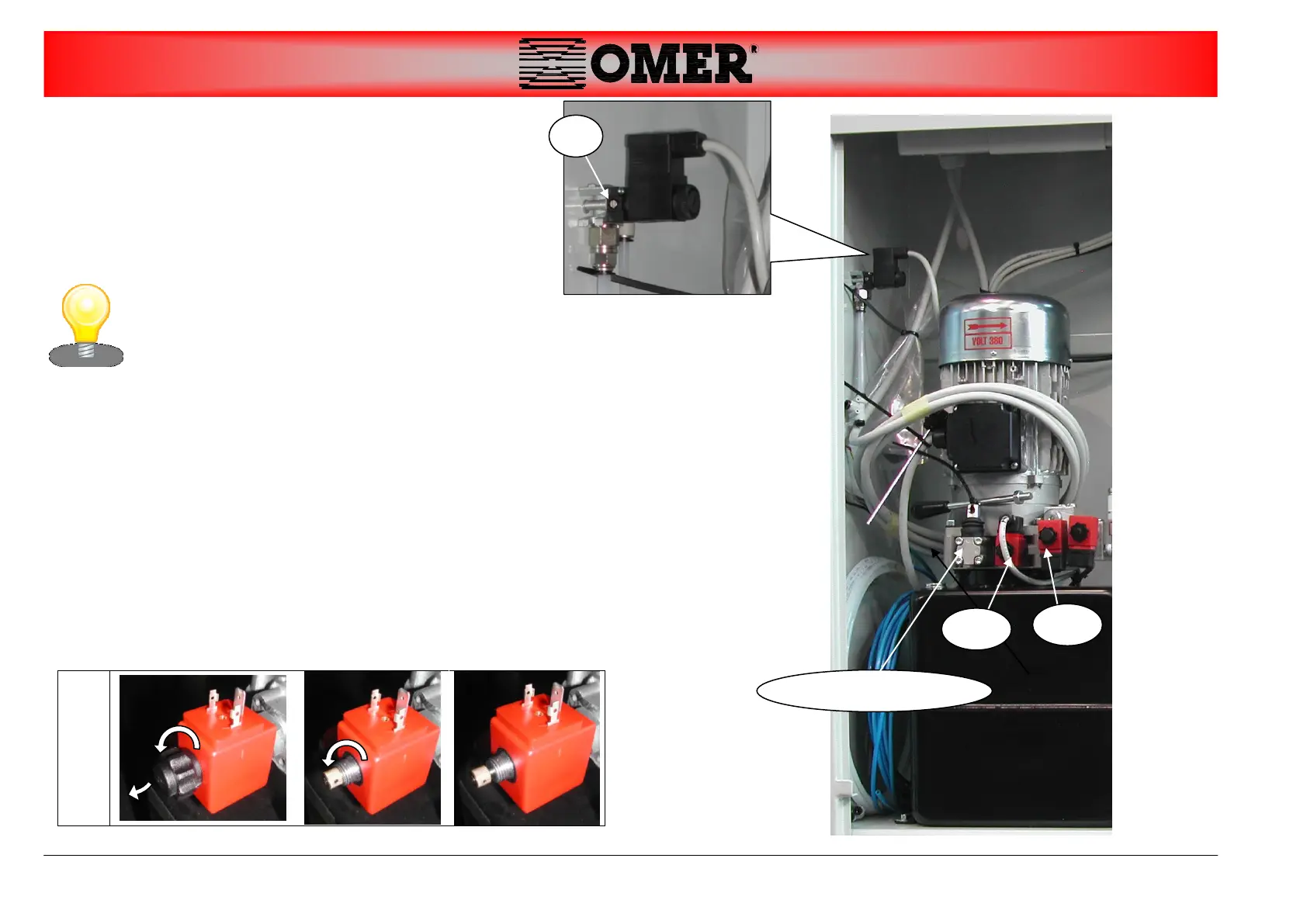

 insert the lever on the dedicated pump support;
 unscrew the lock nut on valve EV3, fully unscrew the knurled pin
(see photograph) and allow the table to lower;
 pump until the safety jacks move away from the block position;
 activate jack opening using the dedicated manual valve on
solenoid valve EV2 (turn screw A through 90°);
ENSURE THAT THE ALL 4 MECHANICAL SAFETY DEVICES
ARE OPEN.
 unscrew the lock nut on valve EV1, fully unscrew the knurled pin
(see photograph) and allow the table to lower;
 to restore, return the manual command of valve EV2 to its position
and tighten the knurled pins.
EV1
EV3
A
Supporto-POMPA
EV1
EV3
A
