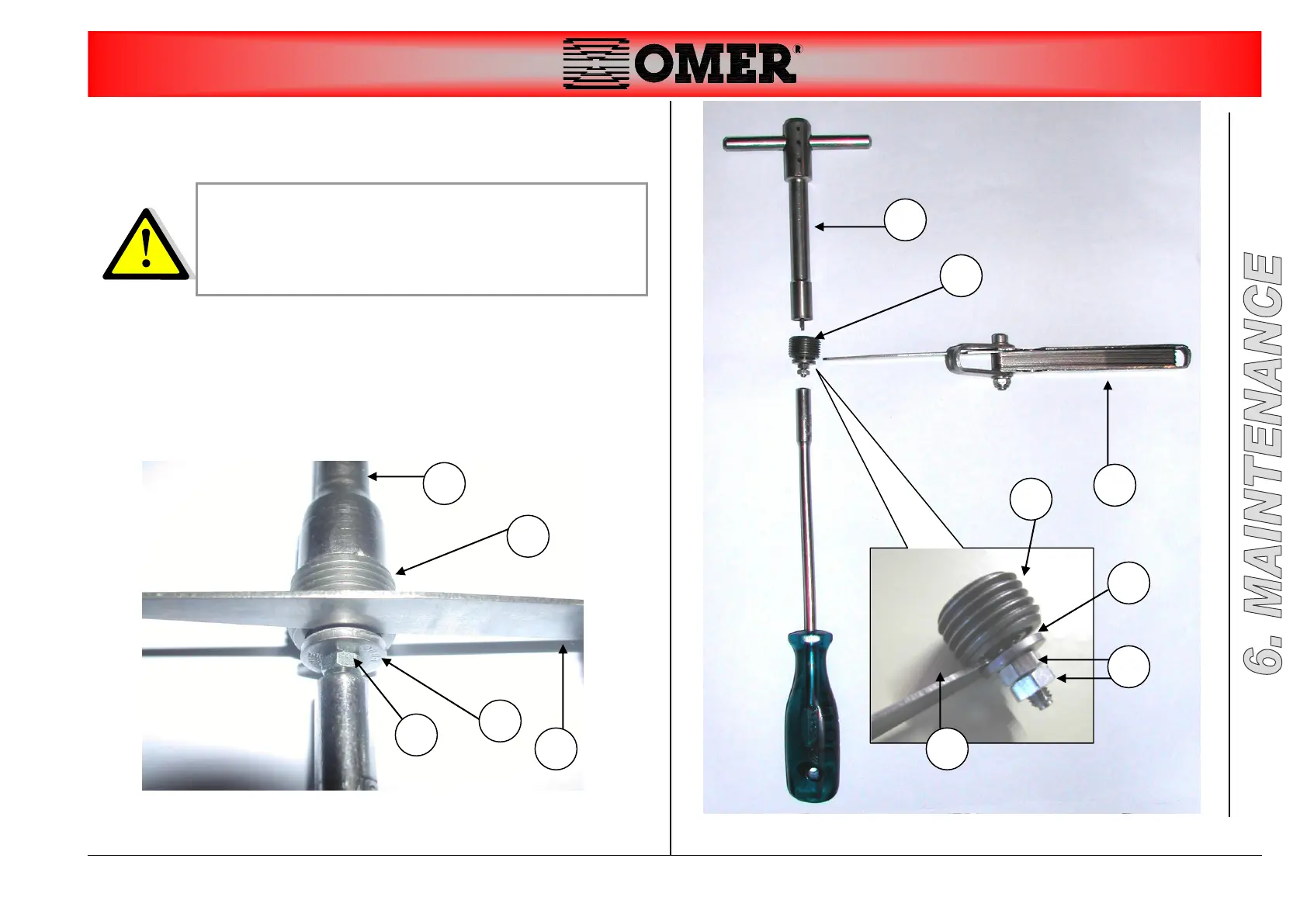

6.4.3 Parachute valve
1. Remove the valve (1) on the bottom of the piston using the key
provided (2)
2. Loosen the washer and lock nut (3) beneath the valve.
3. Move the plate of the valve (4) closer or further away as desired,
checking the height with the dedicated thickness gauge (5).
1. Reassemble and test.
5
1
2
1
4
5
3
2
4
3
5
1
The calibration of the valve must be execute by
specialized people and authorized by the manufacturer.
THE CALIBRATION DISTANCES MUST BE
ESTABLISHED BY THE MANUFACTURER.
