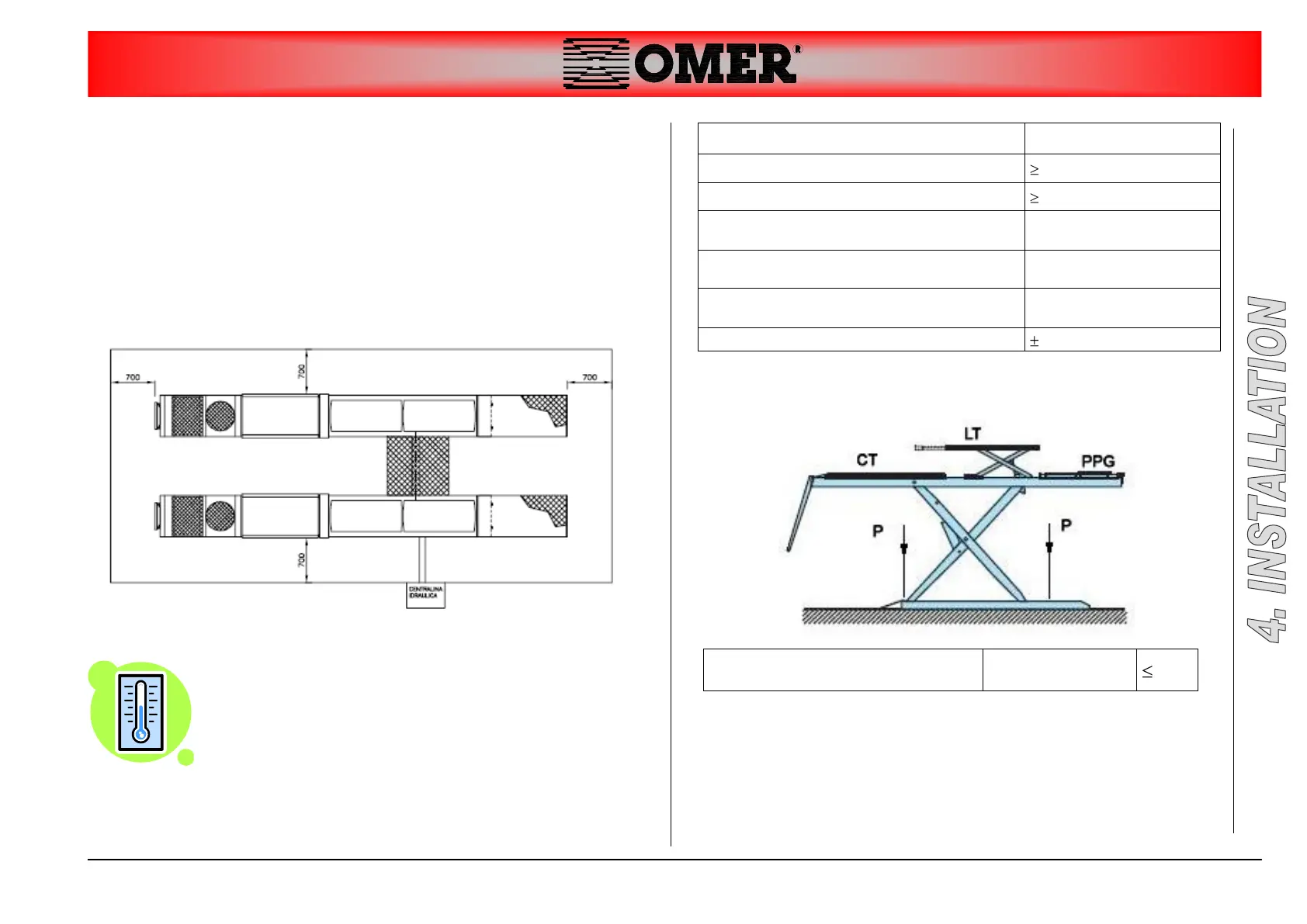

4.2 Place of installation
The free space around the table must satisfy applicable regulations and
be no less than 700 mm.
The control unit must be positioned so that the operator has a full
view over the lift area.
To install the anchor capsules, the foundation must have the following
characteristics:
FOUNDATION
Tamped
THICKNESS OF CONCRETE
14 cm
CONCRETE RESISTANCE CLASS
C 25
IMPROVED ADHERENCE STEEL GIRDERS
Type FeB 44 K
REINFORCEMENT GIRDERS FOR LARGE
SURFACES
Electrowelded mesh
REINFORCEMENT GIRDERS FOR SMALL
SURFACES
Bent irons
FLATNESS
1 / 1000
If the floor characteristics are not available, foundations must be
provided underneath the lift's clamping holes.
The lift must in any case be fastened to the floor using
dedicated chemical anchor capsules.
(*) press calculated under the base plates.
MAX. PRESSURE (*)
Kg/cm2
1
WORK AT A ROOM TEMPERATURE OF 0
TO 40 ° C.
