4-4Pagina 4-4 di 57
MFOX04500910 FOX 45
4.3 Connecting the lift
Follow the sequence of operations given below:
connect the hoses provided, which lead out of the control unit with
their respective inputs to the lift
(see paragraphs: Hydraulic, pneumatic, electrical connection).
Check it is horizontal and level the lift by introducing spacers in
points A, B, C and D, where necessary
(see paragraph: Levelling).

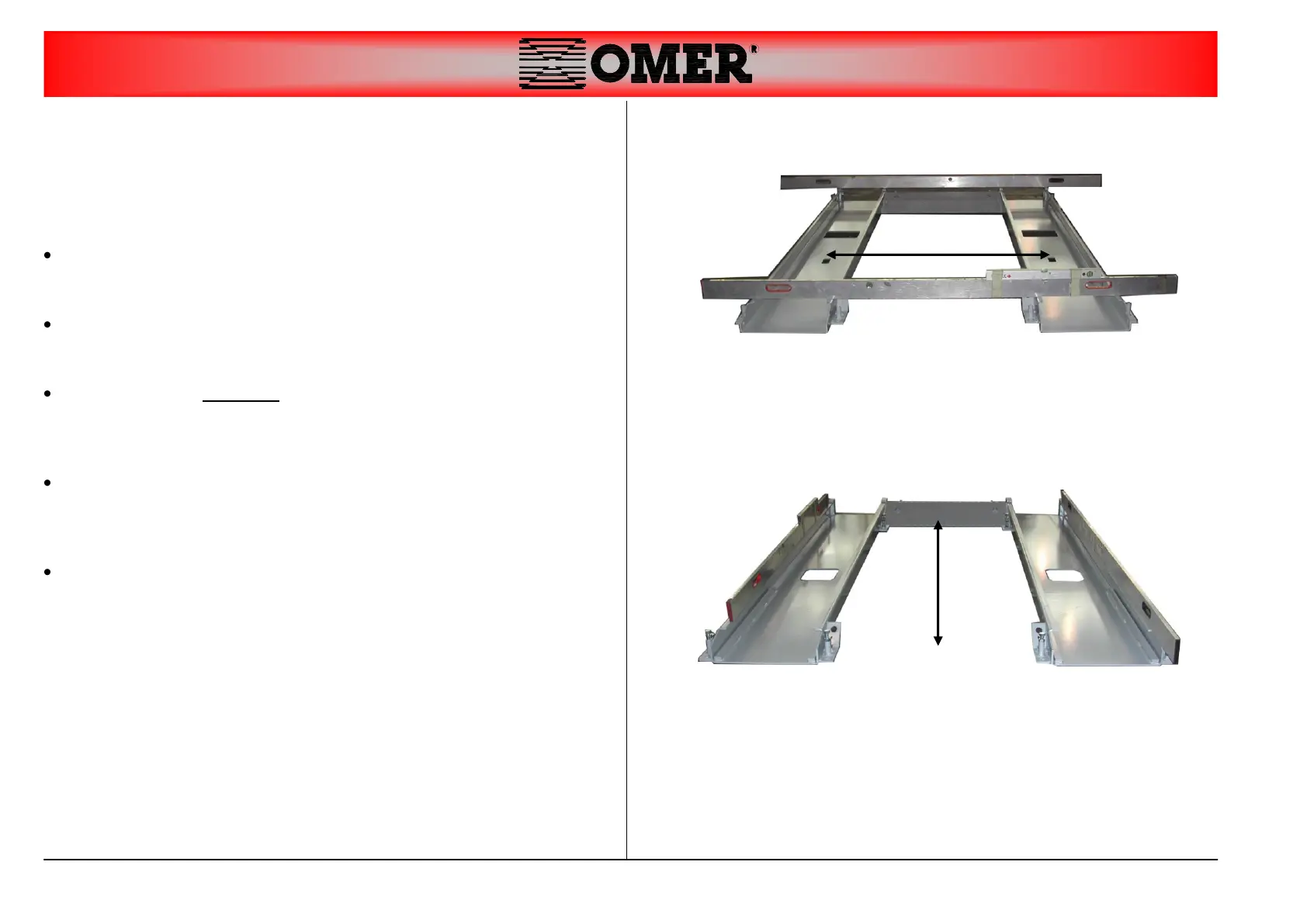

with the aid of a spirit level, check the transverse horizontality of the
lifting platforms with the mechanical safety devices activated and,
where possible, with the lift laden.
(see photo ).
Once connected, upstroke and downstroke cycles should be
performed, with the lift laden, to eliminate any air bubbles in the
hydraulic circuit.
(see paragraph: Elimination of air from volumetric circuit).
Fasten to the floor with mechanical screw anchors. Use six M
12x120 screw anchors in Ø 12 mm holes with a depth of 100 mm.
(see paragraph: anchorage capsule installation).
The control unit must be positioned so that the operator has a full
view over the lift area.
