4.4.2 Pneumatic connection
Take the main lift hose
(Ø 8 X 6 RILSAN)
Take the LT auxiliary lift hose.
Take the hose of the rear oscillating plates.

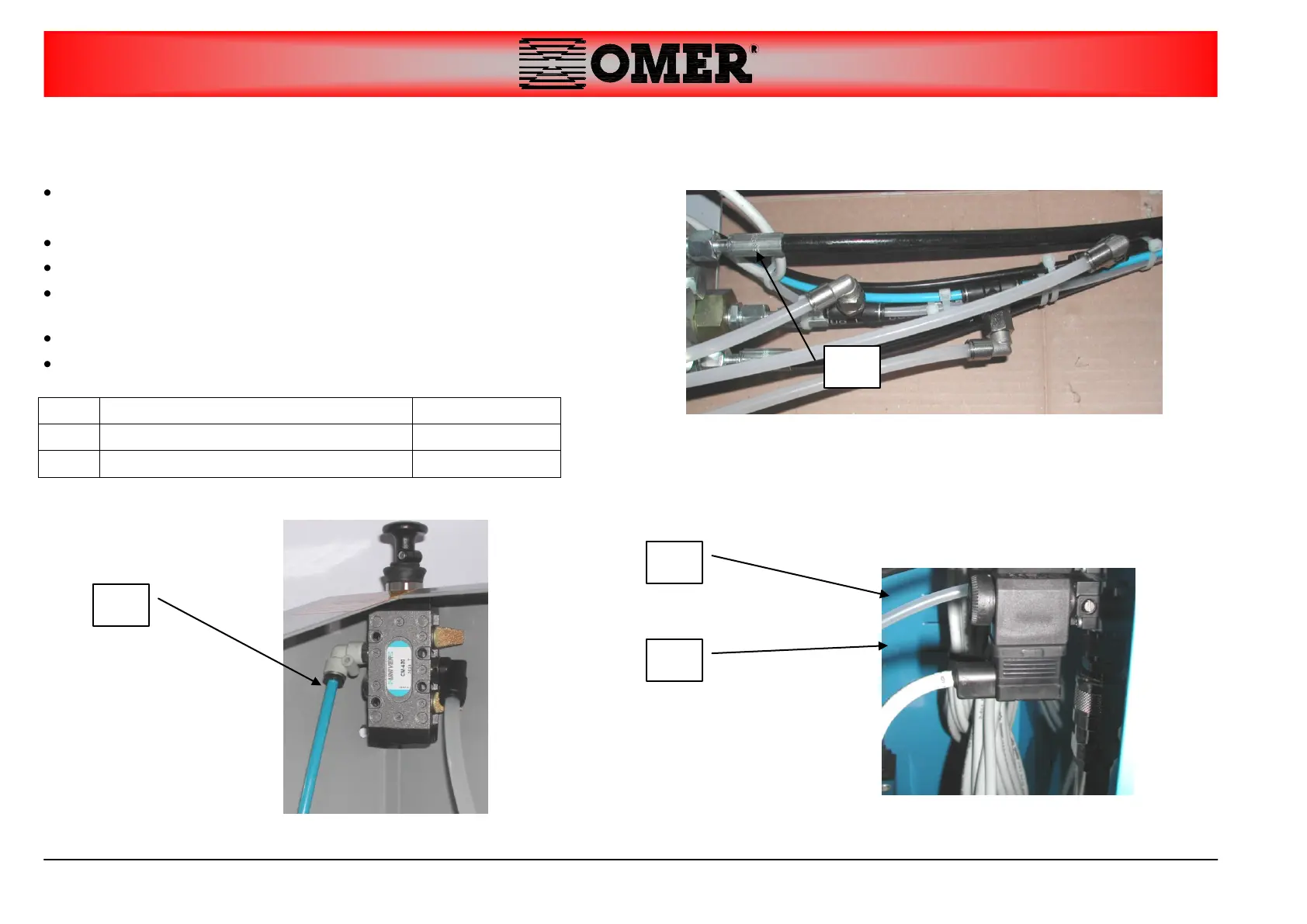

Insert the tips into the control unit, into the dedicated unions (SEE
PHOTO)
Once the hoses have been positioned, cut away any excess.
Insert the hoses (RILSAN) into the union next to the hydraulic block,
each one in its own utility
Ref.
Description
Colour
2
LIFT AIR
WHITE
5
PLATE AIR
LIGHT BLUE
5
2
2
