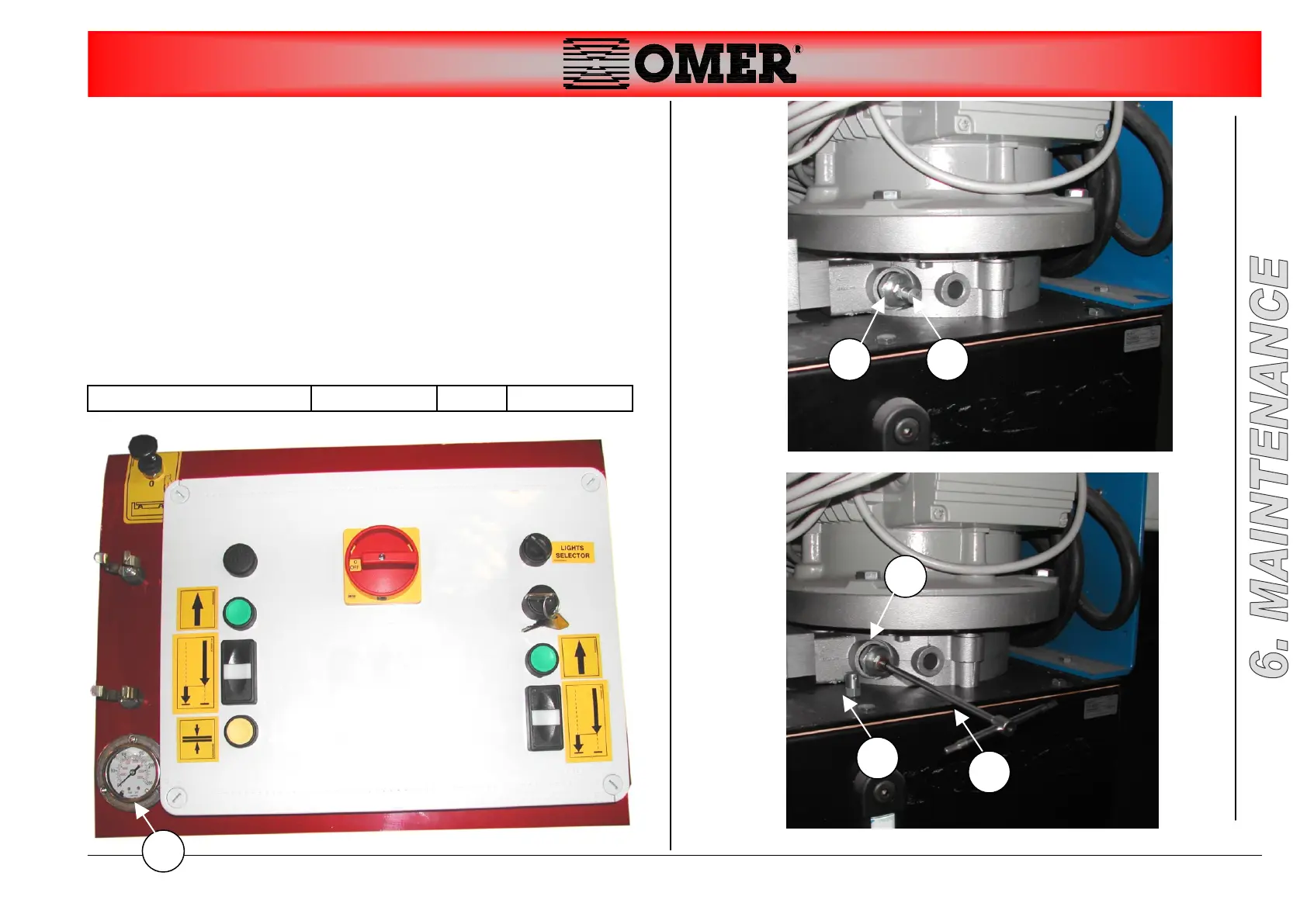

6.4.1.2 Control unit on floor or for Collaudo Italia Version
(OPTIONAL)
1) Take the table to maximum height.
2) Remove the cap nut (part. B)
3) Loosen the nut by turning two revolutions anticlockwise (part.. C)
4) Check the pressure gauge (part.. A)
5) Adjust pressure with an allen screw: (part. D)
Turn clockwise to increase calibration pressure
Turn anticlockwise to reduce calibration pressure
6) If pressure is equal to P, reassembly the nut loosened in point 3
and reassembly cap nut.
PRESSURE
P
Bar
300
D
A
B
B
C
C
