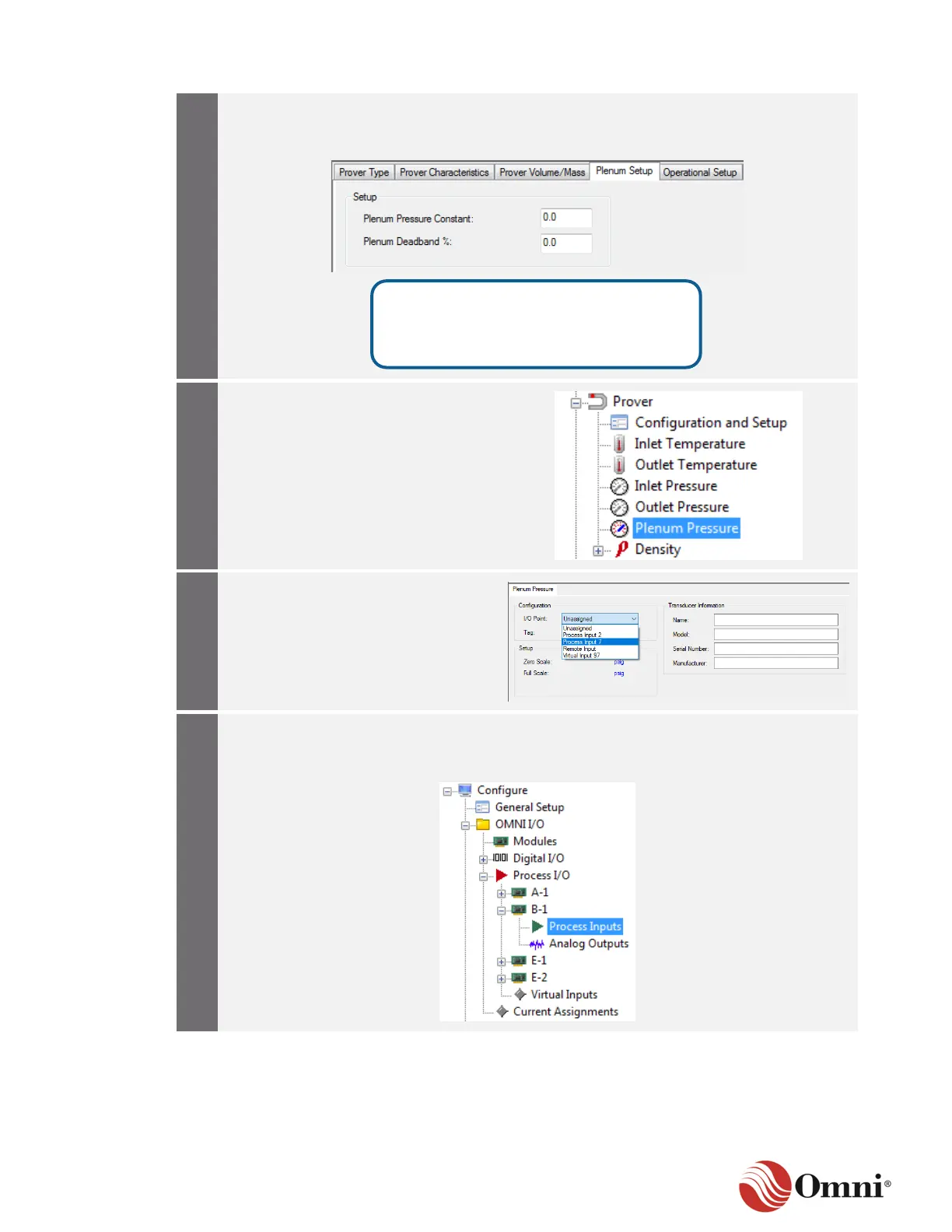

a. Return to the Configuration and Setup screens under Prover in the Configure tree.
b. Select the now visible Plenum Setup tab.
c. Enter the values for Plenum Pressure Constant and Plenum Deadband %.
Select the now visible Plenum
Pressure item in the Prover tree to
see the configuration options.
a. In the Plenum Pressure screen,
select an I/O Point (configured
for pressure) from the drop-down
box.
b. Click Apply to save your change.
a. To verify the I/O selection, expand the OMNI I/O and Process I/O functions in the
Configure tree.
b. Select the Process Input that corresponds with the I/O Point you assigned in Step 7.
Press F1 to access OMNICONNECT Help
for a table of pressure constants and a
formula to calculate the Plenum Pressure.
