OMNICONNECT® Operations

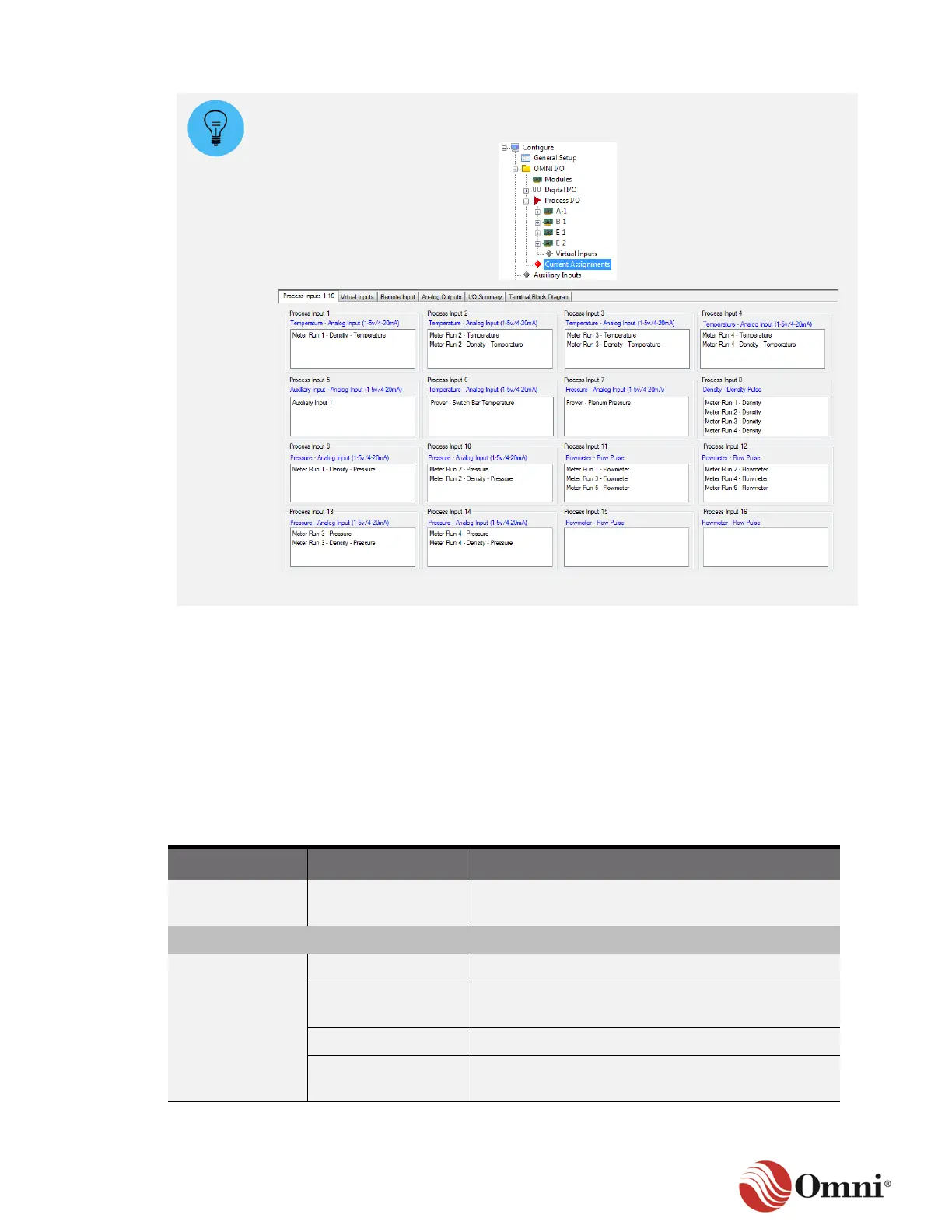

For assistance viewing input channel assignments, click on Current Assignments
in the Process I/O tree.
3.5.3 Prove Sequence
A prove sequence consists of a series of command actions and observed events, such as
Overtravel volume, the inactivity timer, run repeatability settings and checking for stability.
For example, Table 3-1 displays the prove sequence or list of status messages received when a
prove request is made for a unidirectional Conventional prove configured with three runs to
average.
Table 3-1: Prove Run Sequence Status Messages
Status Message
Description
Prove Request
Checking Temp
Stability
Verify process variables within set parameters of
prover configuration
First Run
Launch Forward
Command to start the launch
First Detector
Switch
Start run counts
In Flight Forward
Status between detector switches
Second Detector
Switch
End run counts
