OMNI 4000/7000 Operations and Maintenance Guide – Rev F
4-9
OMNICONNECT® Reports

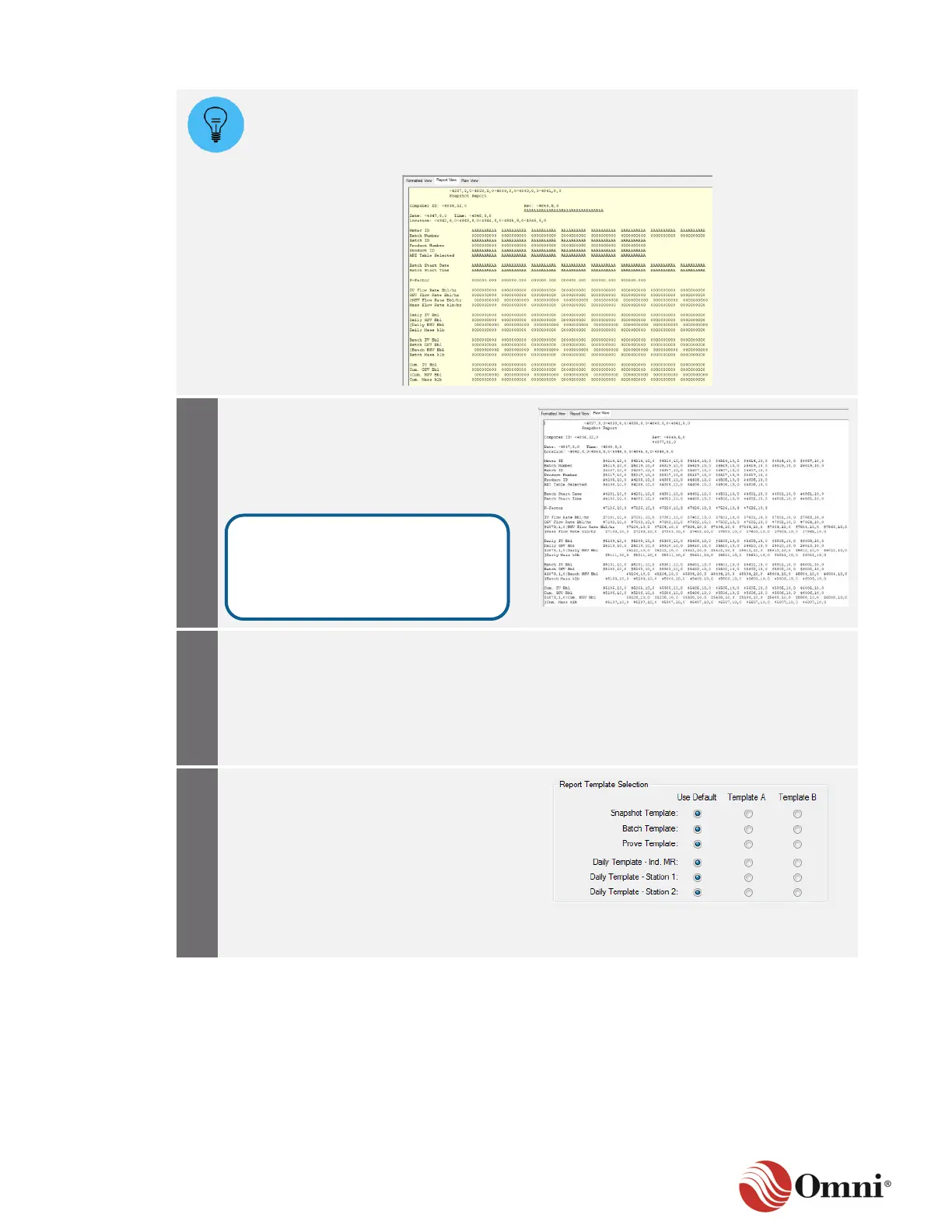

The Report View tab allows you to view the report as it would look when it is
printed. You can check the final alignment of values and make changes in the
Formatted View or Raw View tabs, but you cannot edit the template in the Report
View tab.
12.
Click on the Raw View tab. This tab allows
you to see Modbus field descriptions, the
Modbus registers used to populate the
values, each printed value’s maximum
width and the decimal placement for each
value.
13.
a. Edit the template in this screen by
placing the cursor in any position
within the template and simply using
your keyboard to make changes.
b. When finished editing in the Raw
View tab, click Apply to save your
changes to the entire template.
14.
a. Continue to import custom templates
for the other types of reports, as
needed.
b. When finished, return to the Report
Setup option in the Configure tree
and verify that the templates you
have imported match the templates
you have selected in the Report
Template Selection group (go back
to Steps 1 through 3).
The “$” symbol indicates that the
Modbus register number that
follows is where the printed value
will be retrieved from.
