© 2011 Omnicell, Inc. External Return Bin Installation and Service Guide/67-2038 Rev D
Installation Instructions 2-11
Installation on G3 Cabinets
2. Insert the longer end of the new transport handle into the left slot followed through with the
other end into the right slot.

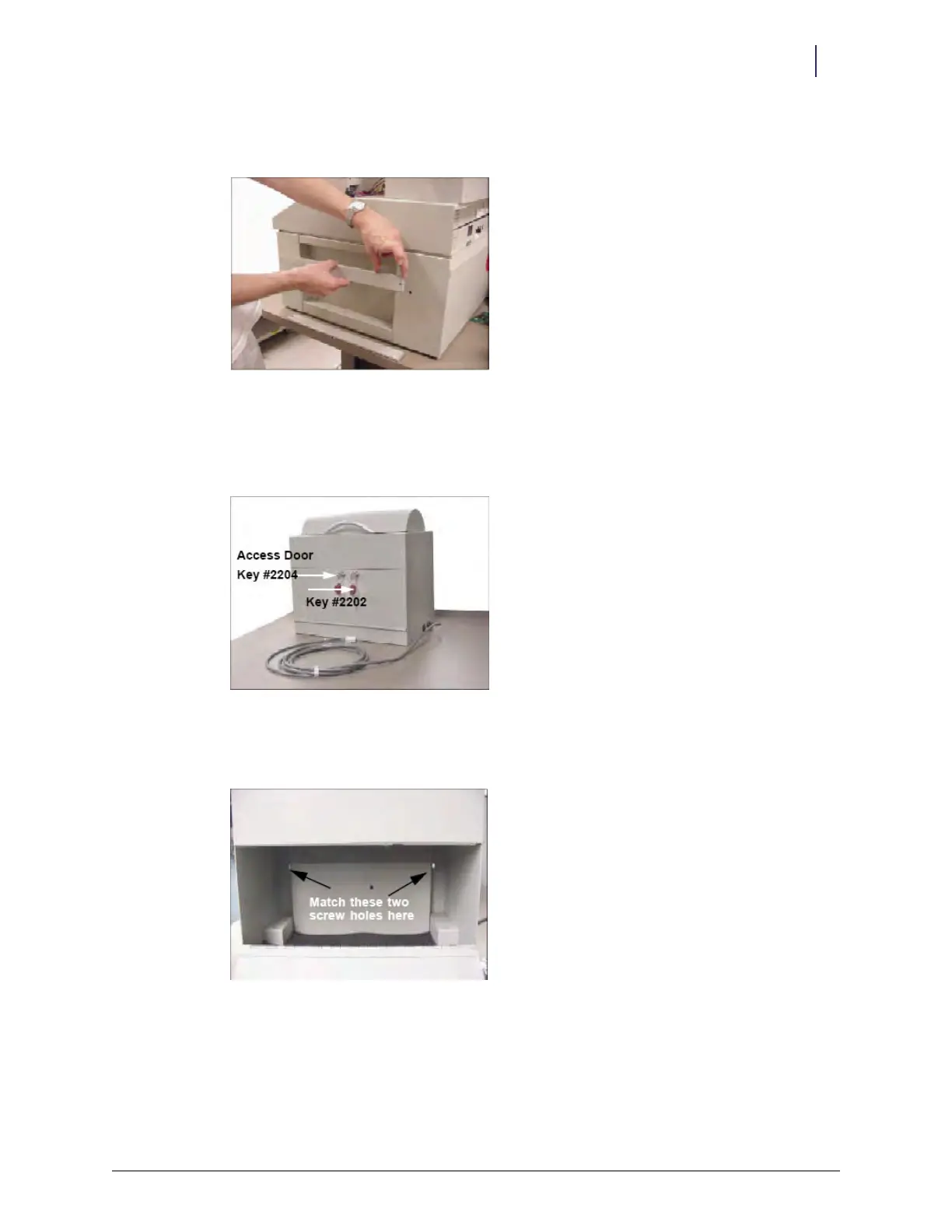

Figure 2-27. Installing the new transport handle
3. Secure the handle with the two screws removed in step 1. Note the threaded hole orientation.
4. Place the External Return Bin on a flat clean surface, before opening the access door with both
keys. Use key #2204 to unlock the access door and key #2202 to override the solenoid.
Figure 2-28. Opening the access door
5. Align the two drilled holes on the transport handle to the two drilled holes inside the ERB.
Secure the handle with two #8 hex nuts.
Figure 2-29. Screw hole locations
6. Close and lock the access door
