OmniCell ERB - Half-Cell; Attaching the ERB to the Half-Cell

© 2011 Omnicell, Inc. External Return Bin Installation and Service Guide/67-2038 Rev D
Installation Instructions 2-19
Installation on G3 Cabinets
Half-Cell
Attaching the ERB to the Half-Cell
1. Install the half-cell mounting bracket to the right side of the half-cell using (4) #8-32 x 1/4" flat
head cap screws.

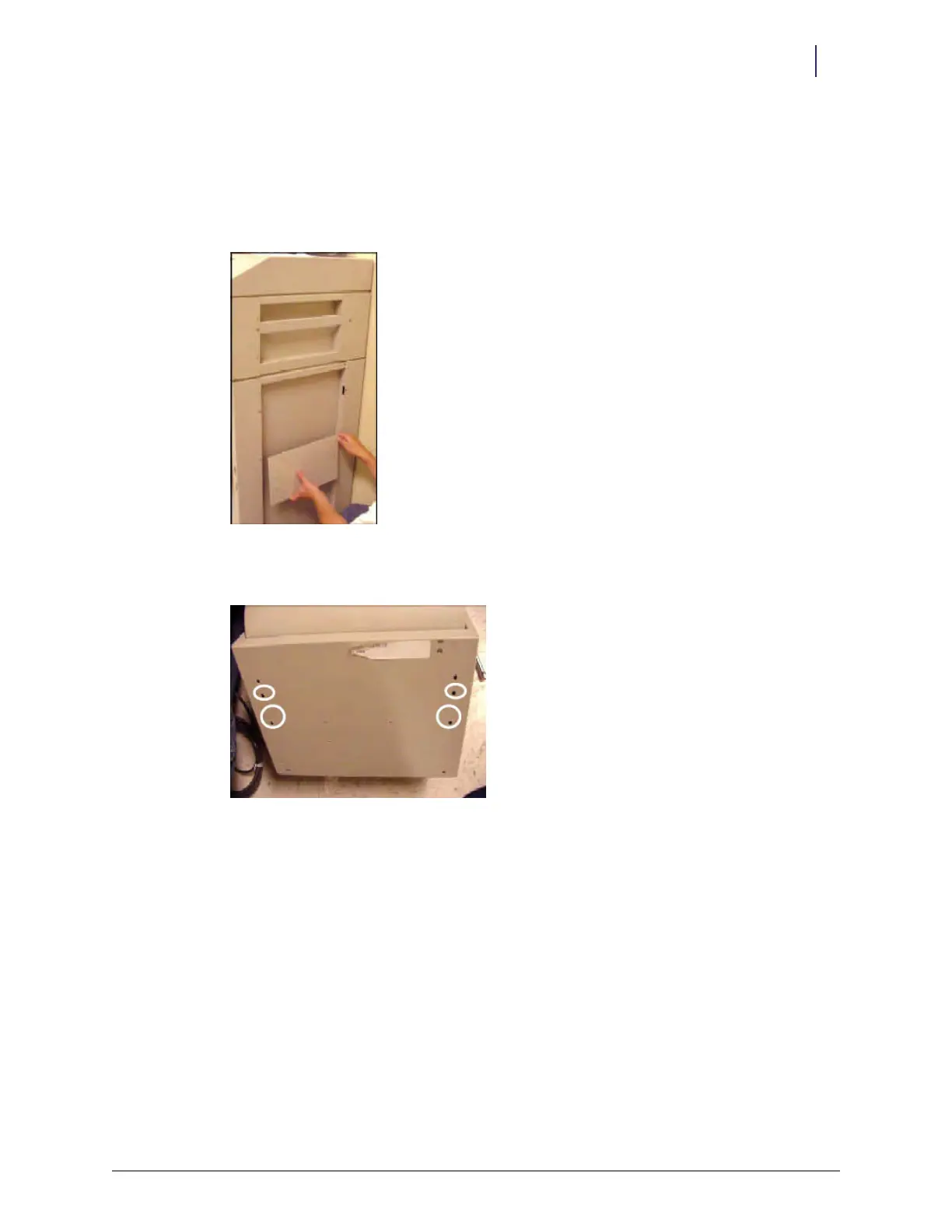

Figure 2-49. Installing mounting bracket
2. Align the drilled holes circled on the ERB to the half-cell bracket plate.
Figure 2-50. Aligned drill holes
