Cam Locks
External Return Bin Installation and Service Guide/67-2038 Rev D © 2011 Omnicell, Inc.
Cam Locks
1. Open the access door with keys #2204 (unlocks access door) and #2202 (overrides access door
solenoid).

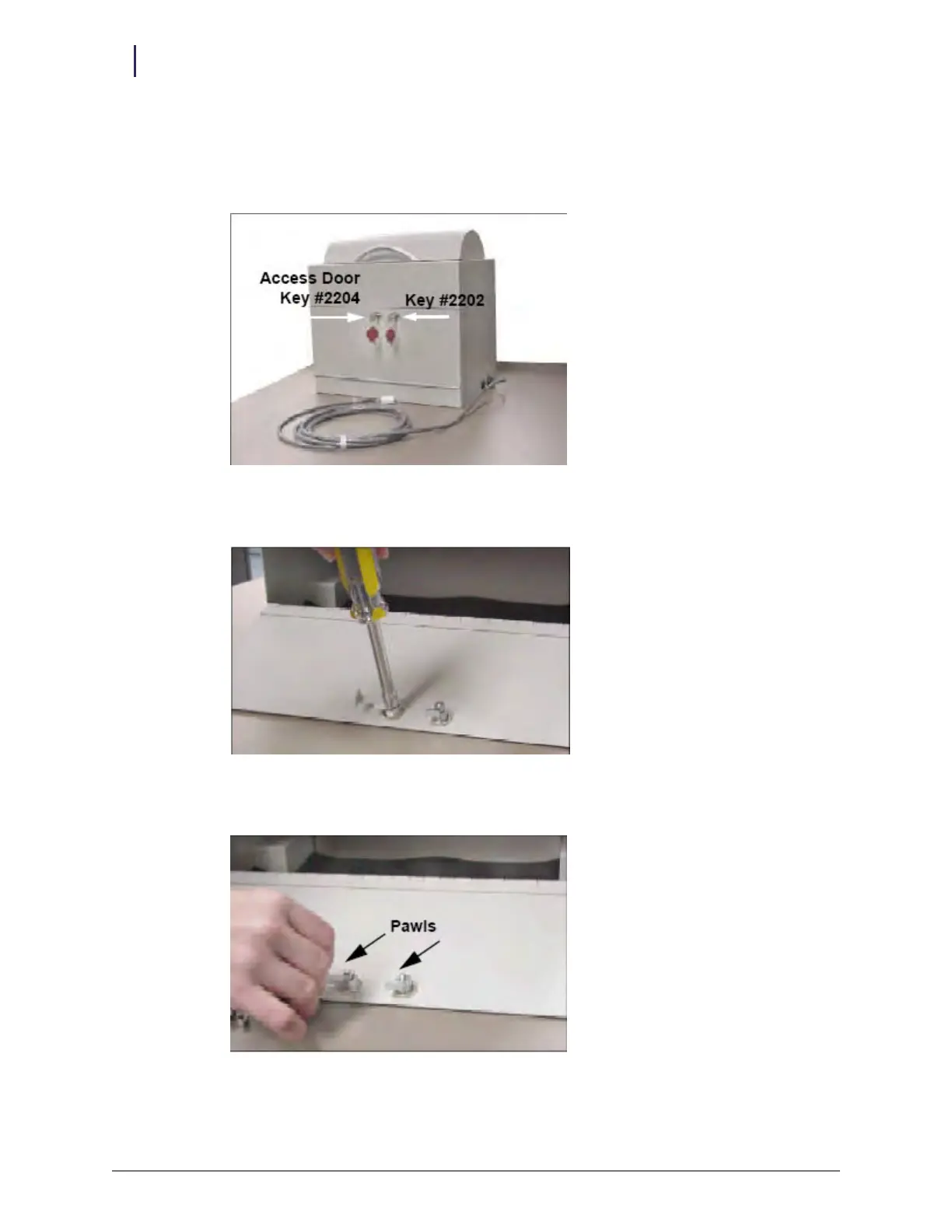

Figure 3-12. Key lock locations
2. Remove the M5 nylock nuts with a 5/16" nut driver.
Figure 3-13. Removing nylock nuts
3. Remove the pawls.
Figure 3-14. Removing pawls
