© 2011 Omnicell, Inc. External Return Bin Installation and Service Guide/67-2038 Rev D
Service 3-9
Access Door
Access Door
The access door solenoid may be difficult to reach inside the ERB unit. The solenoid is located
inside the return door, which makes it hard to visually see the parts.
1. Open the access door with keys #2204 (unlocks access door) and #2202 (overrides access door
solenoid).
2. Open the return door by pushing the pawl of the solenoid to the left and lifting the handle.

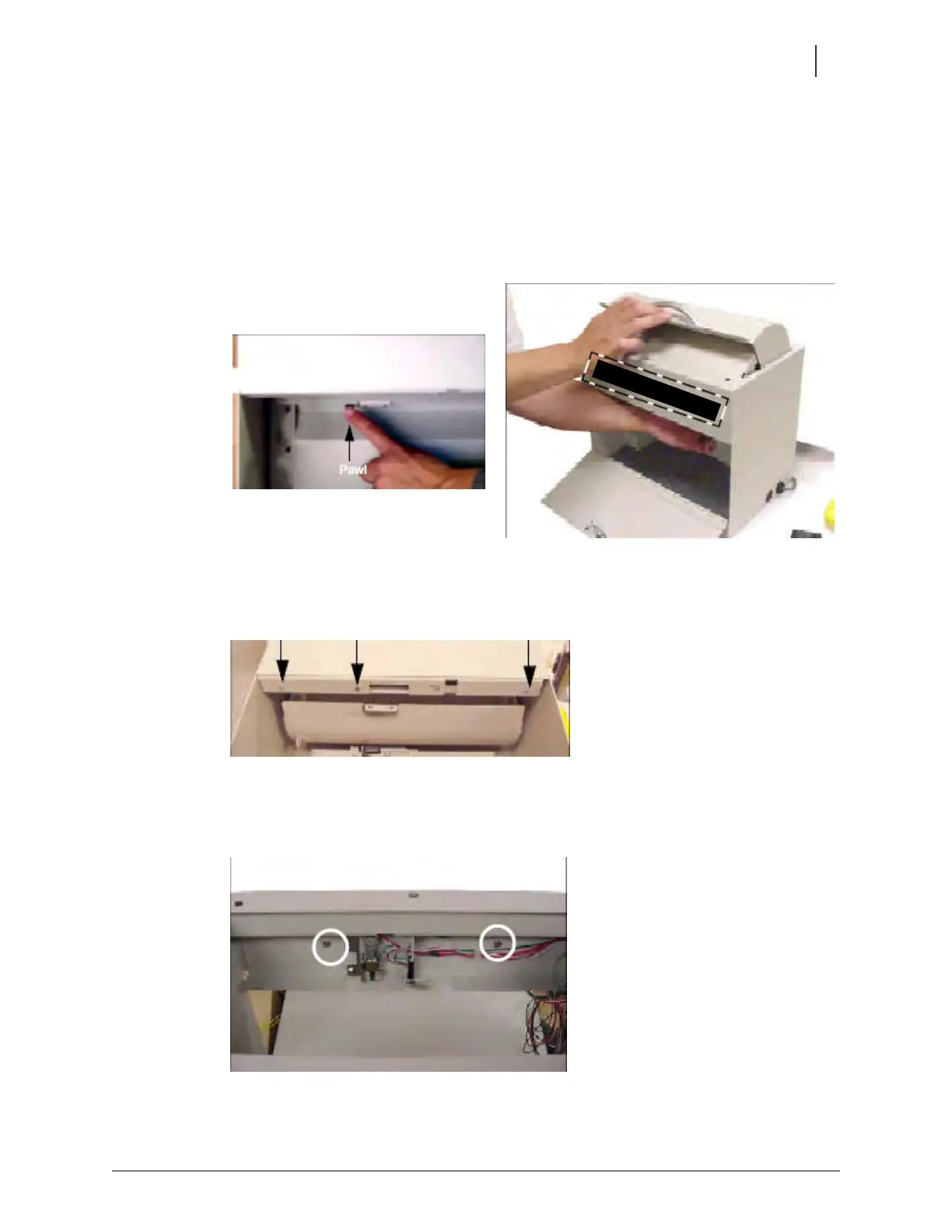

Figure 3-21. Pushing the pawl and opening the return door
3. Remove the three 4-40 x 1/4” FH undercut Torx screws from the underside of the LED mount
bracket.
Figure 3-22. Removing the LED mount bracket screws
4. Remove the two #4 hex nuts securing the bracket LED mount from the inside of the ERB with
a 1/4" nut driver or socket.
Figure 3-23. Hex nut locations
LED bracket moun
t loc
ation
