3-8 Service
Cam Locks
External Return Bin Installation and Service Guide/67-2038 Rev D © 2011 Omnicell, Inc.
10. Check the orientation of the key notches.

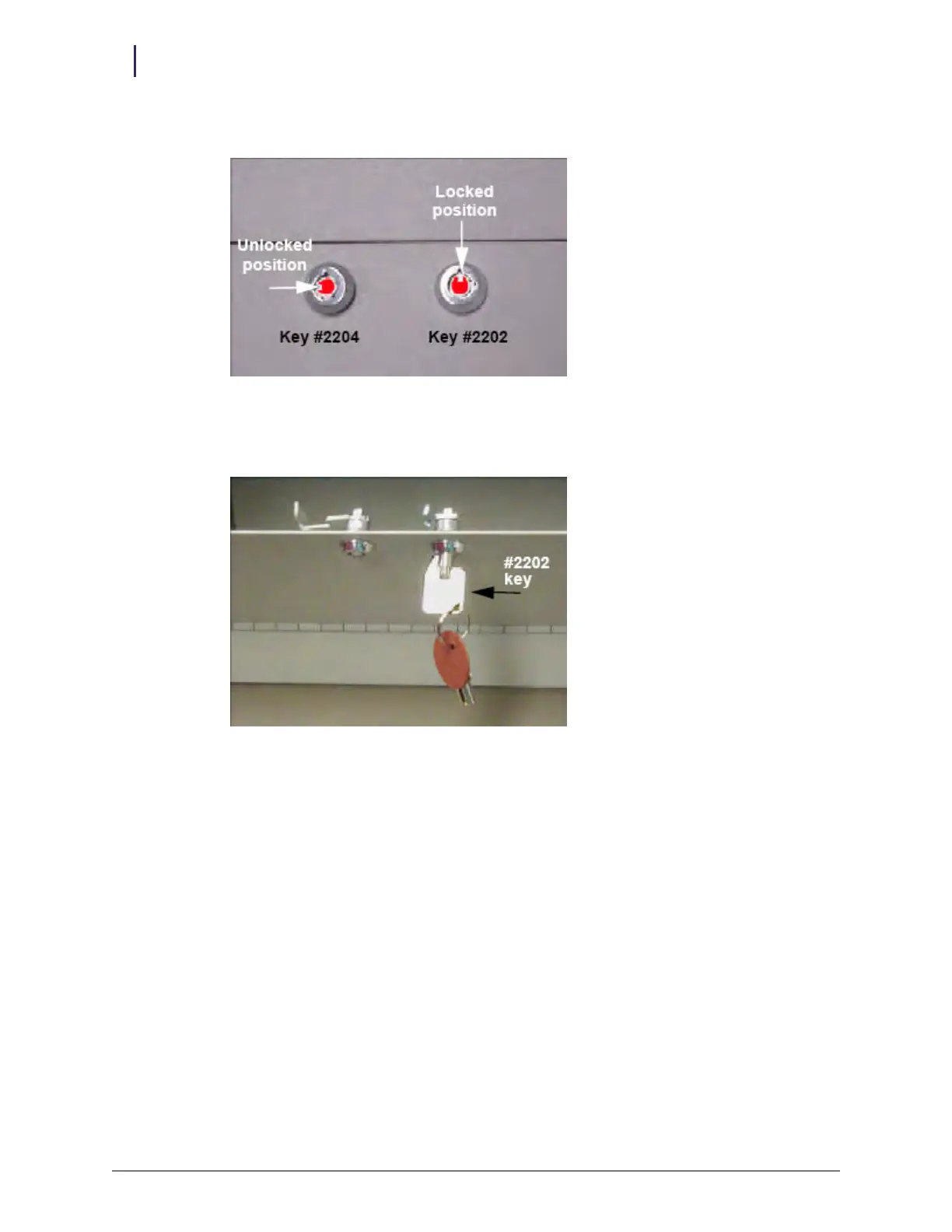

Figure 3-19. Correct orientation of key notches after cam locks are replaced
11. Test the positions of the cam lock plate. Key #2202 remains fixed in the lock when the lock
plate is in the unlocked position.
Figure 3-20. Cam lock plate positions
12. Close the access door and lock the ERB.
