Service
This chapter covers the replacement of External Return Bin (ERB) components.
Preparation
1. Perform a graceful shutdown of the cabinet.
2. Unplug the cabinet power cable.
3. Remove the contents of the ERB before doing service.
4. [Optional] Remove the ERB from its mounting.
Return Door Solenoid
1. Open the access door with keys #2204 (unlocks access door) and #2202 (overrides access door
solenoid).
2. Open the return door by pushing the pawl of the solenoid to the left and lifting the handle.

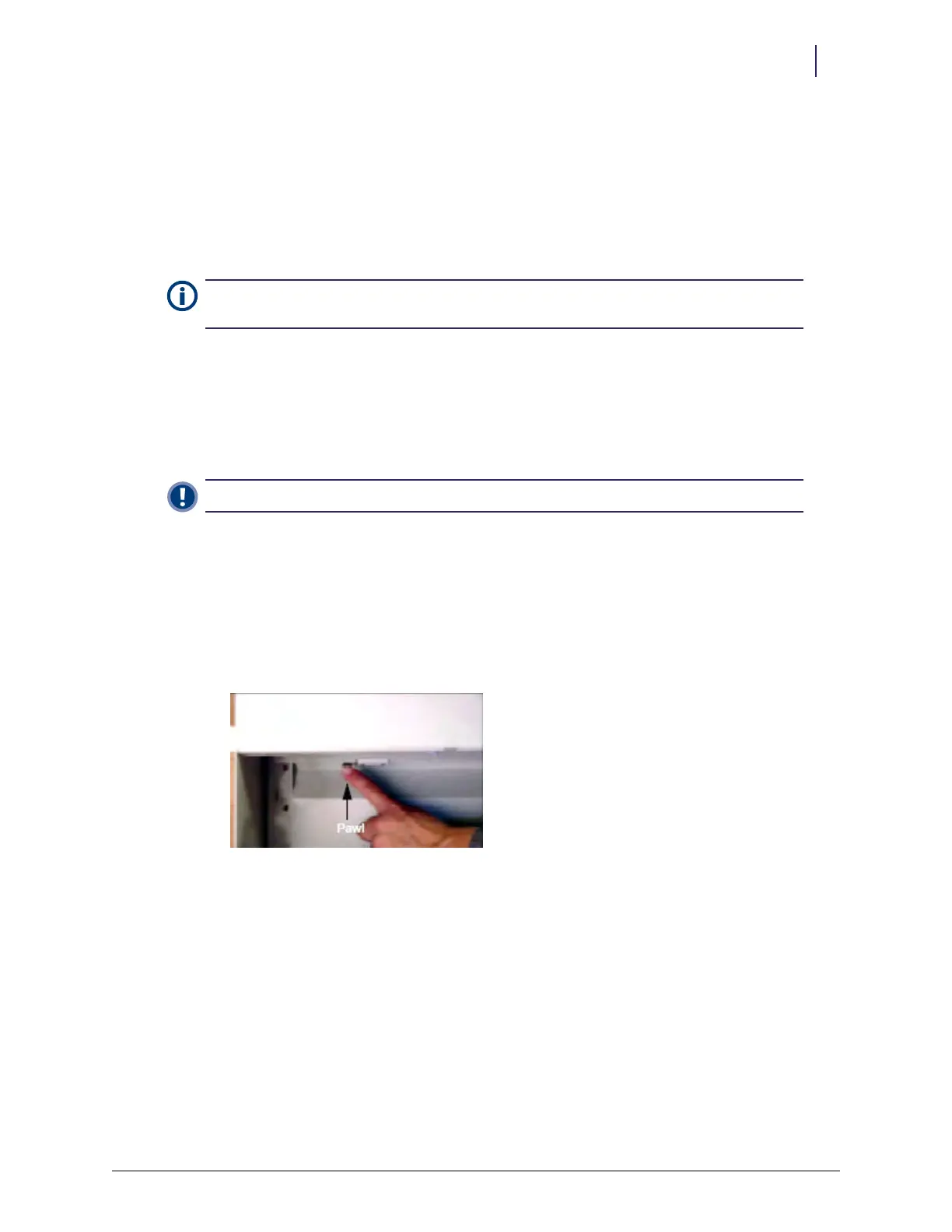

Figure 3-1. Pushing the pawl
Note: Check the PCB light through the metal plate before replacing the board. A green light indicates
proper operation. A red light or no light indicates there is problem.
Important: A pharmacist or other designated person must be present during this process.
