OmniCell ERB - Cabling for the Half-Cell G3

2-20 Installation Instructions
Installation on G3 Cabinets
External Return Bin Installation and Service Guide/67-2038 Rev D © 2011 Omnicell, Inc.
3. Open the ERB access door with both keys. Use key #2204 to unlock the access door and key
#2202 to override the solenoid.

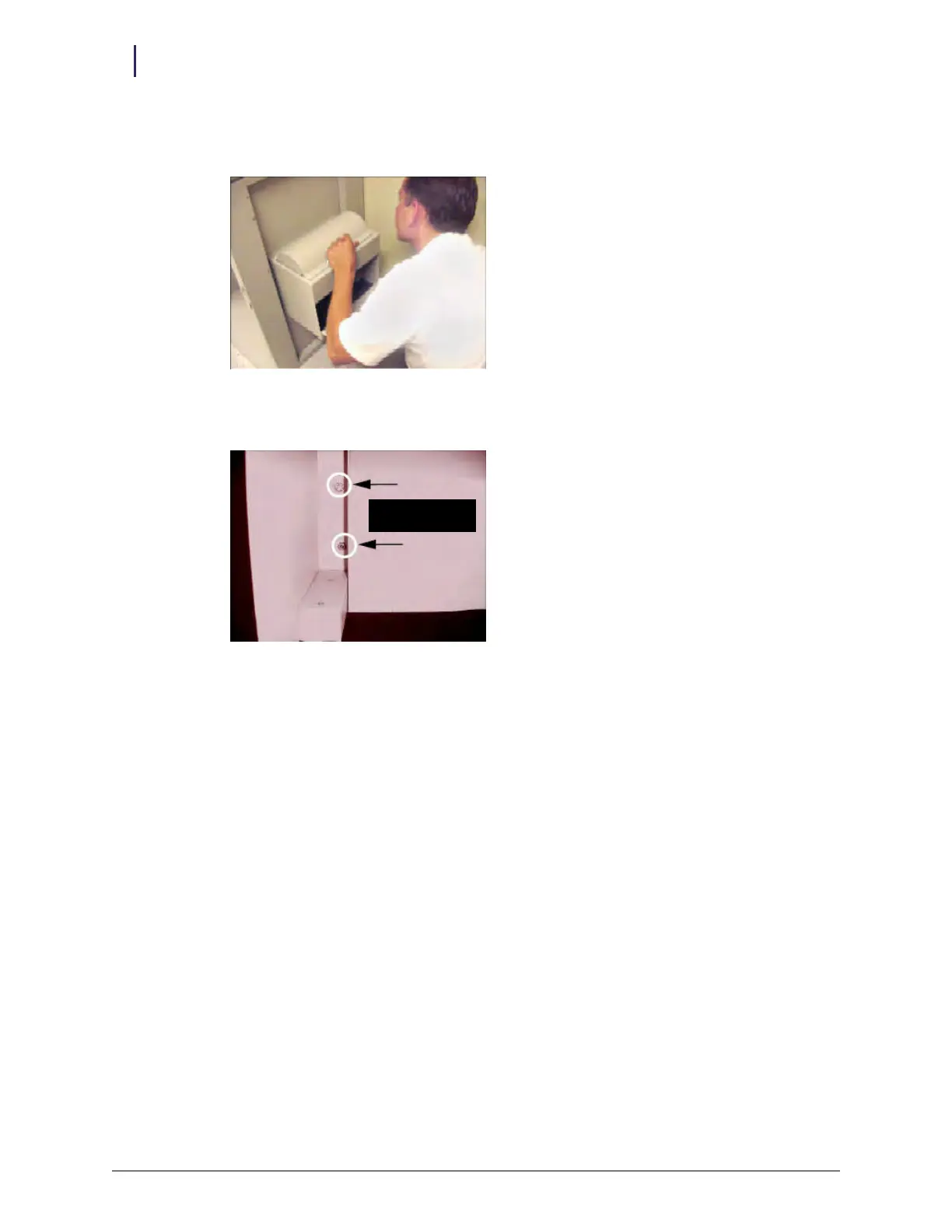

Figure 2-51. Opening the access door
4. Secure the ERB with four #8 hex nuts.
Figure 2-52. Hex nut locations
5. Close and lock the access door.
Cabling for the Half-Cell G3
Connect the ERB to the half-cell cabinet using the same wiring procedures as for the OmniTT and
OmniRx. See “Cabling for the OmniTT G3” on page 2-12.
#8 hex nut locations
