Installation Instructions 2-33
Installation on G3 Cabinets
20. Review the rear layout of the workstation in Figure 2-54.

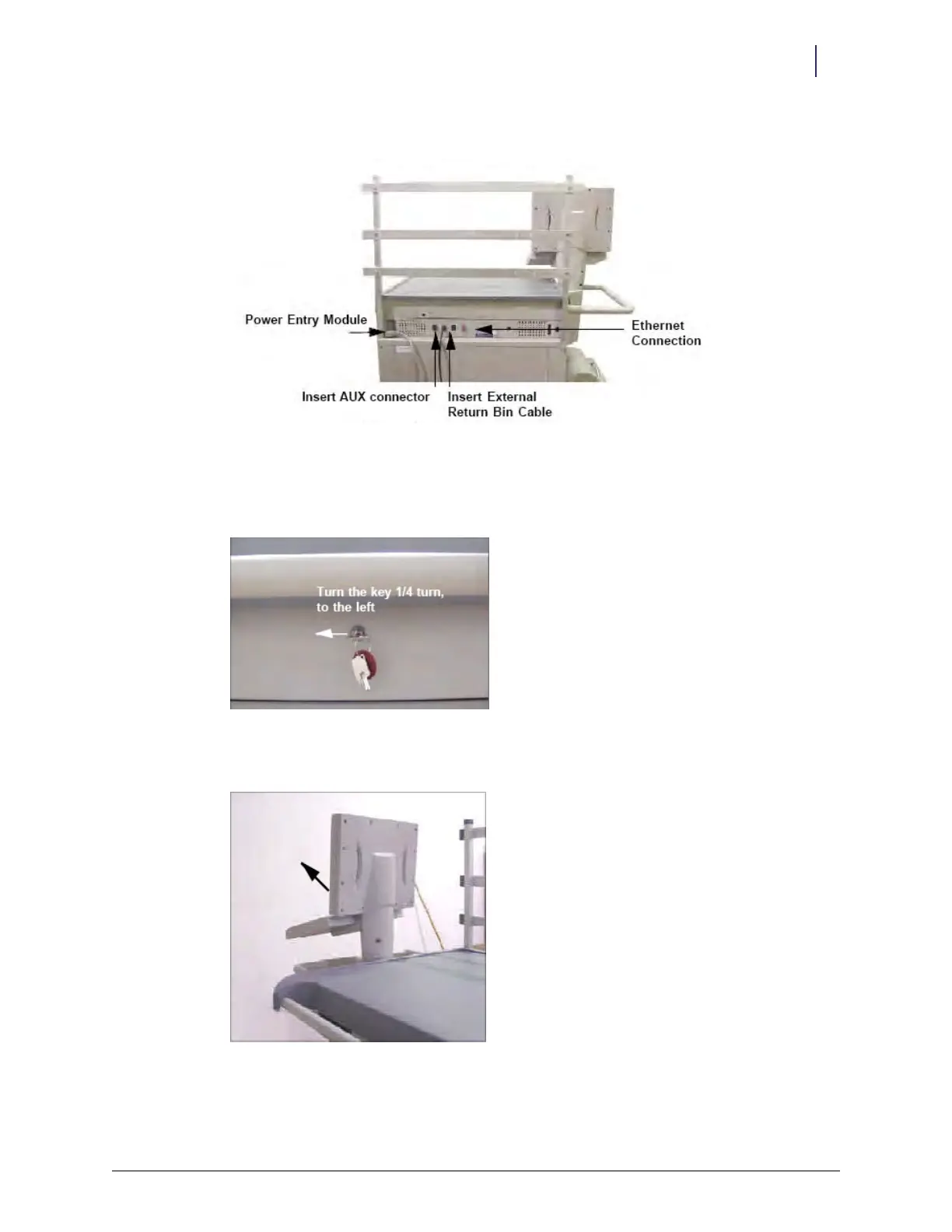

Figure 2-88. Rear layout of AWS G3
Cabling for the AWS G3
1. Unlock the workstation with key #2036 by turning the key a quarter turn to the left.
Figure 2-89. Key #2036 orientation
2. Swivel the LCD monitor and keyboard to the left, away from the worksurface.
Figure 2-90. Monitor orientation
