Installation Instructions 2-59
Installation on G4 Cabinets
5. Open the ERB access door with both keys. Use key #2204 to unlock the access door and key
#2202 to override the solenoid.

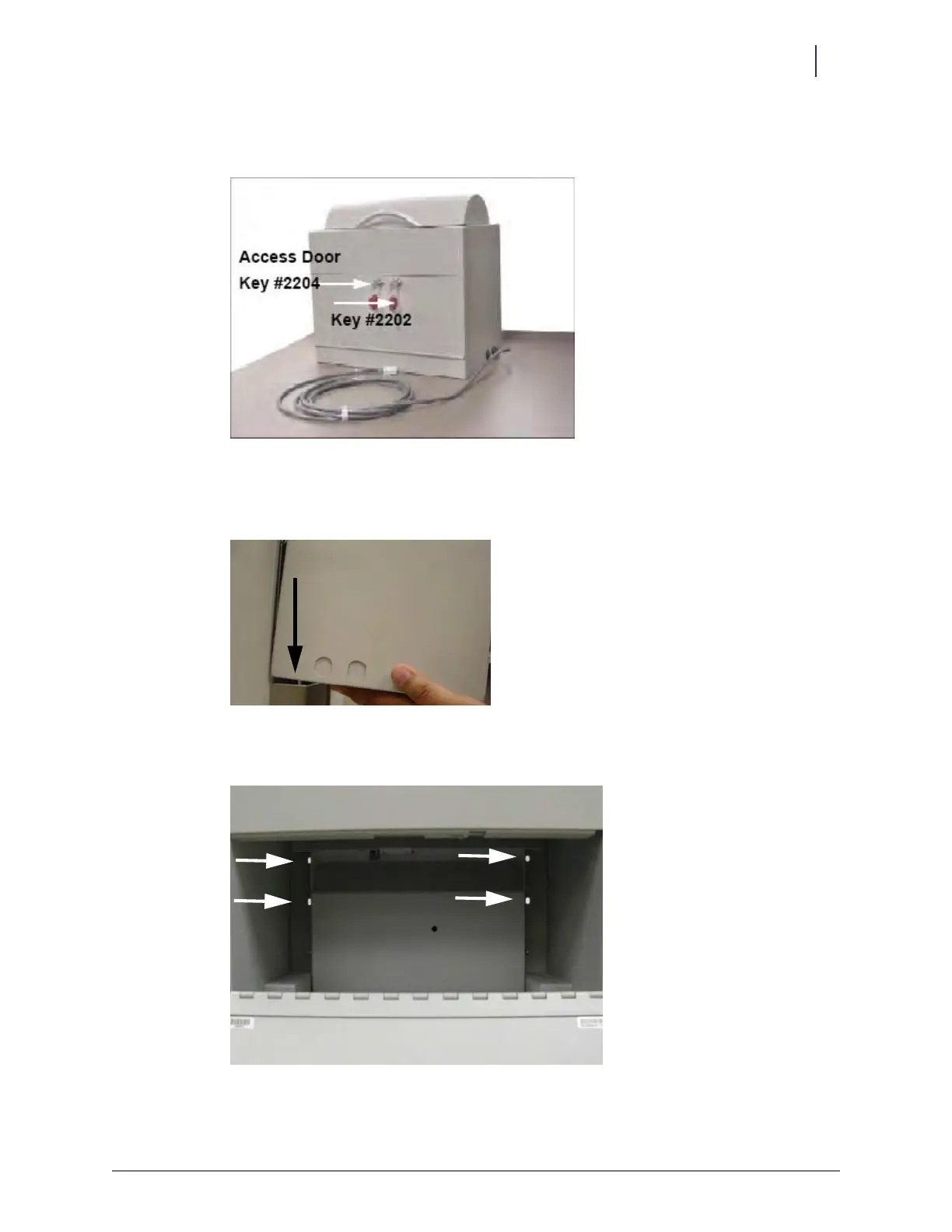

Figure 2-142. Access door and cam lock keys
6. Set the ERB on the bracket ledge, aligning the pins on the ledge to the holes in the bottom of
the ERB.
Figure 2-143. ERB being set onto bracket ledge pins
7. Attach the ERB to the bracket using four 8-32 button hd torx screws.
Figure 2-144. ERB attachment holes
