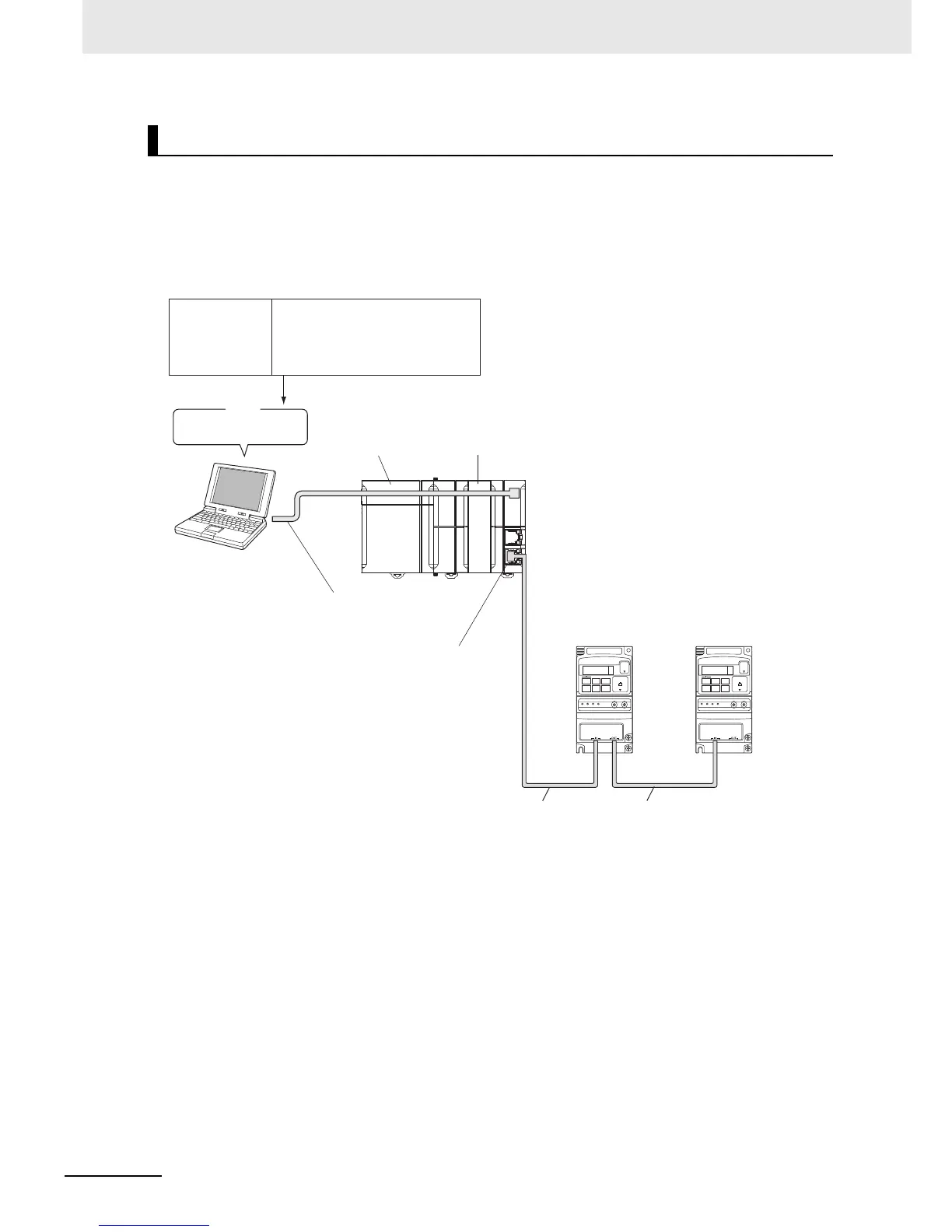

EtherCAT Communication Unit USER’S MANUAL (3G3AX-MX2-ECT)
Master Unit : Machine Automation Controller NJ501-1x00 series
Slave Unit ( 2) : 3G3MX2-A2001 + 3G3AX-MX2-ECT ( 2 sets)
(Notes) This Communication Unit can be used with all the capacities in the SYSDRIVE MX2 series.
Refer to 2-4 NJ501-1x00 Master Setting on page 2-12 for details on Unit installation and setting
method.
NJ501-1x00 Master
Slave Unit
First unit inverter
Node address 1
Slave Unit
2nd unit inverter
Node address 2
Communications cable 1
Length: 5 m
Communications cable 2
Length: 1 m
Peripheral (USB)
port connection
PC
Sysmac Studio
Power
Supply Unit
Used for data
setting
and
monitoring
• Monitoring status
• File management, etc
Master Unit
Machine Automation Controller
NJ501-1x00 series
Built-in EtherCAT port
