Appendices
A-2
EtherCAT Communication Unit USER’S MANUAL (3G3AX-MX2-ECT)
A-1 Specifications
*1 After the EtherCAT Communication Unit is installed, dimension D of the inverter increases by 26.4 mm.
(Dimension D of the inverter varies depending on the capacity. Refer to the manual for the inverter.)

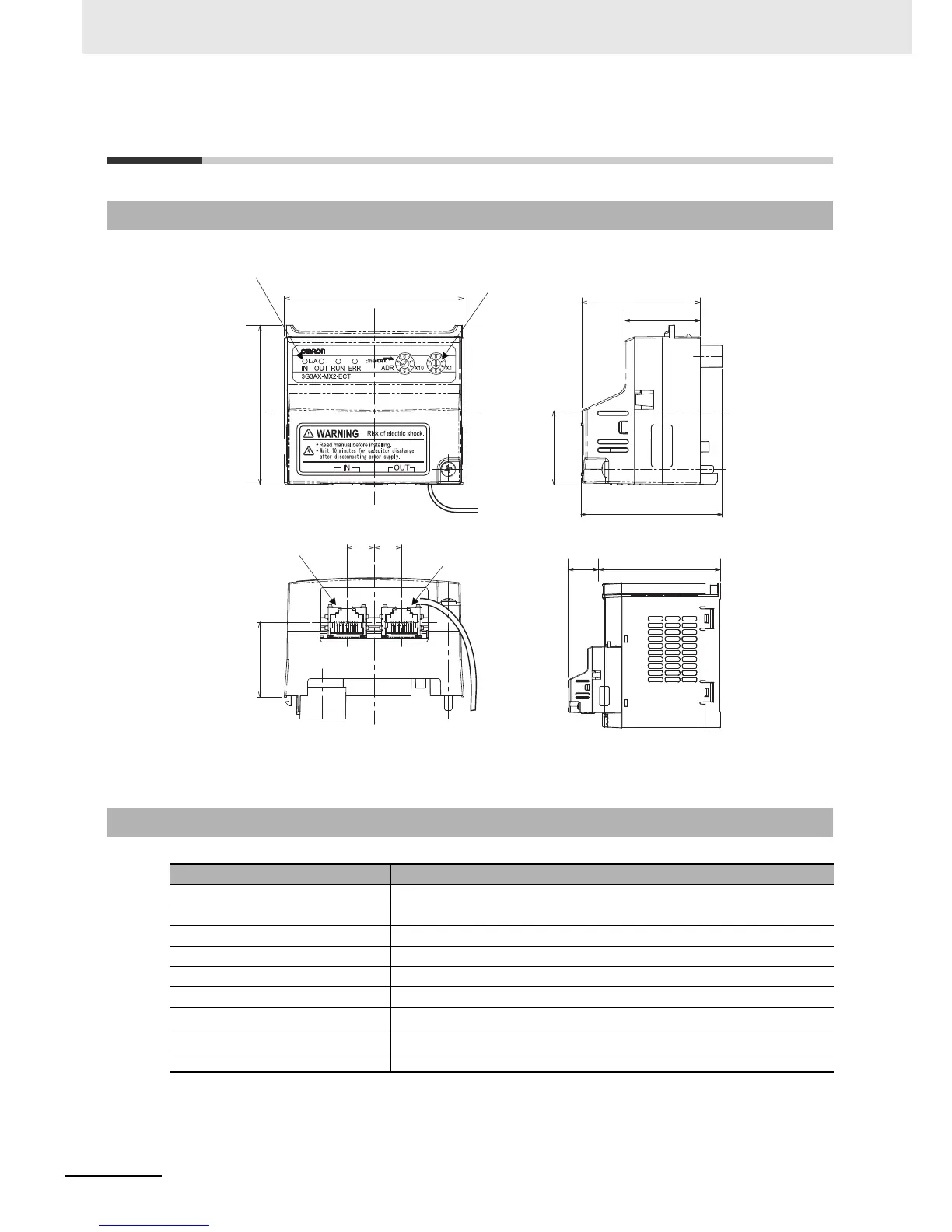

A-1-1 Appearance and Dimensions
A-1-2 Common Specifications
Item Specifications
Model 3G3AX-MX2-ECT
Power supply Supplied from the inverter
Protective structure Open type (IP20)
Temperature 10 to 50C
Storage temperature 20 to 65C
Humidity 20% to 90% RH (with no condensation)
Vibration
5.9 m/s
2
(0.6 G), 10 to 55 Hz
Application environment At a maximum altitude of 1,000 m; indoors (without corrosive gases or dust)
Weight 100 g max.
10.3 10.3
28.2
67.6
27.9
53.1
28.6
Status Indicator
Communications
connector (IN)
Communications
connector (OUT)
Rotary switches for node
address setting
D
*1
26.4mm
*1
FG cable
FG cable
60.0
44.9
