2-2-2 System Configuration Example

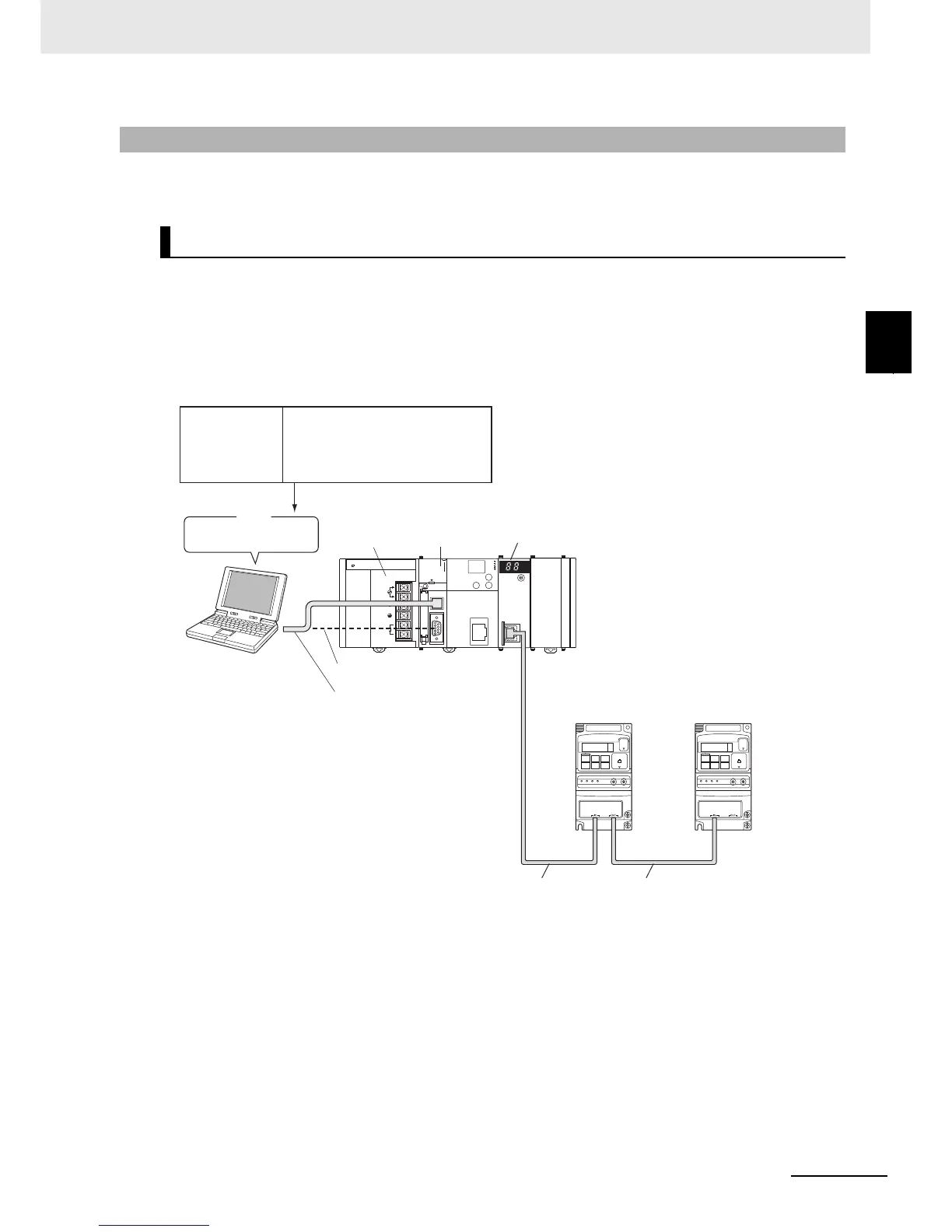

This chapter describes the usage procedures using the system configuration example shown below.
When configuring your actual system, select the units that are required for your system.
Master Unit : CJ2-series PLC + CJ1W-NCx82
Slave Unit ( 2) : 3G3MX2-A2001 + 3G3AX-MX2-ECT ( 2 sets)
(Notes) This Communication Unit can be used with all the capacities in the SYSDRIVE MX2 series.
Refer to 2-3 CJ1W-NCx82 Master Setting on page 2-11 for details on Unit installation and setting
method.
2-2-2 System Configuration Example
CJ1W-NCx82 Master
Master Unit Position Control Unit
(CJ1W-NCx82)
Slave Unit
First unit inverter
Node address 17
Slave Unit
2nd unit inverter
Node address 22
Communications cable 1
Length: 5 m
Communications cable 2
Length: 1 m
CJ2 series
CPU Unit
PC
CX-Programmer
Power
Supply Unit
Peripheral (USB)
port connection
RS-232C port connection
Used for data
setting
and
monitoring
• Monitoring status
• File management, etc
