44

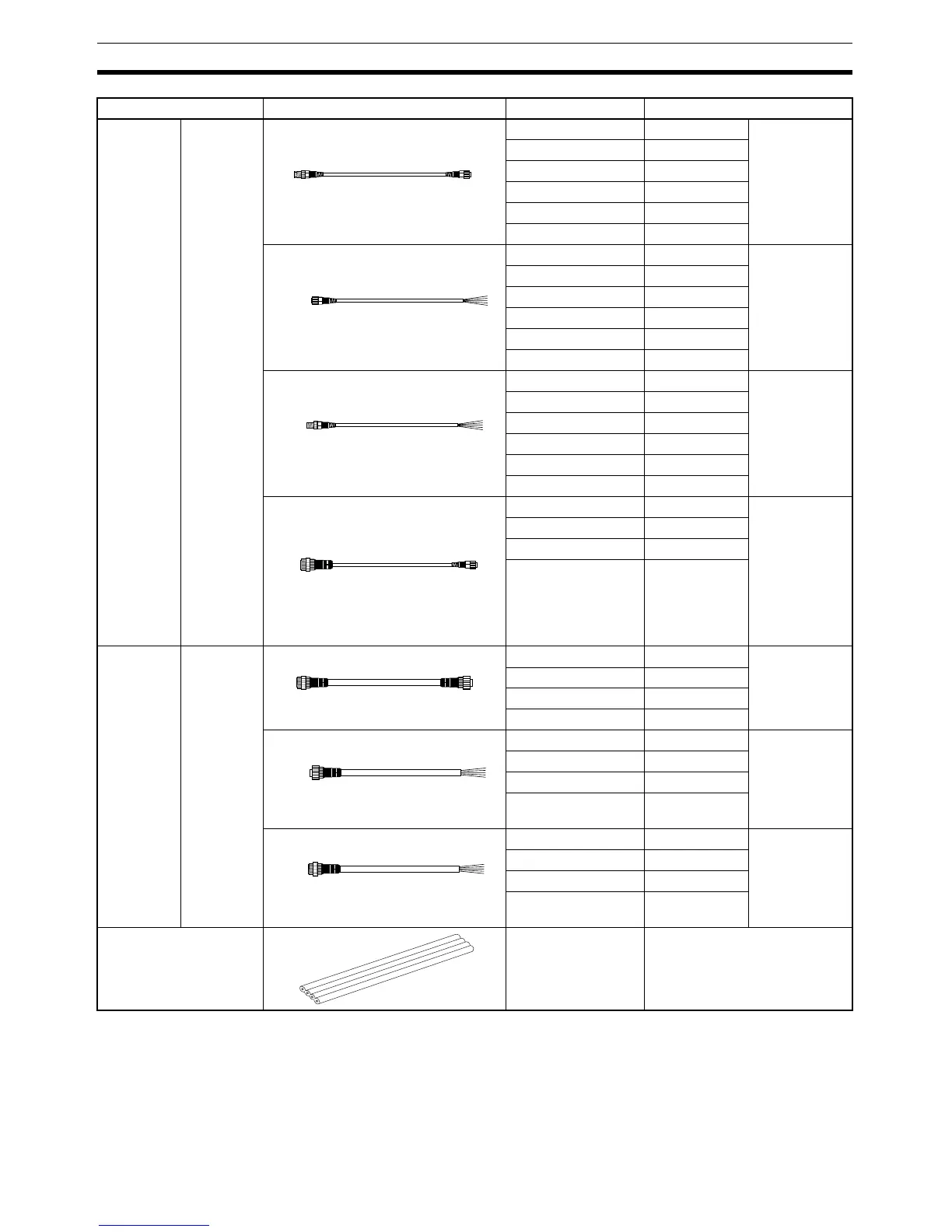

Cables, Connectors, and Related Devices Section 2-3
Note OMRON provides Flat Cable in 100-m lengths. Ask you OMRON representa-
tive if you need a different length.
Thin Cable Cable with
Shielded
Connectors
DCA1-5CNC5W1 Length: 0.5 m Thin cable with
shielded,
micro-size
(M12) connec-
tors on both
ends
DCA1-5CN01W1 Length: 1 m
DCA1-5CN02W1 Length: 2 m
DCA1-5CN03W1 Length: 3 m
DCA1-5CN05W1 Length: 5 m
DCA1-5CN10W1 Length: 10 m
DCA1-5CNC5F1 Length: 0.5 m Thin cable with
shielded,
micro-size
(M12) connec-
tor on one end
(Socket:
Female)
DCA1-5CN01F1 Length: 1 m
DCA1-5CN02F1 Length: 2 m
DCA1-5CN03F1 Length: 3 m
DCA1-5CN05F1 Length: 5 m
DCA1-5CN10F1 Length: 10 m
DCA1-5CNC5H1 Length: 0.5 m Thin cable with
shielded,
micro-size
(M12) connec-
tor on one end
(Plug: Male)
DCA1-5CN01H1 Length: 1 m
DCA1-5CN02H1 Length: 2 m
DCA1-5CN03H1 Length: 3 m
DCA1-5CN05H1 Length: 5 m
DCA1-5CN10H1 Length: 10 m
DCA1-5CN01W5 Length: 1 m Thin cable with
shielded con-
nectors on
both ends
Mini-size plug
(male) and
micro-size
(M12) socket:
(female)
DCA1-5CN02W5 Length: 2 m
DCA1-5CN05W5 Length: 5 m
DCA1-5CN10W5 Length: 10 m
Thick Cable Cable with
Shielded
Connectors
DCA2-5CN01W1 Length: 1 m Thick cable
with shielded,
mini-size con-
nectors on
both ends
DCA2-5CN02W1 Length: 2 m
DCA2-5CN05W1 Length: 5 m
DCA2-5CN10W1 Length: 10 m
DCA2-5CN01F1 Length: 1 m Thick cable
with shielded,
mini-size con-
nector on one
end (Socket:
Female)
DCA2-5CN02F1 Length: 2 m
DCA2-5CN05F1 Length: 5 m
DCA2-5CN10F1 Length: 10 m
DCA2-5CN01H1 Length: 1 m Thick cable
with shielded,
mini-size con-
nector on one
end (Plug:
Male)
DCA2-5CN02H1 Length: 2 m
DCA2-5CN05H1 Length: 5 m
DCA2-5CN10H1 Length: 10 m
Flat Cable DCA4-4F10 Dimensions: 10.16 × 2.54 mm
Length: 100 m
Cable Appearance Model Specifications
M12 size M12 size
Plug
(Male)
Socket
(Female)
Thin cable
M12 size
Socket
(Female)
Thin cable
M12 size
Plug
(Male)
Thin cable
Mini-size M12 size
Plug
(Male)
Socket
(Female)
Thin cable
Mini-size Mini-size
Plug
(Male)
Socket
(Female)
Thick cable
Mini-size
Socket
(Female)
Thick cable
Mini-size
Plug
(Male)
Thick cable
