Omron DEVICENET - Connectors for Node Connections

48
Cables, Connectors, and Related Devices Section 2-3
2-3-2 Connectors for Node Connections

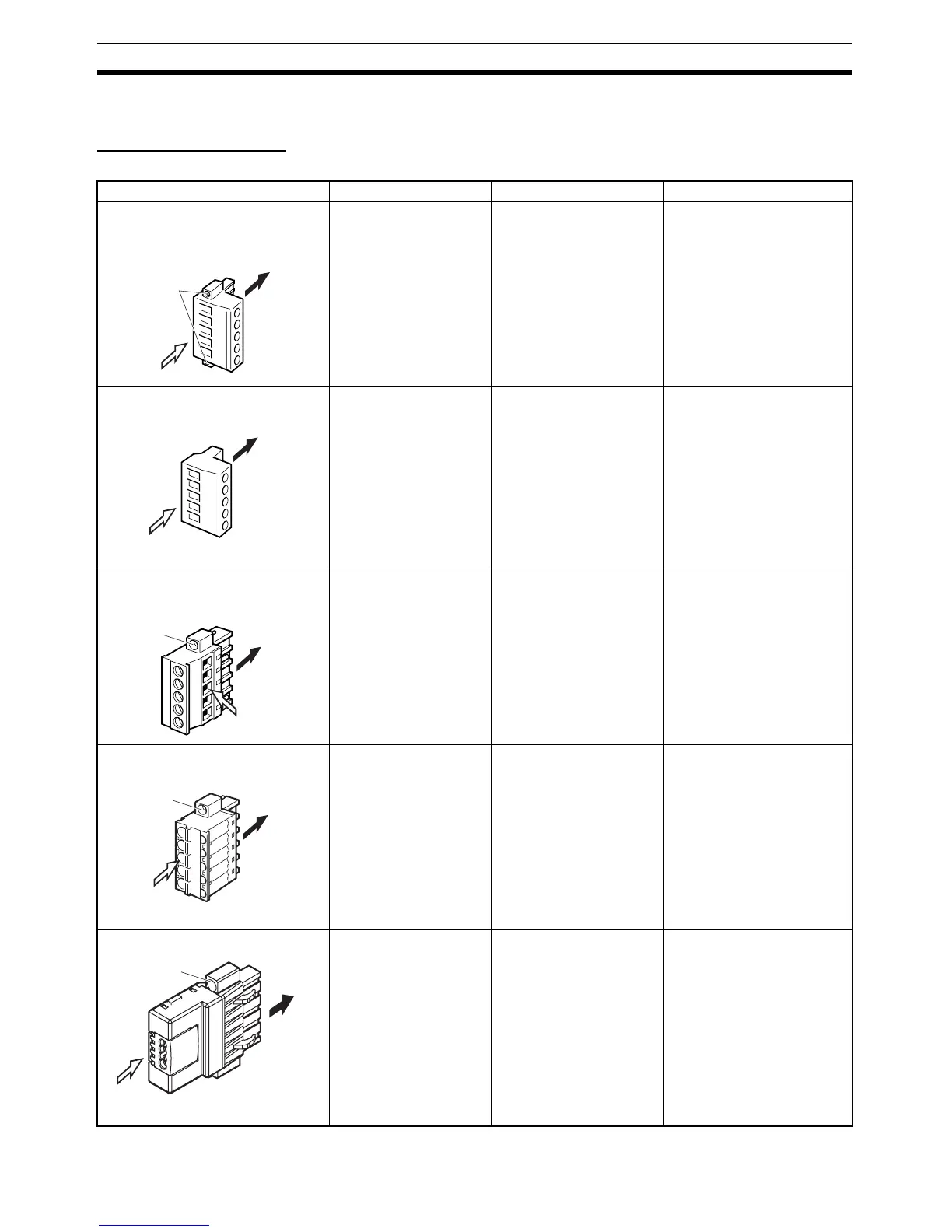

Standard Connectors The following table shows the standard connectors provided with Masters,
Slaves, and T-branch Taps.
Name Model Specifications Remarks
Straight Connector with Attachment
Screws
XW4B-05C1-H1-D Straight connector with
attachment screws
The insertion and wiring
directions are the same.
This connector is provided
with the DCN1-1C/2C/3C/4C
T-branch Taps as well as
Masters and Slaves other
than those listed in the note.
COMBICON Plug PHOENIX CONTACT
MSTB 2.5/5-ST-5.08 AU
Straight connector with-
out connector attachment
screws.
The insertion and wiring
directions are the same.
This connector is provided
with the Masters and Slaves
listed in the note.
Right-angle Connector with Attach-
ment Screws
XW4B-05C1-VIR-D Right-angle connector
with attachment screws
The insertion and wiring
directions are perpendicu-
lar.
This connector is provided
with the DCN1-2R/4R T-
branch Taps.
Straight Clamp Connector with
Attachment Screws
XW4G-05C1-H1-D Straight connector with
attachment screws
The insertion and wiring
directions are the same.
This connector is provided
with the DCN1-1NC/3NC T-
branch Taps and DRT2-
series Masters and Slaves.
Flat Cable Connector DCN4-SF4D Flat cable pressure-weld
connector with attachment
screws
---
Attachment
screws
Insertion
direction
Wiring
direction
Insertion
direction
Wiring
direction
Attachment
screw
Insertion
direction
Wiring
direction
Insertion
direction
Wiring
direction
Attachment
screw
Insertion
direction
Attachment
screw
Wiring
direction
