DeviceNet-compatible Devices Section 1-2

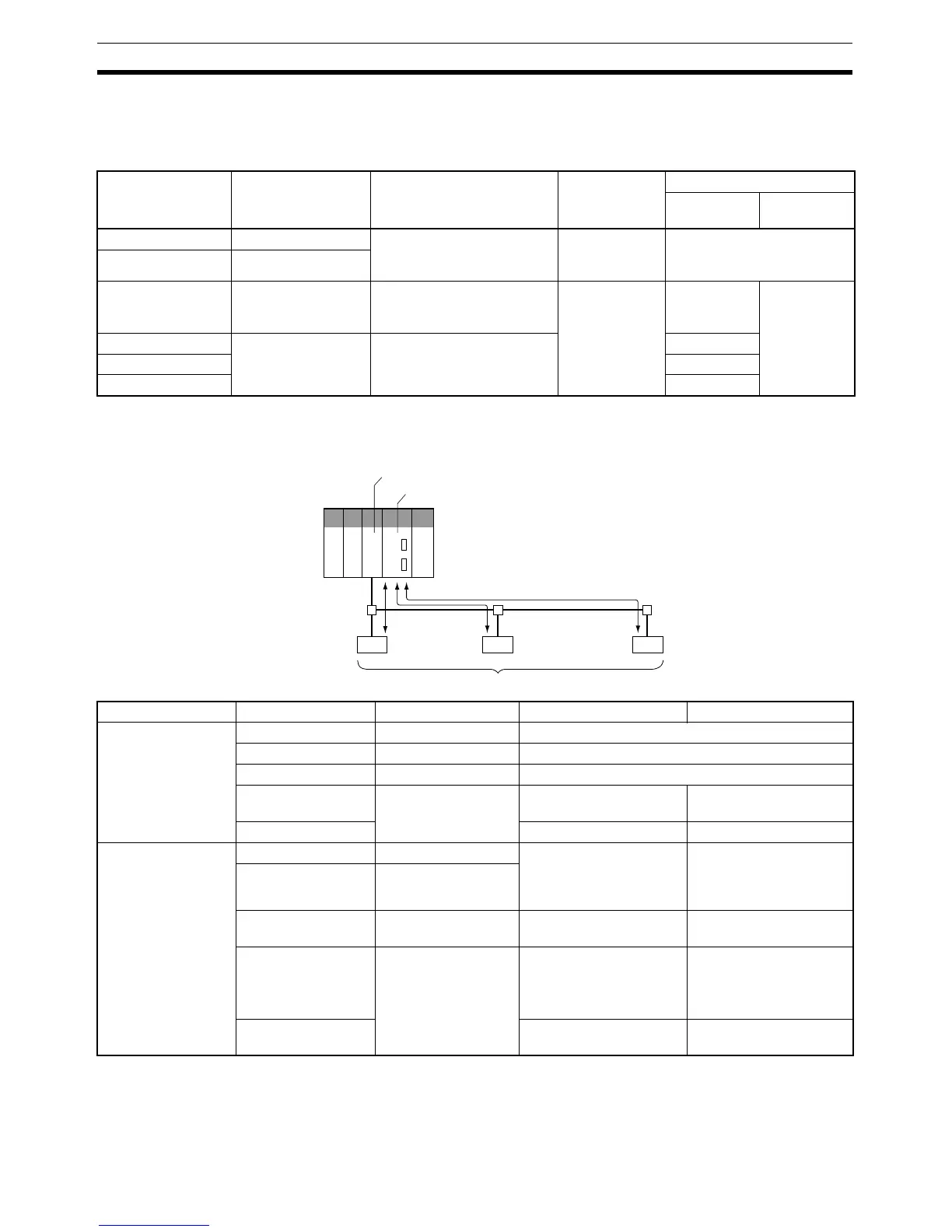

1-2 DeviceNet-compatible Devices
1-2-1 Master Unit Models
1-2-2 DeviceNet Functions of OMRON Master Units
Remote I/O Master Function
Applicable PLC Master Unit model
number
Mounting position Master/Slave
functions
Max. number of Units
With
Configurator
Without
Configurator
CS Series CS1W-DRM21(-V1) CPU Rack or Expansion I/O
Rack (Classified as CPU
Bus Units)
Master and
Slave functions
16
CJ Series CJ1W-DRM21
CVM1, CV Series CVM1-DRM21-V1 CPU or Expansion CPU
Rack (Classified as CPU
Bus Units)
Master func-
tion only
16 1
CS Series C200HW-DRM21-V1 CPU Rack or Expansion I/O
Rack (Classified as Special
I/O Units)
16
C200HZ/HX/HG/HE 10 or 16
C200HS 10
DeviceNet
DeviceNet Master Unit
CPU Unit
Remote I/O communications
Slaves
Item Master Model Without Configurator With Configurator
Max. No. of Slave
nodes per Master
CS Series CS1W-DRM21(-V1) 63 nodes
CJ Series CJ1W-DRM21 63 nodes
CVM1, CV Series CVM1-DRM21-V1 63 nodes
CS Series, C200HX/
HG/HE
C200HW-DRM21-V1 50 nodes 63 nodes
C200HS 32 nodes 63 nodes
Max. No. of control
points per Master
CS Series CS1W-DRM21(-V1) 2,048 pts (64 input /64
output words) or
16,000 pts (500 input/500
output words)
32,000 pts (500 words x
4 blocks)
CJ Series CJ1W-DRM21
CVM1, CV Series CVM2-DRM21-V1 2,048 pts (64 input/ 64
output words)
6,400 (100 words x 4
blocks
CS Series, C200HX/
HG/HE
C200HW-DRM21-V1 1,600 pts (50 input/50
output words)
Without messages:
4,800 pts
With messages:
1,600 pts
C200HS 1,024 pts (32 input/32
output words)
1,280
