DeviceNet-compatible Devices Section 1-2
1-2-3 Types of Slaves
The following classifications are used for DeviceNet Slaves.
For more details on the General-purpose Slaves, Environment-resistive
Slaves, and Special Slaves, refer to the DeviceNet DRT1 Series Slaves Oper-
ation Manual (W347) for DRT1-series Slaves and the DeviceNet DRT2 Series
Slaves Operation Manual (W404) for DRT2-series Slaves.
Refer to the DeviceNet MULTIPLE I/O TERMINAL Operation Manual (W348)
for more details on the MULTIPLE I/O TERMINAL Slaves.
General-purpose Slaves Slaves with I/O functions for 32 or fewer inputs and 32 or fewer outputs.
Environment-resistive
Slaves
Slave with I/O functions for I/O that uses a round, waterproof connector con-
nected to a communications cable.
Special Slaves Slaves with more than 32 inputs or 32 outputs or Slaves with functions other
than I/O.
MULTIPLE I/O TERMINALs These are high-density I/O Block Slaves.

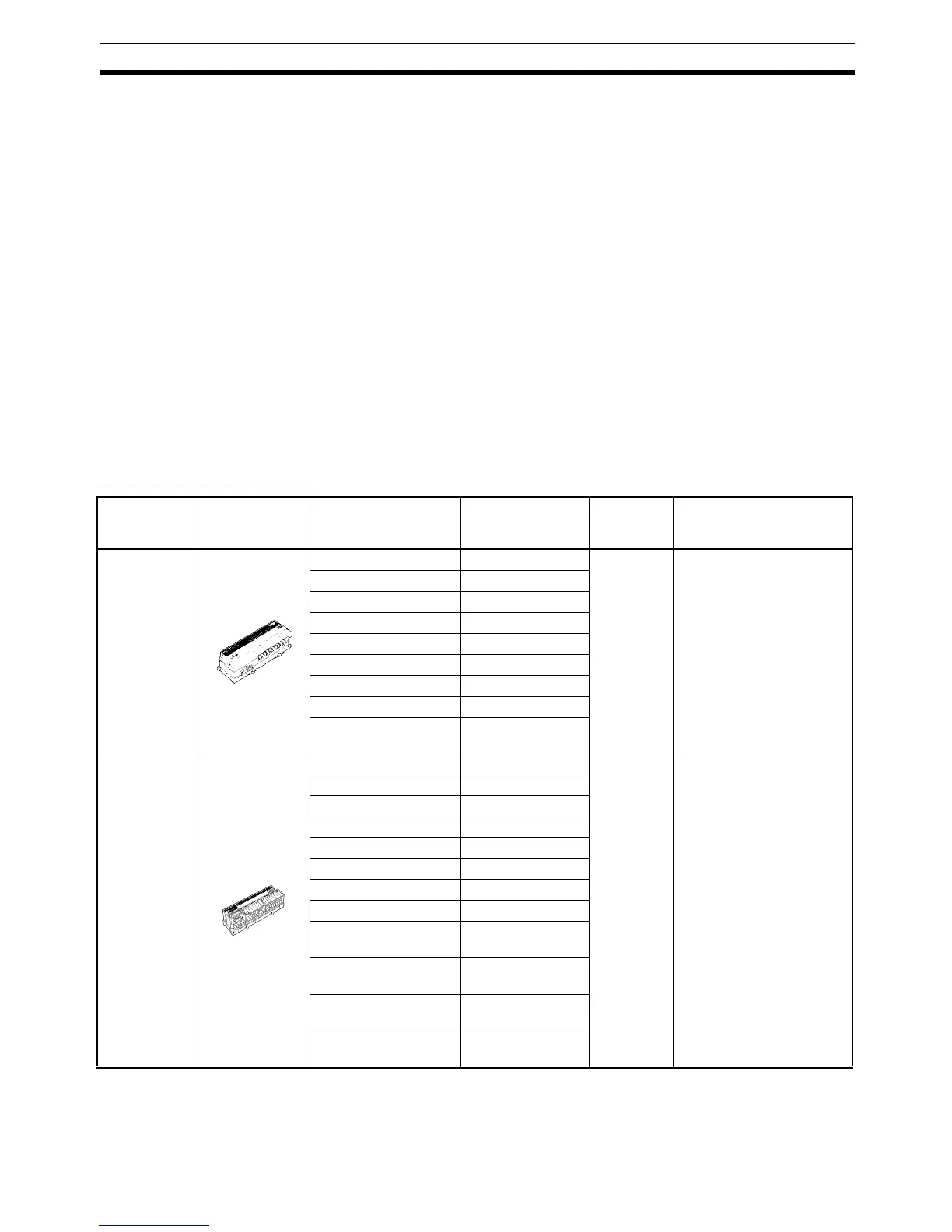

1-2-3-1 DRT1-series Slaves
General-purpose Slaves
Name Appearance I/O points Model number Communi-
cations
cable
Remarks
Remote I/O
Ter mi nals wit h
Transis to rs
8 input points (NPN) DRT1-ID08 Normal
square con-
nectors
---
8 input points (PNP) DRT1-ID08-1
16 input points (NPN) DRT1-ID16
16 input points (PNP) DRT1-ID16-1
8 output points (NPN) DRT1-OD08
8 output points (PNP) DRT1-OD08-1
16 output points (NPN) DRT1-OD16
16 output points (PNP) DRT1-OD16-1
8 input points+8 output
points (NPN)
DRT1-MD16
Remote I/O
Ter mi nals wit h
Transistors
and 3-tier Ter-
minal Block
16 input points (NPN) DRT1-ID16T Simple wiring (not neces-
sary to tighten multiple
wires together and wiring
locations are easy to
understand)
The DRT1-@D16TA(-1)
does not need a separate
power supply for internal
circuits (uses the communi-
cations power supply).
16 input points (PNP) DRT1-ID16T-1
16 input points (NPN) DRT1-ID16TA
16 input points (PNP) DRT1-ID16TA-1
16 output points (NPN) DRT1-OD16T
16 output points (PNP) DRT1-OD16T-1
16 output points (NPN) DRT1-OD16TA
16 output points (PNP) DRT1-OD16TA-1
8 input points+8 output
points (NPN)
DRT1-MD16T
8 input points+8 output
points (PNP)
DRT1-MD16T-1
8 input points+8 output
points (NPN)
DRT1-MD16TA
8 input points+8 output
points (PNP)
DRT1-MD16TA-1
