Wiring Methods Section 2-4

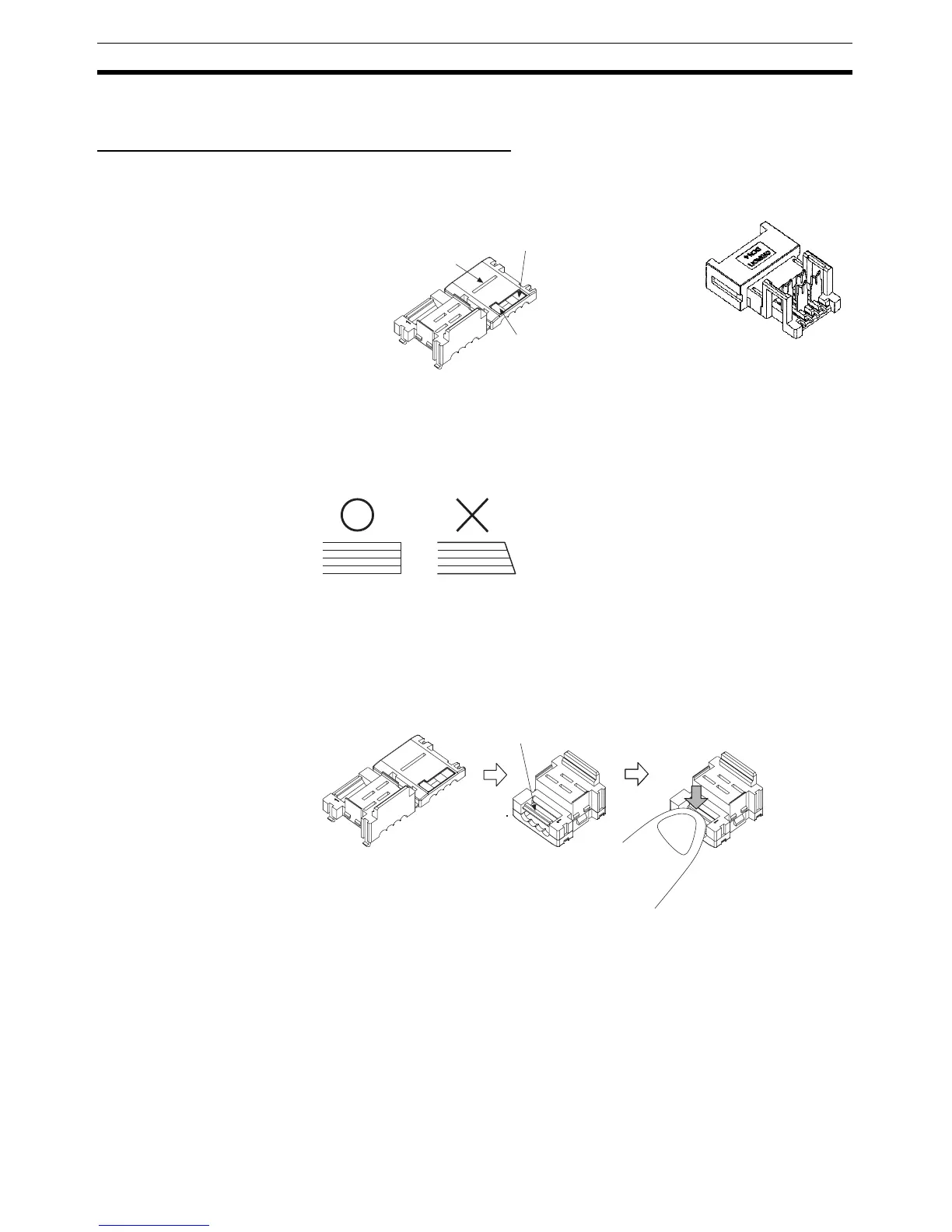

2-4-5 Flat Cable I (Standard)
Preparing DCN4-TR4-1 Flat Connector Sockets
Component Names
■ Cutting the Cable (when Extending Cable or Connecting Terminating
Resistance)
Cut the cable perpendicular to the length.
To prevent short-circuits, cut the cable with a sharp blade, such as wire cut-
ters, and be sure that there are no whiskers on the wires.
■ Setting the Cable Stopper (when Extending Cable or Connecting
Terminating Resistance)
A stopper must be set in advance when extending a line or connecting termi-
nating resistance.
Close the cover, secure the hooks, and then press down on the cable stopper
until it clicks into place.
Cover Housing
Cable confirmation slot
Cable labels
(Flat cable: black, blue, white, and red)
Black
Cable stopper
Press until you hear the stopper
clicks and remains in place.
To Next Page
