Wiring Methods Section 2-4

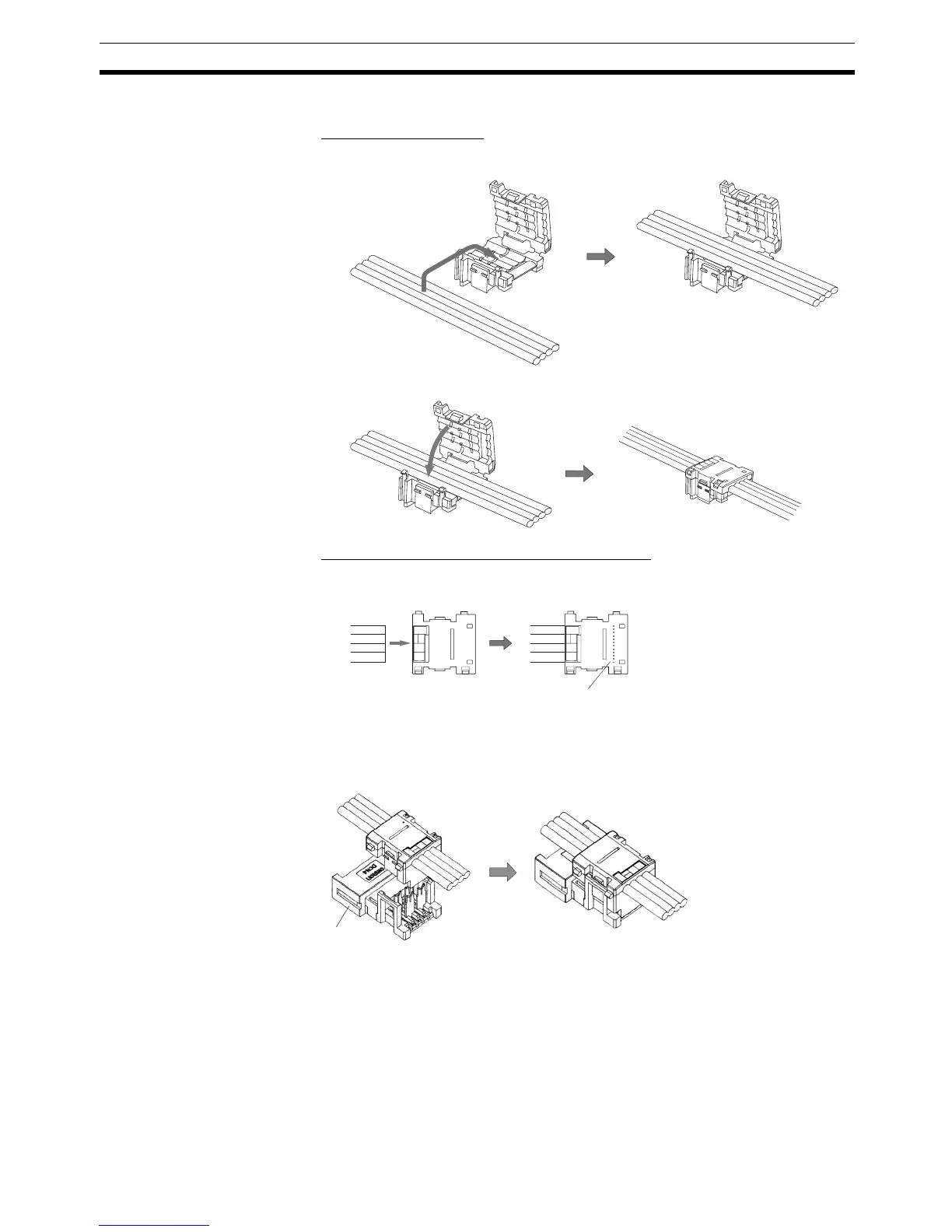

■ Attaching the Cable
T-branch Connections
1,2,3... 1. Align the cable labels and cable colors and insert the cable into the cover.
2. Hold the cable and secure it with the hooks.
Line Extensions and Terminating Resistance
Insert the cable end all the way into a cover with the cable stopper already
set.
■ Attaching the Housing
Confirm that the cable labels and cable colors match and then temporarily
secure the housing to the cover.
Note The housing cannot be removed from the cover once it has been attached.
The connector may be damaged if the housing is forcefully removed.
■ Pressure-welding the Connector
The connector is pressure-welded using the DWT-A01 Pliers.
Location of cable stopper
Housing
To Next Page
