Wiring Methods Section 2-4

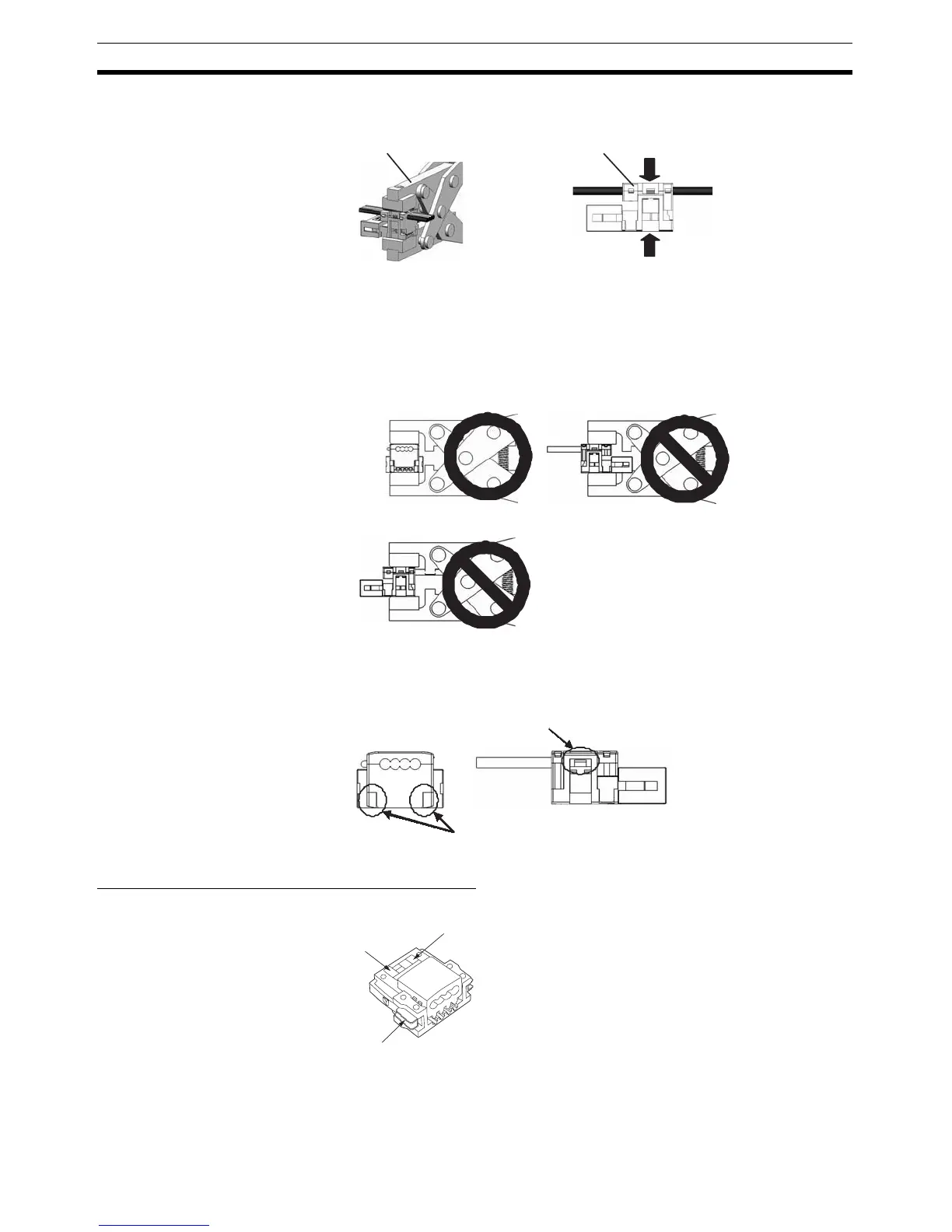

1,2,3... 1. As shown below, align the center (see arrows) of the connector cover with
the center of the pressure-welding block on the Pliers.
2. Squeeze firmly on the Pliers until the lock on the connector clicks into
place.
Note (1) Do not pressure-weld the connector cover at the edges.
(2) Do not pressure-weld the connector cover at the back of the pressure-
welding block.
(3) Set the connector in the correct orientation.
3. After attaching the cable, confirm that it is properly pressure-welded as
shown below.
Preparing DCN4-BR4 Flat Connector Plugs
Component Names
■ Cutting the Cable
Cut the cable perpendicular to the length.
Pliers Connector cover
OK NG
NG
Be sure the connector is locked on both the left and right sides.
Be sure there are no
s here.
Cable labels
(Flat cable: black, blue, white, and red)
Lock lever
Black
To Next Page
