Wiring Methods Section 2-4

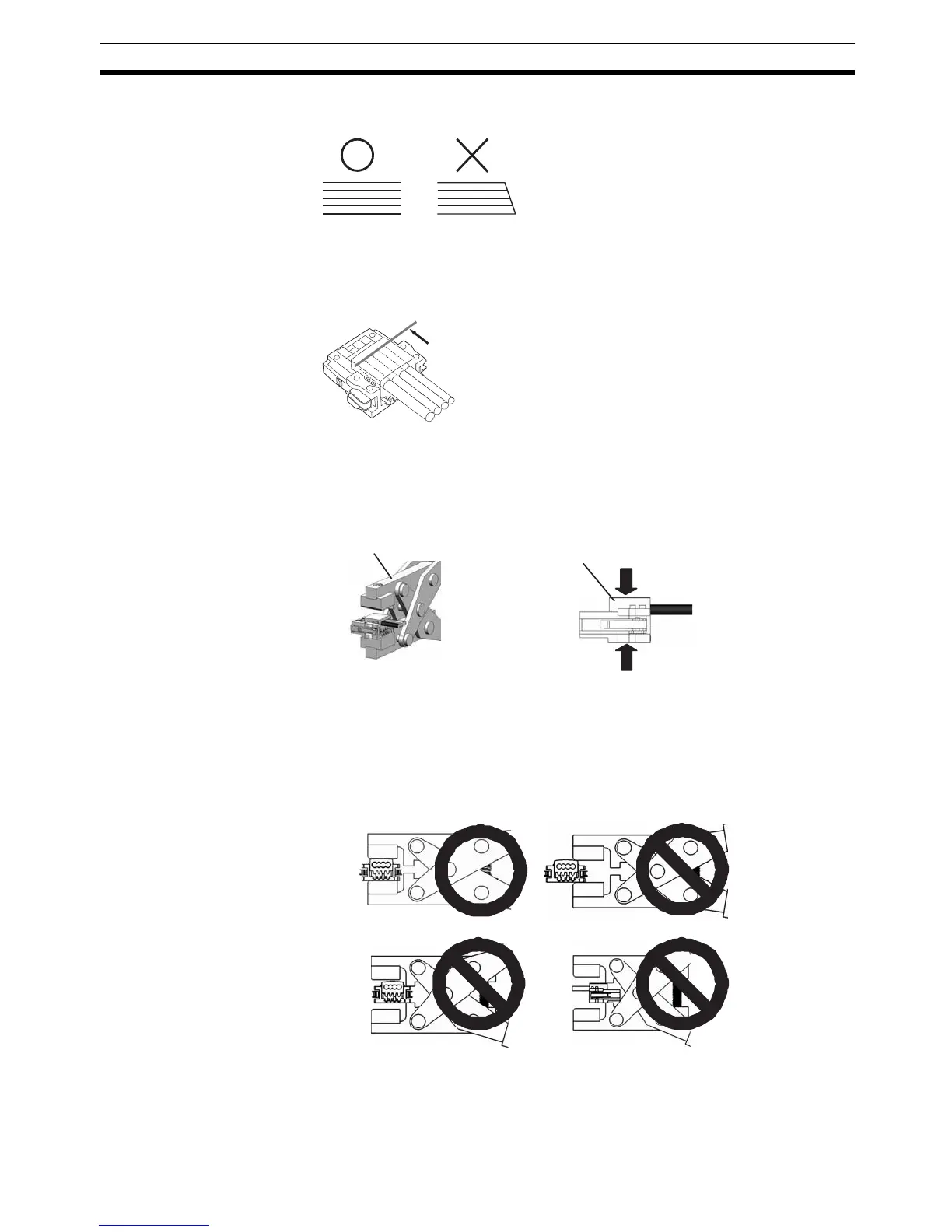

To prevent short-circuits, cut the cable with a sharp blade, such as wire cut-
ters, and be sure that there are no whiskers on the wires.
■ Attaching the Cable
Align the cable labels and cable colors and insert the cable.
Confirm that the cable is inserted all the way to the back. (The cover is semi-
transparent.)
■ Insert the cable to this point.
The connector is pressure-welded by using the DWT-A01 Pliers.
1,2,3... 1. As shown below, align the center (see arrows) of the connector cover with
the center of the pressure-welding block on the DWT-A01 Pliers.
2. Squeeze firmly on the Pliers until the lock on the connector clicks into
place.
Note (1) Do not pressure-weld the connector cover at the edges.
(2) Do not pressure-weld the connector cover at the back of the pressure-
welding block.
(3) Set the connector in the correct orientation.
Insert the cable to this point.
Pliers
Connector cover
OK
NG
NG
NG
