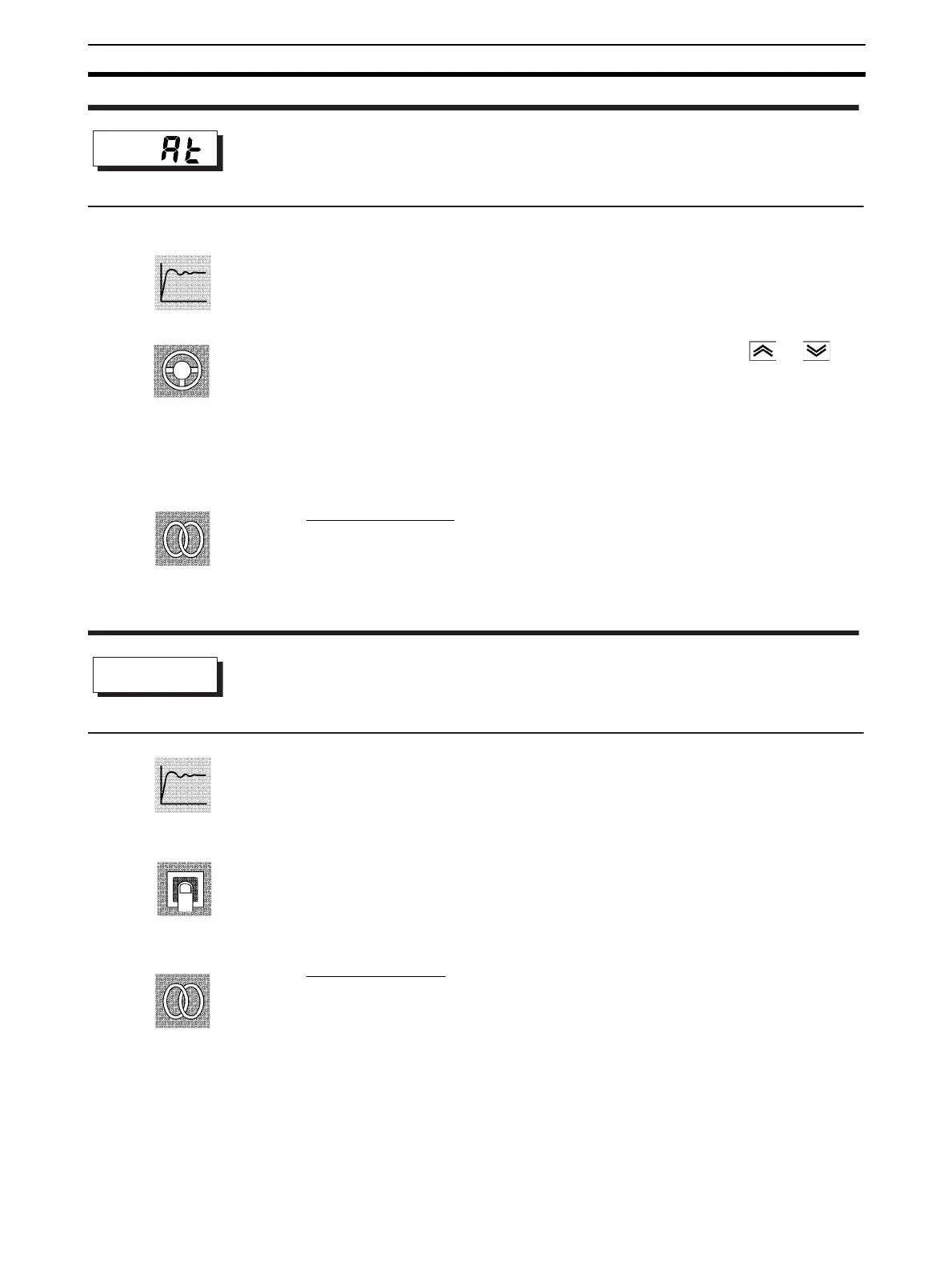

Adjustment Level Section 5-4

This parameter executes AT (auto-tuning).

• When you execute auto-tuning, the optimum PID parameters “propor-

tional band,” “integral time” and “derivative time” for the set point during

program execution are automatically set by forcibly changing the manipu-

lated variable to calculate the characteristics of the control target

• Normally, this parameter is set to “off”. If you press the or key,

the parameter is turned ON and AT is executed.

• AT cannot be executed when control has stopped or during ON/OFF con-

trol.

• When AT execution ends, the parameter setting automatically returns to

“off”.

■ Related parameters

“Proportional band” “Integral time” “Derivative time” (adjustment level)

“PID ON/OFF” (initial setting level)

This parameter enables/disables writing of parameters to the E5AZ/E5EZ

from the host (personal computer) by communications.

ON: Writing enabled

OFF: Writing disabled

Default: OFF

■ Related parameter

“MB command logic switching” (advanced function setting level) (page 119)

“Communications unit No.” “Baud rate” “Data length” “Stop bits” “Parity” (com-

munications setting level)

AT execute/cancel

The E5AZ/E5EZ must be in opera-

tion, and control must be 2-PID con-

trol.

Function

Example

of use

See

Communications writing

The communications unit (E53-AZ01

or E53-AZ03) must be mounted on

the E5AZ/E5EZ.

cmwt

Function

Setting

See
