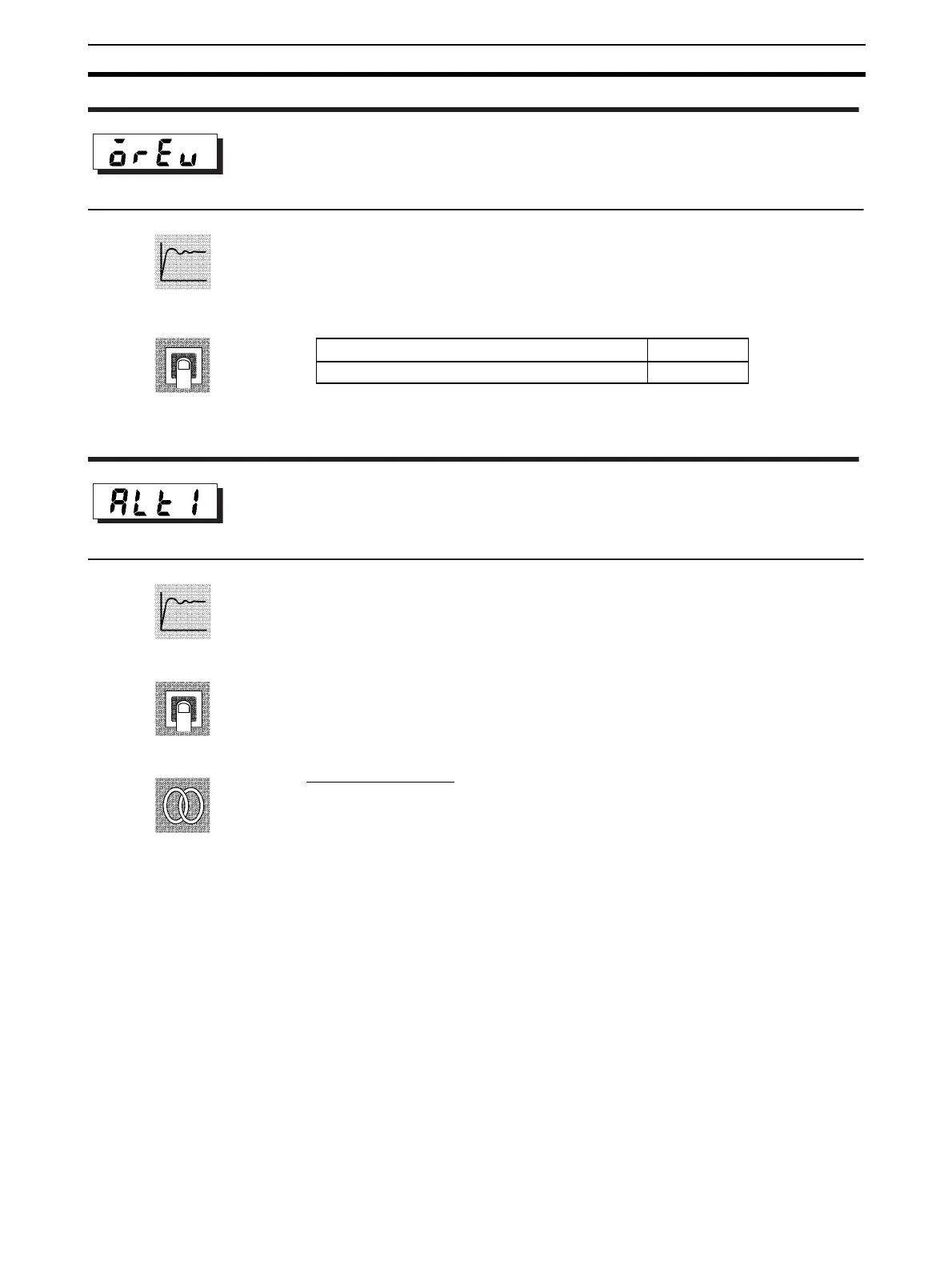

Initial Setting Level Section 5-5
• “Direct operation” refers to control where the manipulated variable is
increased according to the increase in the process value. Alternatively,
“reverse operation” refers to control where the manipulated variable is
increased according to the decrease in the process value.
• Select one of the following alarm 1 types:
Deviation/Deviation range/Absolute value
Refer to the alarm type list on the following page.
■ Related parameters
“Alarm value 1” (operation level)
“Alarm value upper limit 1” “Alarm value lower limit 1” (operation level)
“Standby sequence reset” “Alarm 1 open in alarm” “Alarm 1 hysteresis”
“Alarm 1 latch” (advanced function setting level)
Direct/reverse operation
Setting Range
Default
or-r: Reverse operation /or-d: Direct operation or-r
Function
Setting
Alarm 1 type
The alarm 1 type must be supported.
Function
Setting
See
To Next Page
