Advanced Function Setting Level Section 5-6

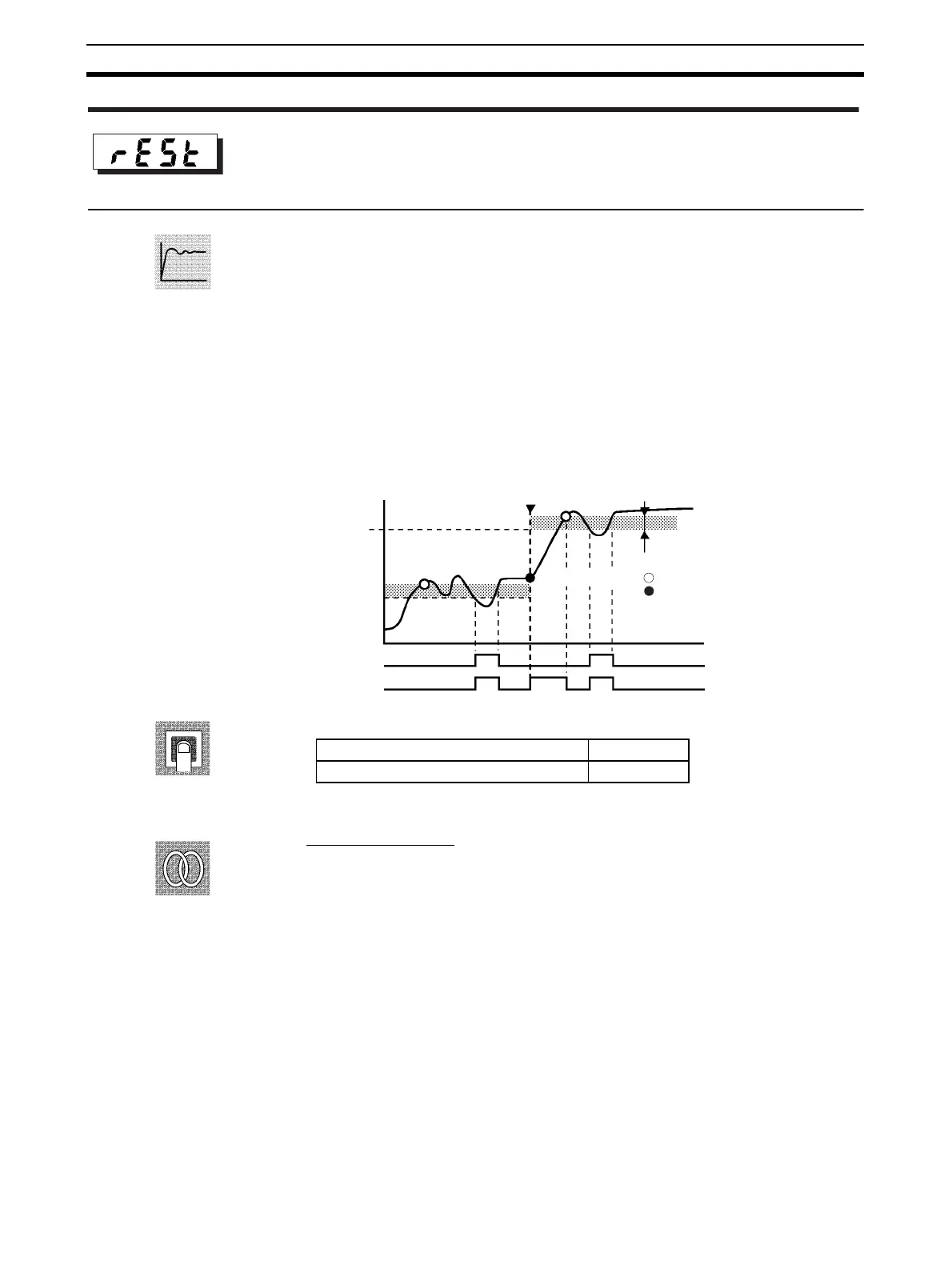

• This parameter selects the conditions for enabling reset after the standby
sequence of the alarm has been canceled.
• Output is turned OFF when the initial setting level, communications set-
ting level, or advanced function setting level is switched to.
• Condition A:
Control started (including power ON), and set point, alarm value (alarm
value upper- and lower-limit) or input shift value (upper- and lower-limit
temperature input shift value) changed
• Condition B:
Power ON
• The following example shows the reset action when the alarm type is
lower-limit alarm with standby sequence.
■ Related parameters
“Alarm 1 type” “Alarm 2 type” “Alarm 3 type” (initial setting level)
“Alarm 1 to 3 latch” (advanced function setting level)
Standby sequence reset
The alarm 1 to 3 type must be set to
“with standby sequence.”
Function
: Standby sequence canceled poin
t
: Standby sequence reset point
Alarm output: Condition A
Alarm out
p
ut: Condition B
Alarm point
(after change)
Alarm point
SP change
Condition A only
Alarm hysteresis
Condition A only
Setting Range Default
a: Condition A / b: Condition B a
Setting
See
