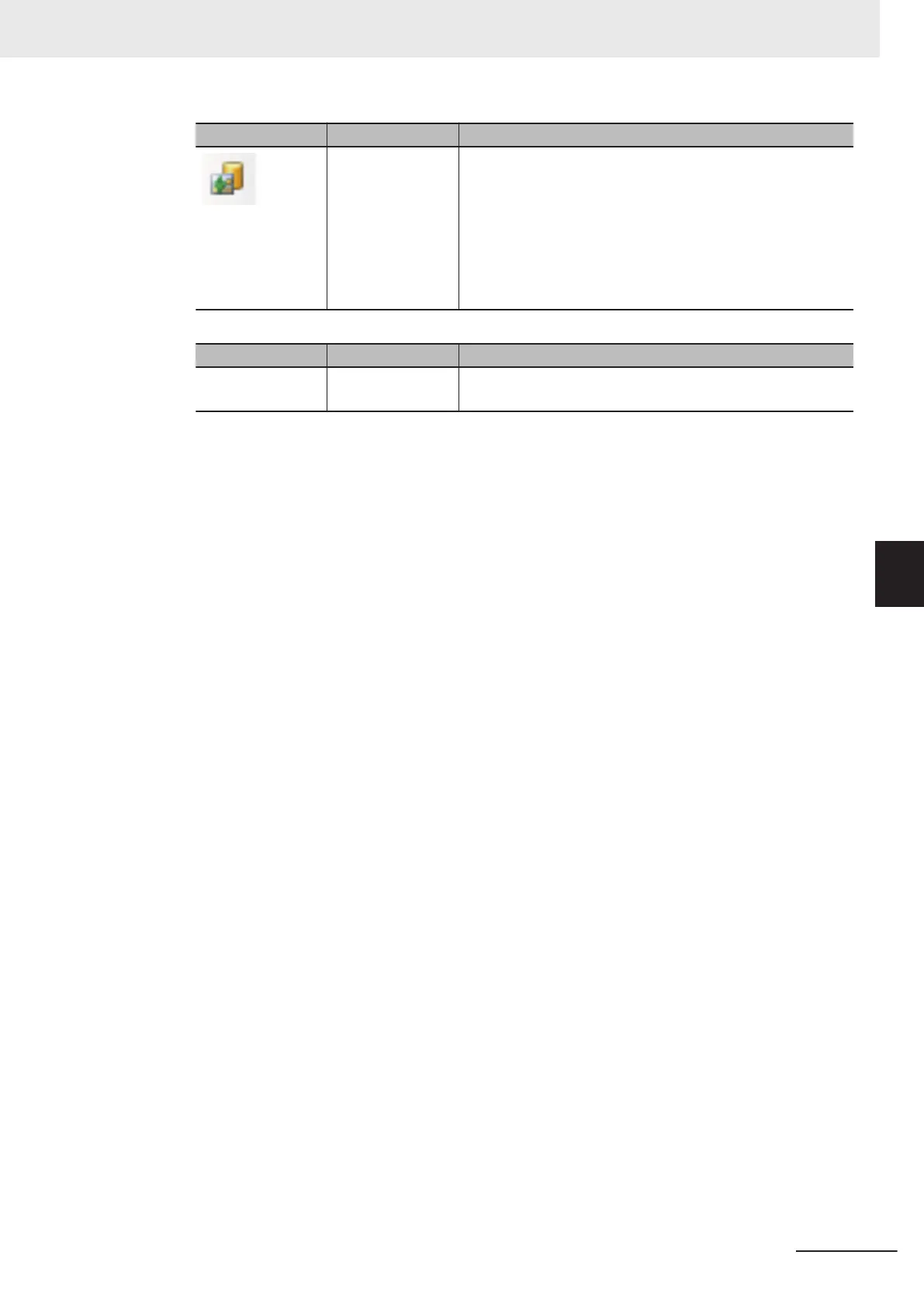

Icon Function Description
Registered image Opens the Registered image dialog to manage the Regis-
tered images.
You can save images used for model registration and refer-
ence registration as registration images and can reference
them later and use them for reregistration and adjustment of
reference positions.
Refer to 6-6 Managing Images used for Model Registration
and Reference [Registered Image Manager] on page 6 - 38.
• Display:
Icon Function Description
(Npne) Large buttons Enlarges the size of the icons/buttons displayed on the Edit
flow button area.
• Edit flow:
This is available only when the Edit flow tab is selected in the Edit item tab area.
The items displayed when clicking this are same as buttons in the Edit flow button area except
for the Menu item.
• Scene variable:
Scene variable: This is available only when the Scene variable tab is selected in the Edit item
tab area.
• System variable:
System variable: This is available only when the System variable tab is selected in the Edit
item tab area.
(d) Scene tab:
Possible to switch, copy/paste, and delete scenes.
For more details, refer to 5-5-3 Editing Scenes [TDM Editor] on page 5 - 33.
(e) Unit list (flow):
A list of processing units composing the flow is displayed.
A measurement flow for a scene can be created by adding processing items to the Unit list (flow)
from the Unit added tab.
(f) Size slider:
Dragging the slider to the right makes the unit list bigger and to the left makes it smaller.
(g) Unit added tab:
This is available only when the Edit flow tab is selected in the Edit item tab area. Clicking it dis-
plays the processing items with a list. A selected processing item from the list can be added to a
measurement flow.
For more details, refer to 5-5-3 Editing Scenes [TDM Editor] on page 5 - 33.
(h) Unit area:
This area provides a setting function and test measurement function for a processing unit selected
on the Unit list (flow).
The image window for a processing unit selected on the Unit list (flow) is displayed.
5 Creating Measurement Scenes
5 - 17
FH/FHV Series Vision System User’s Manual (Z365-E1)
5-5 Using Variables to Edit the Flow [TDM Editor]
5
5-5-1 Edit Flow Screen

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
