Omron fh series User Manual

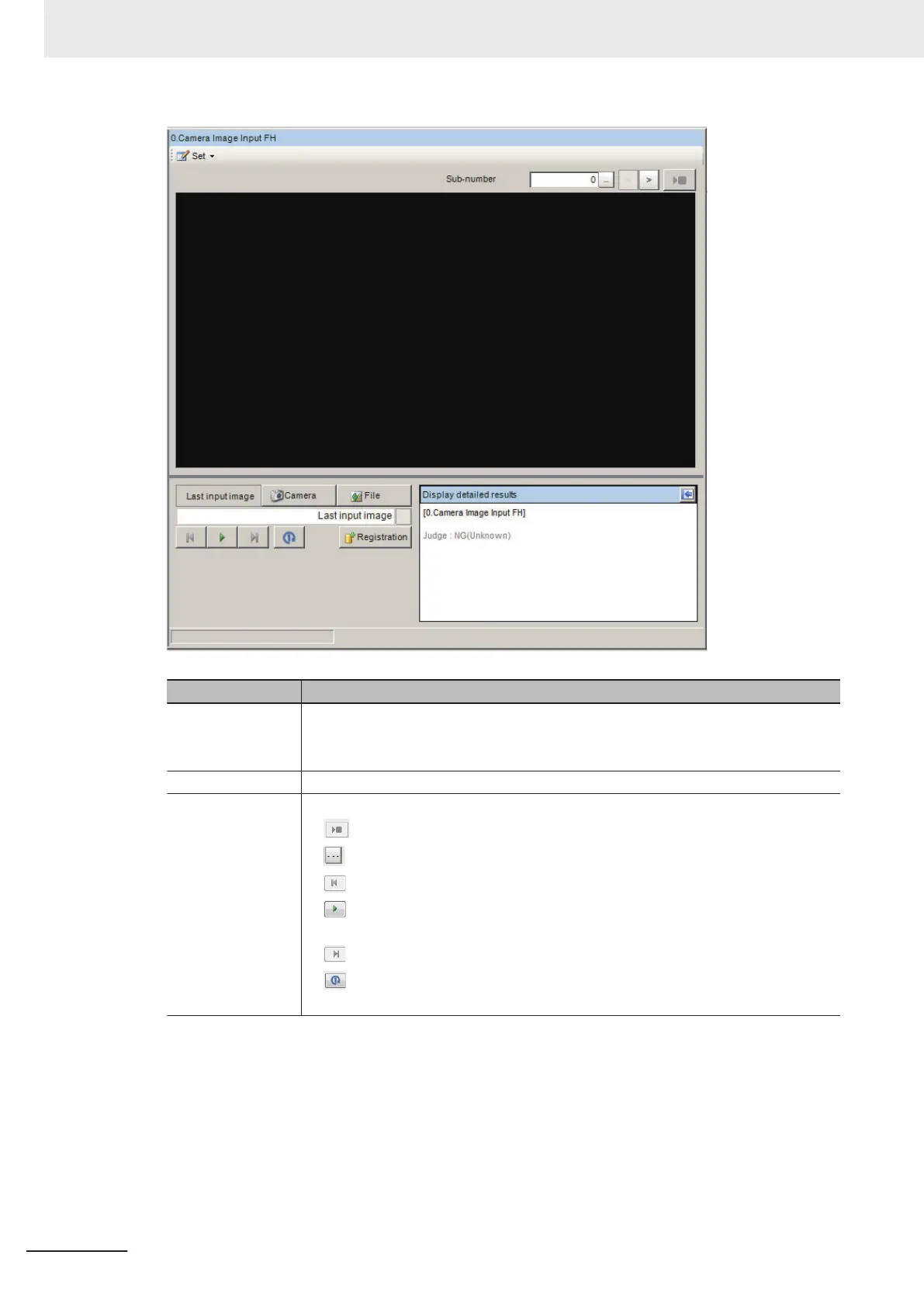

Item Description
Set button Opens the settings menu of the processing item.
• Open the unit setting UI
*1
: Displays the Editing dialog box.
• Open the unit setting old UI: Displays the legacy processing item setting screen.
Sub number Specifies a sub image number for the measurement image to display.
Last input image Performs a test measurement on the last input image.
• : Not used.
• : Not used.
•
: Not used.
• : Performs a test measurement. The results will be displayed on the image,
detailed results display area, and the Unit list (flow).
•
: Not used.
• : Performs a unit measurement. The results will be displayed on the image
and the detailed results display area.
5 Creating Measurement Scenes
5 - 18
FH/FHV Series Vision System User’s Manual (Z365-E1)
