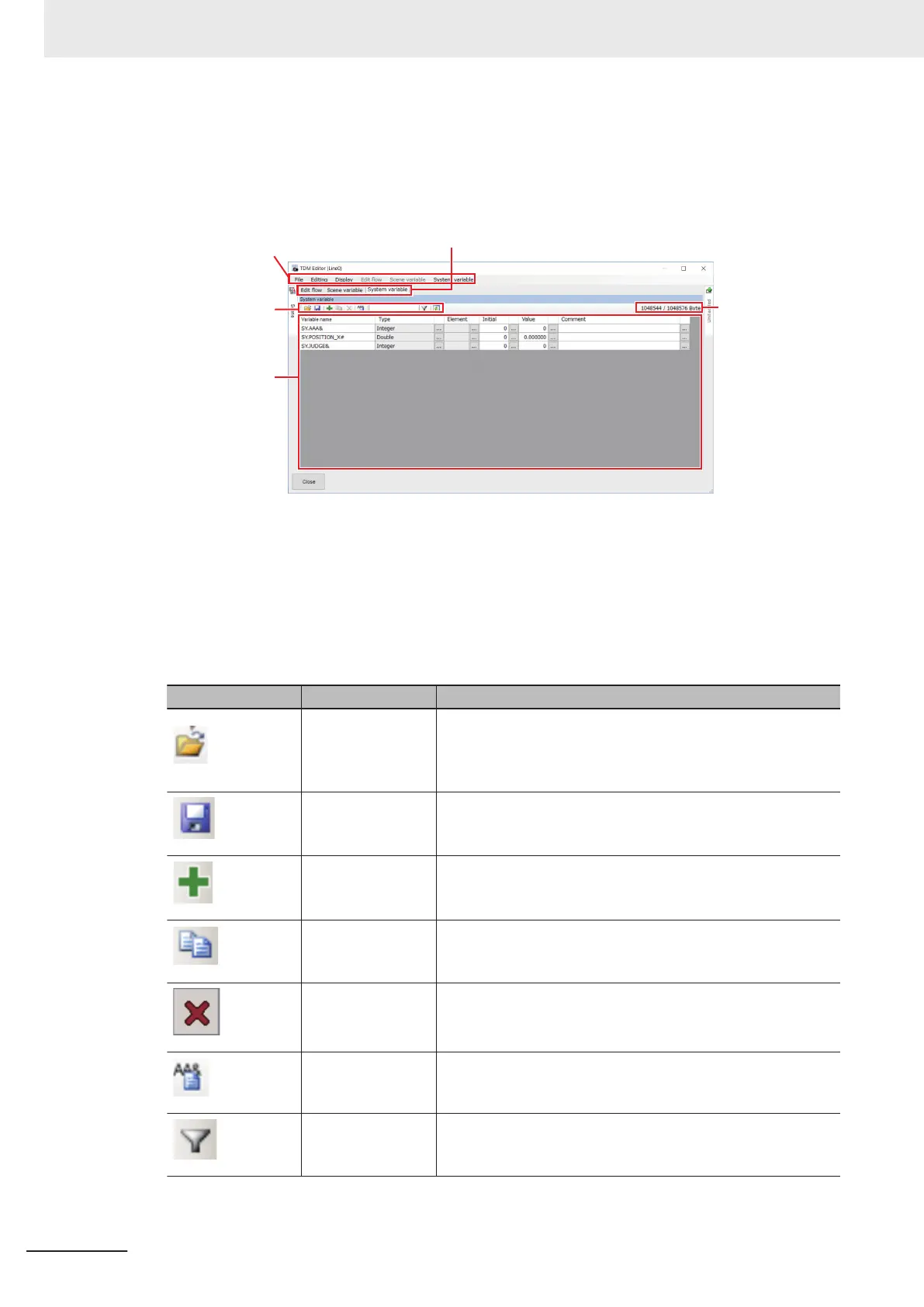

In the Scene variable tab screen, scene variables can be registered, deleted, referenced, and
changed. Assigning scene variables is performed by clicking Open the unit setting UI on the shortcut
menu of Set button on the Edit flow tab screen.
For details, refer to 5-5-4 Using Variables on page 5 - 43.
c.Menu Bar
e. Remaining
variable
definitions
b.Variable button area
d.Variable list
a.Edit item tab area
(a) Edit item tab area:
Clicking a tab switches screens among Edit flow, Scene variable, and System variable.
(b) Variable button area:
These are used to adding, copying, or deleting scene variables.
The items are the same as the shortcut menu items of Scene variable in the Menu bar and the
items displayed when the right mouse button is clicked at each variable name on the Scene varia-
ble list.
Icon Function Description
Open
Loads a list of variables from a CSV file. The variables defined
before loading will be deleted.
The selection for a CSV file to be loaded is performed with the
displayed FileExplorer.
Save
Saves a list of variables to a CSV file.
The setting for Save Destination and Name is performed with
the displayed FileExplorer.
Add
Adds a variable. The setting for the variable’s name and type
to be added is performed with the Add dialog box displayed.
Copy
Copies a variable selected on the list, while holding data ex-
cept the name. The setting for the variable name to be copied
is performed with the Copy dialog box displayed.
Delete Deletes a variable selected on the list.
Variable assign-
ment list
Displays the Variable assignment list dialog.
Filter
Sets a display filter for the Scene variable list. The setting for
the filter is performed with the Filter setting dialog
displayed.
5 Creating Measurement Scenes
5 - 20
FH/FHV Series Vision System User’s Manual (Z365-E1)
