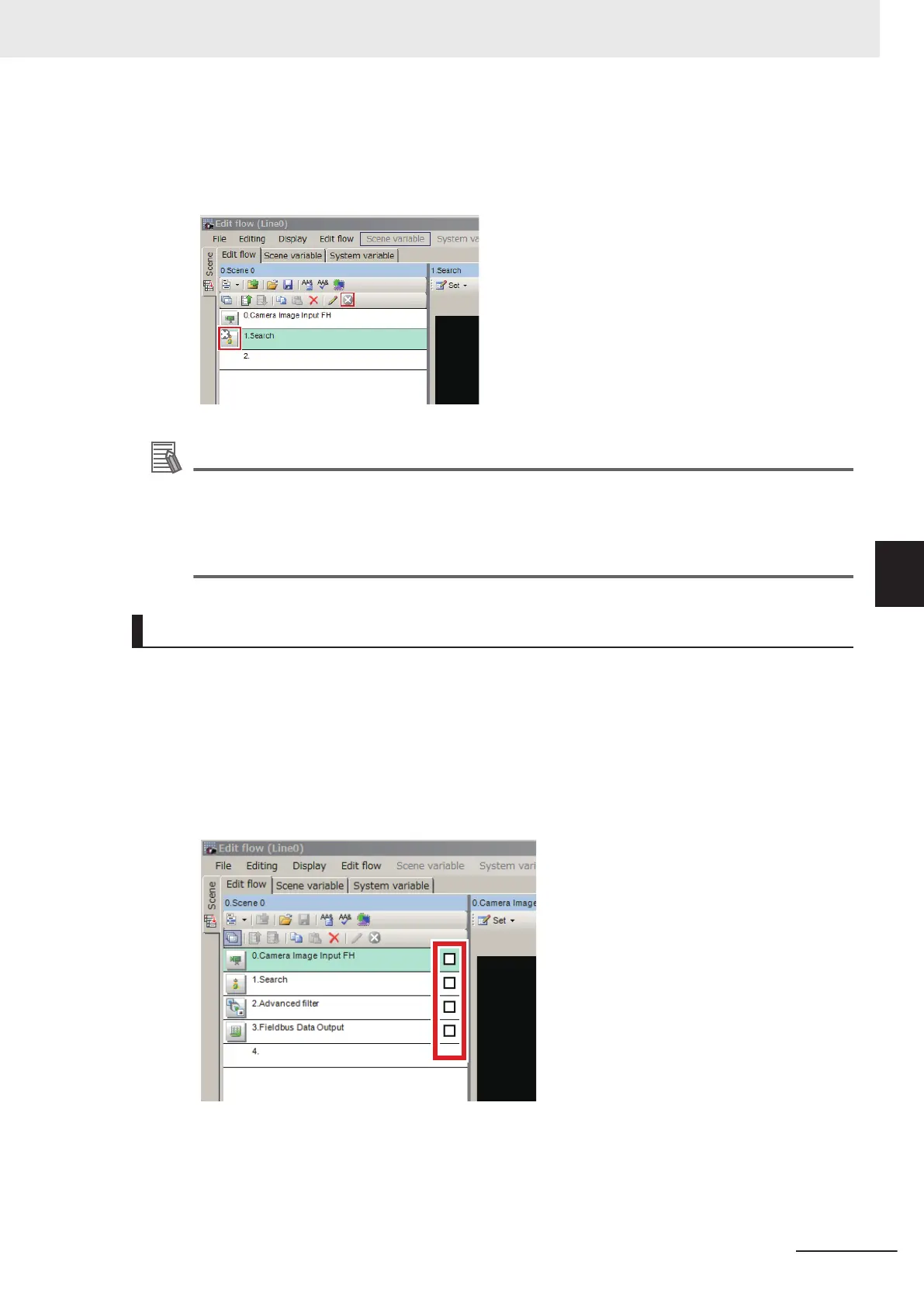

3 In the Edit flow button area, click Measurement ON/OFF.
An X is marked on the selected processing unit icon. That means that the measurement func-
tion of it is disabled. Clicking toggles the ON/OFF state of the measurement function.
Additional Information
The following operation also enables or disables the measurement function for a processing
unit.
• Click Measurement ON/OFF from Edit flow in the Menu bar.
• Right-click a processing unit on the Unit list (flow) and then click Measurement ON/OFF on
the displayed shortcut menu.
Handling Multiple Processing Units at once
This function is used when copying or deleting multiple processing units together.
1 Click the Edit flow tab. Display the Edit flow tab screen.
For more details, refer to Edit Flow Tab Screen on page 5 - 15.
2
On the Edit flow tab screen, click Multiple selection in the Edit flow button area.
A check box is displayed at the right of each processing unit on the Unit list (flow).
5 Creating Measurement Scenes
5 - 31
FH/FHV Series Vision System User’s Manual (Z365-E1)
5-5 Using Variables to Edit the Flow [TDM Editor]
5
5-5-2 Editing Processing Units in a Scene [TDM Editor]
To Next Page
