Additional Information
The following operation also enables the Multiple selection.
• Click Multiple selection from Edit flow in the Menu bar.
• Right-click a processing unit on the Unit list (flow) and then click Multiple selection on the
displayed shortcut menu.
3 Check a checkbox displayed at the right side of each processing unit on the Unit list (flow) to
select the units to be included in the Multiple selection.
4
Click Copy or Delete.
Refer to Copying/Pasting a Processing Unit on page 5 - 27 and Deleting a Processing Unit on
page 5 - 28.
Additional Information
The check is cleared when the units are either copied or deleted.

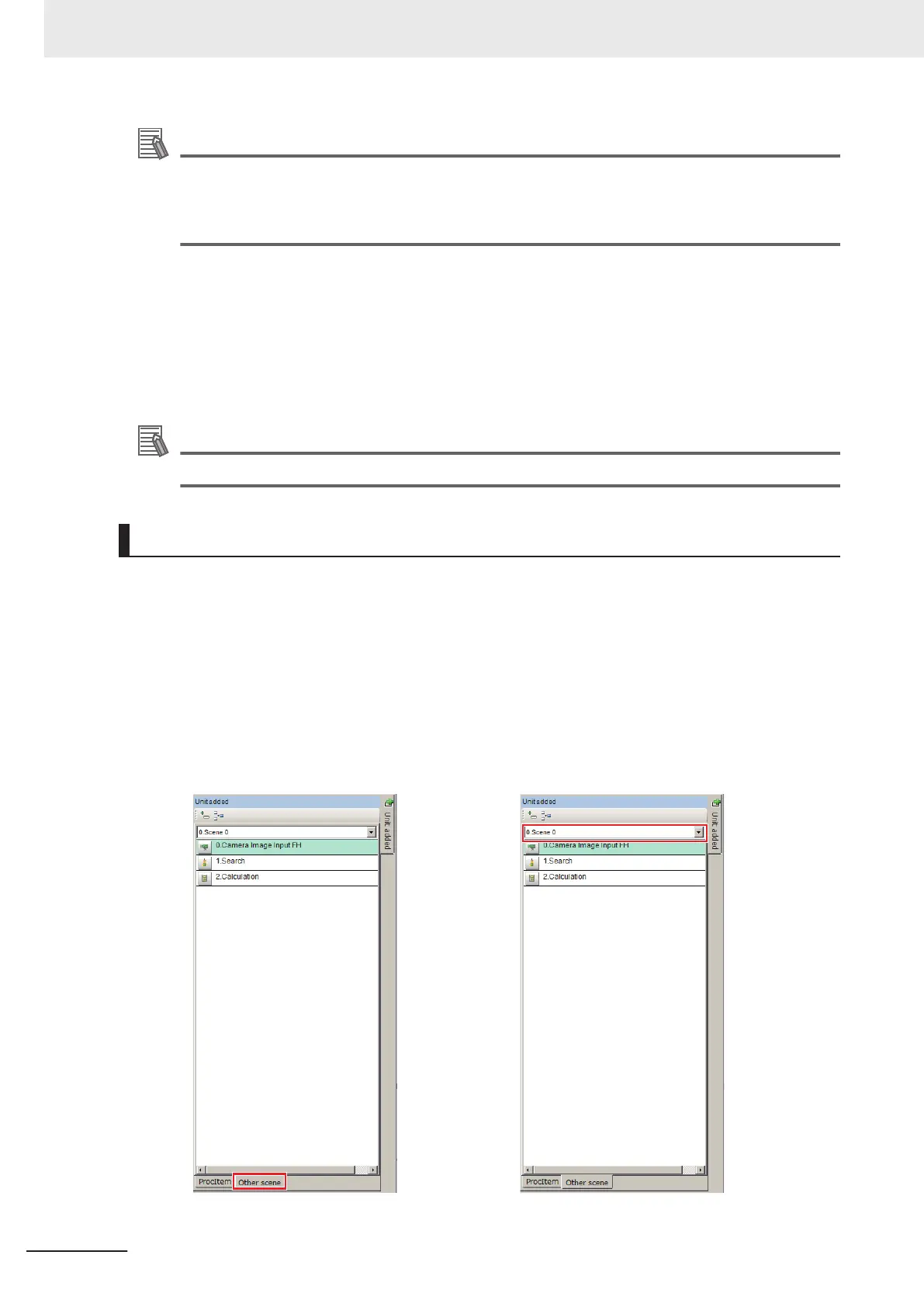

Referencing another Scene’s Flow
This is used to edit a flow by referring to another flow in a different scene.
1 Click the Edit flow tab. Display the Edit flow tab screen.
For more details, refer to Edit Flow Tab Screen on page 5 - 15.
2
Click Unit added tab.
The ProcItem list is displayed.
3
Click Other scene at the lower.
5 Creating Measurement Scenes
5 - 32
FH/FHV Series Vision System User’s Manual (Z365-E1)

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
