Omron fh series User Manual

2

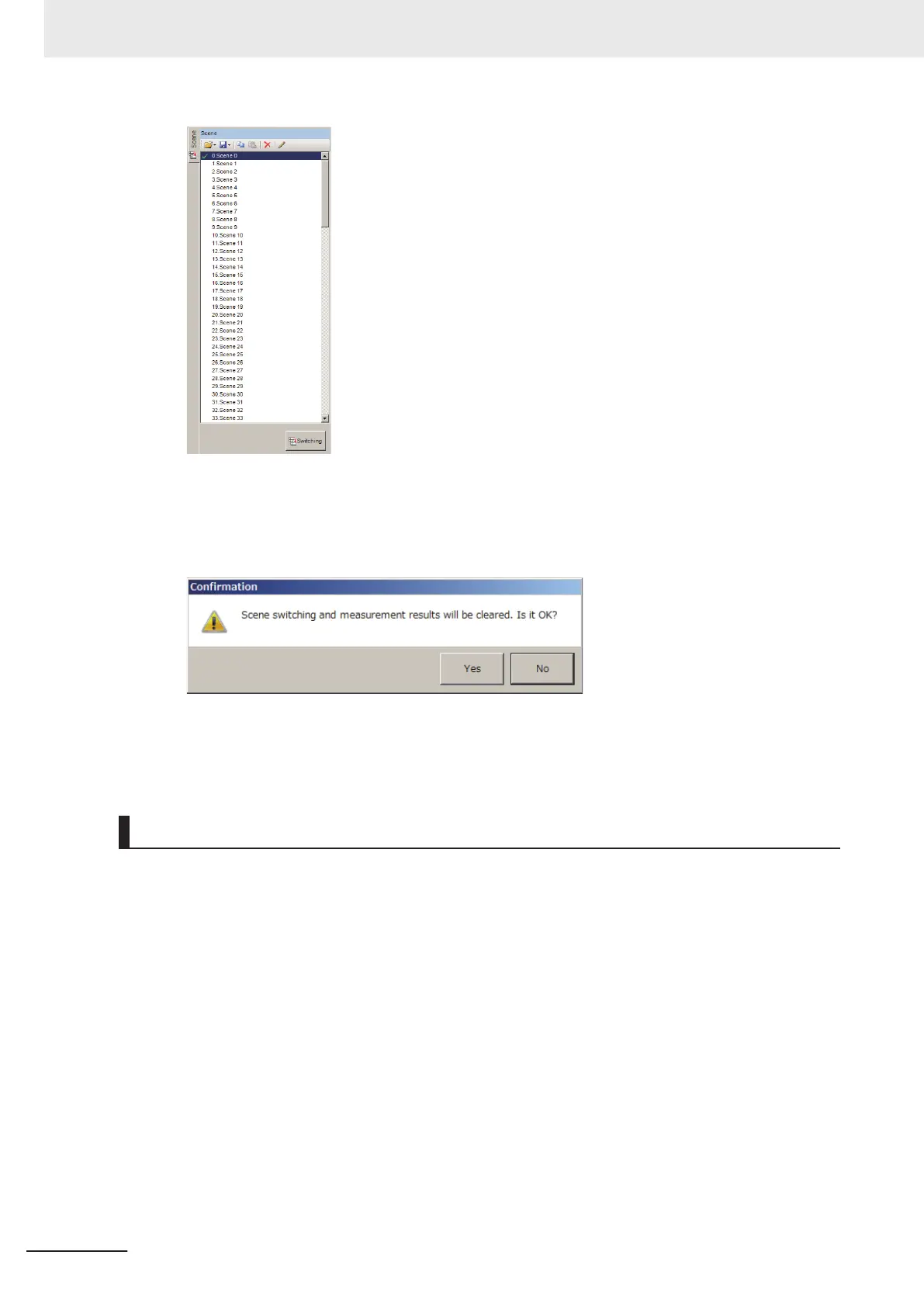

Select a scene on the scene list to switch, click Switching at the bottom of the list or double
click the selected scene.
A Confirmation dialog will be displayed.
3 Click Yes.
The current scene is switched to the selected scene.
Loading a scene
1 Select Scene tab on the TDM editor.
A list of scenes is displayed. The current scene has a check mark.
5 Creating Measurement Scenes
5 - 34
FH/FHV Series Vision System User’s Manual (Z365-E1)

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
